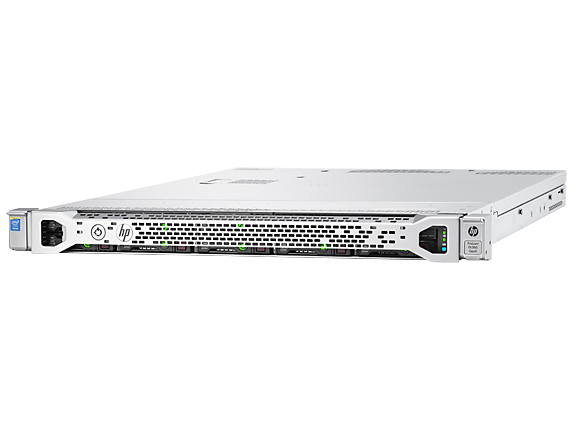

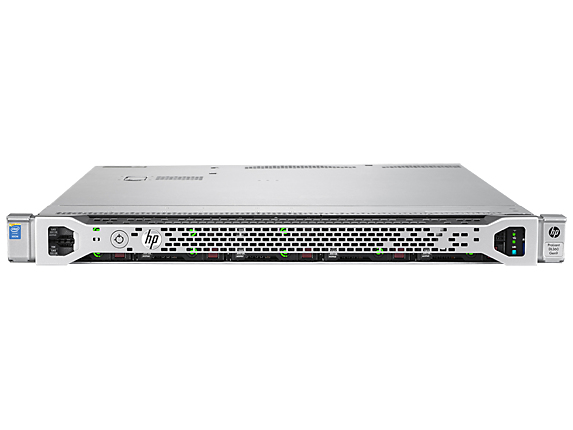

HPE ProLiant DL360 Gen9 8SFF 1U
Model HPE ProLiant DL360 Gen9 8SFF 1UPart no. T1A-S-818208-B21-EEAN 5711603070172
81 specifications
- ProcessorIntel® Xeon® E5 v4
- Memory16 GB
- Weight12.2 kg
- Processor manufacturerIntel
- Cabling technology10/100/1000Base-T(X)
- PCI Express slots version3.0
Overview
- Processor
- Intel® Xeon® E5 v4
- Memory
- 16 GB
- Weight
- 12.2 kg
- Processor manufacturer
- Intel
- Cabling technology
- 10/100/1000Base-T(X)
- PCI Express slots version
- 3.0
- Brand
- T1A
- Category
- Server
- Model
- HPE ProLiant DL360 Gen9 8SFF 1U
- Part number
- T1A-S-818208-B21-E
- EAN / UPC
- 5711603070172
- Also known as
- T1A Enterprise HPE ProLiant DL360 Gen9 8SFF 1U server Rack (1U) Intel® Xeon® E5 v4 E5-2630V4 2.2 GHz 16 GB DDR4-SDRAM 500 W
Specifications
81 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 v4 |
| Processor model | E5-2630V4 |
| Processor frequency | 2.2 GHz |
| Processor boost frequency | 3.1 GHz |
| Processor cores | 10 |
| Processor cache | 25 MB |
| Memory channels supported by processor | Quad |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 85 W |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Bus type | QPI |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 1.53 TB |
| Maximum number of PCI Express lanes | 40 |
| Memory bandwidth supported by processor (max) | 68.3 GB/s |
| Memory clock speeds supported by processor | 1600,1866,2133 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Number of QPI links | 2 |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Processor code | SR2R7 |
| Processor codename | Broadwell |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 45 x 52.5 mm |
| Processor series | Intel Xeon E5-2600 v4 |
| Processor socket | LGA 2011-v3 |
| Processor threads | 20 |
| Scalability | 2S |
| Stepping | R0 |
| Supported instruction sets | AVX 2.0 |
| Tcase | 74 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2133 MHz |
| Memory layout (slots x size) | 24 x 16 GB |
| Memory slots | 24x DIMM |
| Maximum internal memory | 384 GB |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| LAN controller | Broadcom 5720 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Rack mounting | Yes |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 92981 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply | 500 W |
| Number of redundant power supplies installed | 1 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434.7 mm |
| Depth | 275 mm |
| Height | 16.9 mm |
| Weight | 12.2 kg |
