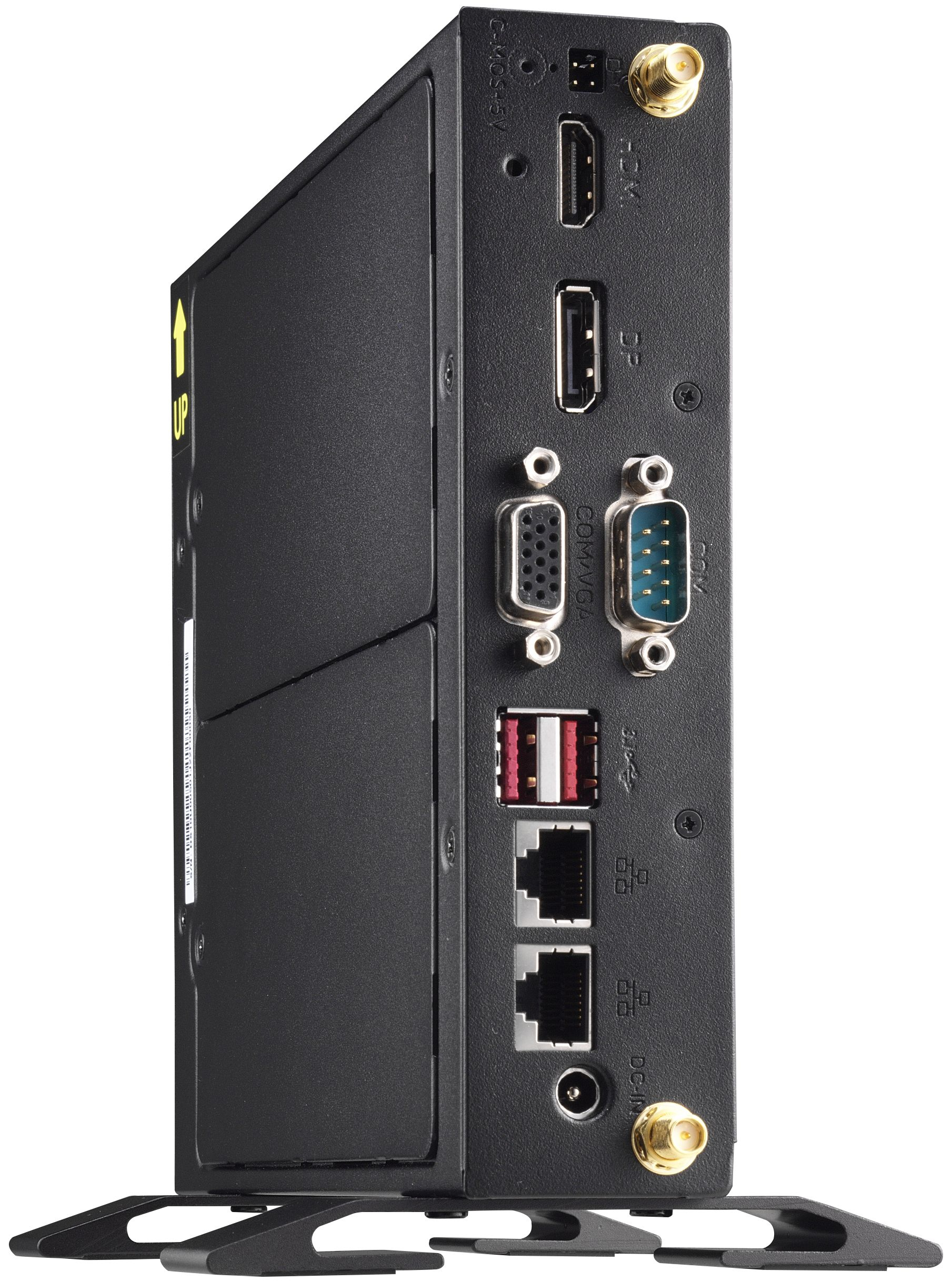

D230SRV MANAGEMENT SERVER
Model D230SRV MANAGEMENT SERVERPart no. PEV-D230SRV01EAN 4046047103621
72 specifications
- ProcessorIntel® Core™ i5
- Memory16 GB
- Storage128 GB
- OSLinux
- ColourBlack
- Processor manufacturerIntel
Overview
- Processor
- Intel® Core™ i5
- Memory
- 16 GB
- Storage
- 128 GB
- OS
- Linux
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- Shuttle
- Category
- Server
- Model
- D230SRV MANAGEMENT SERVER
- Part number
- PEV-D230SRV01
- EAN / UPC
- 4046047103621
- Also known as
- Shuttle D230SRV MANAGEMENT server 128 GB Intel® Core™ i5 i5-8265U 1.6 GHz 16 GB DDR4-SDRAM 65 W Linux
Specifications
72 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor model | i5-8265U |
| Processor frequency | 1.6 GHz |
| Processor boost frequency | 3.9 GHz |
| Processor cache | 6 MB |
| Number of processors installed | 1 |
| Configurable TDP-up frequency | 1.8 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down frequency | 0.8 GHz |
| Configurable TDP-down | 10 W |
| Bus type | OPI |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Idle States | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Maximum internal memory | 32 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| SSD size | M.2 |
| RAID support | No |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® UHD Graphics |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| LAN controller | Intel® I211 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| DisplayPorts quantity | 1 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Rack mounting | No |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Linux |
| Pre-installed software | Shuttle Management Server Software (D230) |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply | 65 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 165 mm |
| Depth | 200 mm |
| Height | 39.5 mm |
