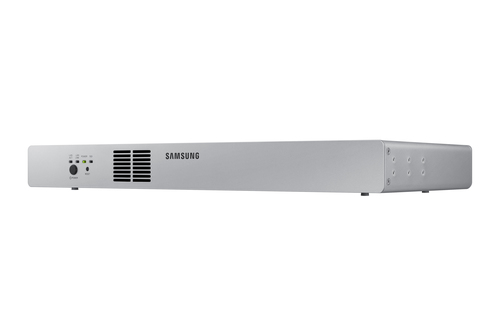

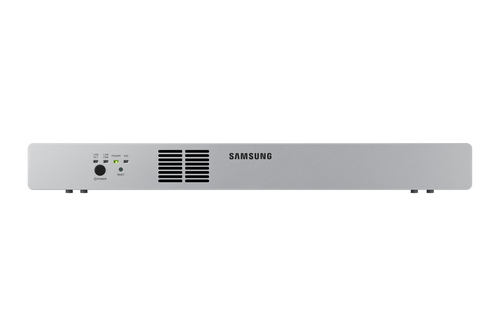

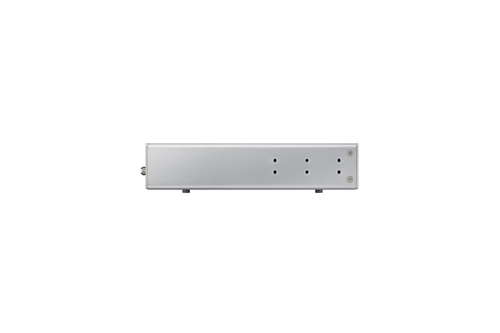

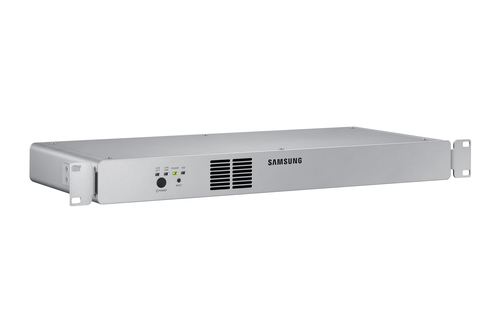

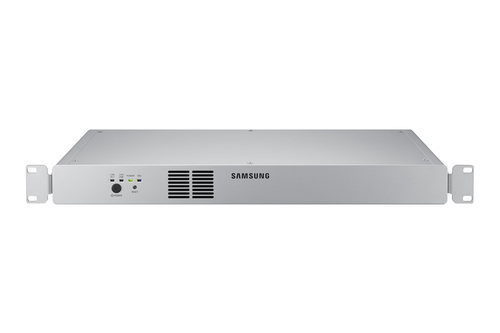

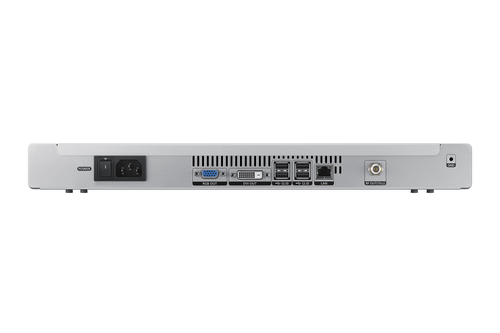

CY-HDS02A server
128 GB Rack (1U) 1.6 GHz 4 GB Windows Embedded Standard 7
Model CY-HDS02APart no. CY-HDS02A/ENEAN 8806086232494
32 specifications
- Memory4 GB
- Storage128 GB
- OSWindows Embedded Standard 7
- Weight2.6 kg
- ColourSilver
- Processor manufacturerAMD
Overview
- Memory
- 4 GB
- Storage
- 128 GB
- OS
- Windows Embedded Standard 7
- Weight
- 2.6 kg
- Colour
- Silver
- Processor manufacturer
- AMD
- Brand
- Samsung
- Category
- Server
- Model
- CY-HDS02A
- Part number
- CY-HDS02A/EN
- EAN / UPC
- 8806086232494
- Also known as
- Samsung CY-HDS02A server 128 GB Rack (1U) 1.6 GHz 4 GB Windows Embedded Standard 7
Specifications
32 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor frequency | 1.6 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | AMD Radeon HD 6000 |
| On-board graphics card model | AMD Radeon HD 6320 |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| Power cables quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Silver |
| Rack mounting | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Embedded Standard 7 |
Power
| Specification | Value |
|---|---|
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
| Power consumption (typical) | 50 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 477.6 mm |
| Depth | 46 mm |
| Height | 200.8 mm |
| Weight | 2.6 kg |
| Package width | 521 mm |
| Package depth | 98 mm |
| Package height | 278 mm |
| Package weight | 3.4 kg |
