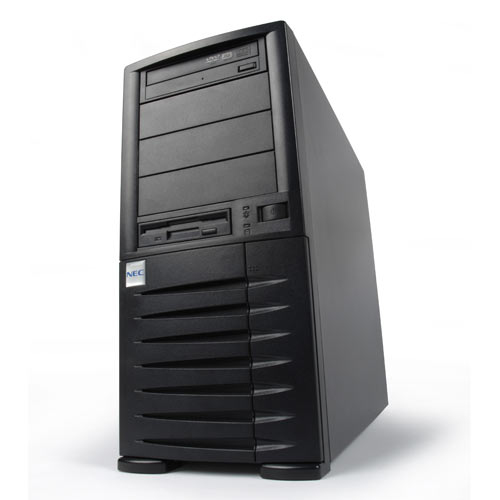

NEC SI1520 server
320 GB Tower (5U) Intel® Xeon® 3065 2.33 GHz 1 GB DDR2-SDRAM
Model SI1520Part no. EA6NWHE-0009Z05
82 specifications
- ProcessorIntel® Xeon®
- Memory1 GB
- Storage320 GB
- Connectivity2 Gigabit Ethernet
- Weight15 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon®
- Memory
- 1 GB
- Storage
- 320 GB
- Connectivity
- 2 Gigabit Ethernet
- Weight
- 15 kg
- Processor manufacturer
- Intel
- Brand
- NEC
- Category
- Server
- Model
- SI1520
- Part number
- EA6NWHE-0009Z05
- Also known as
- NEC SI1520 server 320 GB Tower (5U) Intel® Xeon® 3065 2.33 GHz 1 GB DDR2-SDRAM
Specifications
82 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | 3065 |
| Processor frequency | 2.33 GHz |
| Processor cores | 2 |
| Processor cache | 4 MB |
| Motherboard chipset | Intel® 3210 |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 65 W |
| Processor cache type | L2 |
| Bus type | FSB |
| CPU multiplier (bus/core ratio) | 7 |
| ECC supported by processor | No |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Number of Processing Die Transistors | 291 M |
| Processing Die size | 143 mm² |
| Processor codename | Conroe |
| Processor front side bus | 1333 MHz |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon 3000 Series |
| Processor socket | LGA 775 (Socket T) |
| Processor threads | 2 |
| Tcase | 72 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Internal memory type | DDR2-SDRAM |
| Memory layout (slots x size) | 1 x 1 GB |
| Memory slots | 4 |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 320 GB |
| Number of HDDs installed | 2 |
| HDD capacity | 160 GB |
| HDD interface | Serial ATA II |
| Optical drive type | DVD-RW |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 32 MB |
Network
| Specification | Value |
|---|---|
| Network ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | 2 Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 5 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Supports EPP and ECP | Yes |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower (5U) |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows ServerTM 2003 R2 SP2 (x64, x86), Red Hat LinuxTM EL 4.5, EL 5.1, Fedora, Debian, Mandriva CS 4.0,Novell Suse SLES 10 |
| Bundled software | Embedded IMPI 2.0 Management Controller, Syam System Area Management Made SimpleTM, Microsoft System Center Essentials Suite, ExpressBuilder |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 30775 |
Power
| Specification | Value |
|---|---|
| Number of power supply units | 1 |
| Power consumption (typical) | 400 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 15 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 425 x 198 x 465 mm |
What people say
Reviews & ratings
NEC SI1520 server
No reviews yet
Be the first to tell others how NEC SI1520 server works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare NEC SI1520 server
All server comparisons- NEC SI1520 server vsNEC SI series SI1720 serverCompare specs
- NEC SI1520 server vsNEC Express5800 GT110b server Tower Intel® Xeon® 3000 Sequence X3430Compare specs
- NEC SI1520 server vsNEC Express5800 120Eh-2Compare specs
- NEC SI1520 server vsNEC Express5800/320Fa-LR server Rack (4U) Intel® Xeon®Compare specs
- NEC SI1520 server vsFujitsu Primergy RX300S3Compare specs
- NEC SI1520 server vsFujitsu PRIMERGY RX100 S4 + Windows Small Business Server 2003 Standard EditionCompare specs

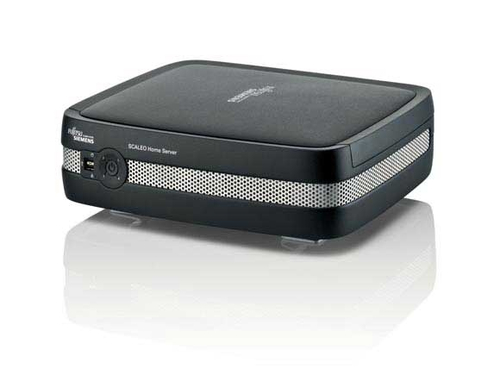

- NEC SI1520 server vsFujitsu SCALEO Home ServerCompare specs
