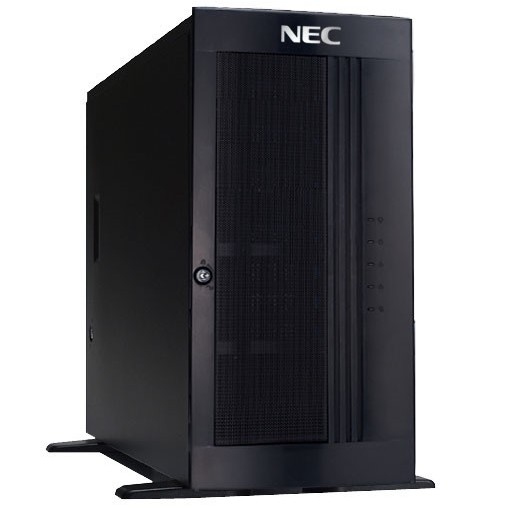

NEC SA2500, NL
Model SA2500, NLPart no. E78N7TF-0004Z-05
35 specifications
- ProcessorAMD Opteron
- Memory1 GB
- Storage73 GB
- Weight11 kg
- Networking featuresGigabit Ethernet
- Ethernet LAN (RJ-45) ports1
Overview
- Processor
- AMD Opteron
- Memory
- 1 GB
- Storage
- 73 GB
- Weight
- 11 kg
- Networking features
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- NEC
- Category
- Server
- Model
- SA2500, NL
- Part number
- E78N7TF-0004Z-05
- Also known as
- NEC SA2500, NL server Mini Tower AMD Opteron 2 GHz 1 GB DDR-SDRAM
Specifications
35 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor family | AMD Opteron |
| Processor frequency | 2 GHz |
| Processor cache | 1 MB |
| Number of processors installed | 1 |
| Processor cache type | L2 |
| Maximum number of SMP processors | 2 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Internal memory type | DDR-SDRAM |
| Memory layout (slots x size) | 2 x 0.5 GB |
| Memory slots | 6x DIMM |
| Maximum internal memory | 12 GB |
Storage
| Specification | Value |
|---|---|
| HDD capacity | 73 GB |
| HDD interface | SCSI |
| Optical drive type | DVD-ROM |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 6 |
| Firewire (IEEE 1394) ports | 1 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Expansion slots | 1x PCI-EXPRESS X16 1x PCI-EXPRESS X1 2x PCI 32-bit/33MHz |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2003 Windows SBS 2003 Red Hat Enterprise Linux 3.0 |
| Bundled software | ExpressBuilder |
Power
| Specification | Value |
|---|---|
| Power requirements | 110/220V; 50/60Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 425 mm |
| Depth | 198 mm |
| Height | 465 mm |
| Weight | 11 kg |
Other features
| Specification | Value |
|---|---|
| Hot-swap HDD bays | 4 |
| Security features | 2 Level Password |
| Storage drive controller | SCSI Ultra 320 |
| Power availability | 550 W |
