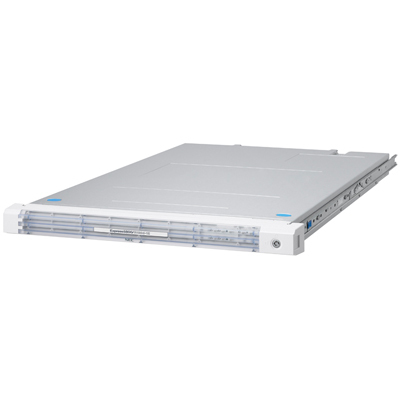

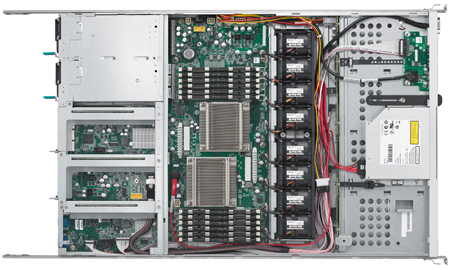

NEC Express5800 R120e-1E server
0 GB Rack (1U) DDR3-SDRAM 800 W
Model R120e-1EPart no. N8100-2143F
43 specifications
- Storage0 GB
- Weight18 kg
- Processor manufacturerIntel
- Internal memory typeDDR3-SDRAM
- Maximum storage capacity16 TB
- Wi-FiNo
Overview
- Storage
- 0 GB
- Weight
- 18 kg
- Processor manufacturer
- Intel
- Internal memory type
- DDR3-SDRAM
- Maximum storage capacity
- 16 TB
- Wi-Fi
- No
- Brand
- NEC
- Category
- Server
- Model
- R120e-1E
- Part number
- N8100-2143F
- Also known as
- NEC Express5800 R120e-1E server 0 GB Rack (1U) DDR3-SDRAM 800 W
Specifications
43 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Motherboard chipset | Intel C602A |
| Number of processors installed | 0 |
| Compatible processor series | Intel® Xeon® |
Memory
| Specification | Value |
|---|---|
| Internal memory type | DDR3-SDRAM |
| Memory slots | 12 |
| Maximum internal memory | 384 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 16 TB |
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| HDD size | 2.5" |
| RAID support | Yes |
| Hot-Plug support | Yes |
| Optical drive type | No |
| Supported storage drive interfaces | SAS, Serial ATA |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| VGA (D-Sub) ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 2.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Rack mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Performance management | EXPRESSSCOPE Engine 3 |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows Server 2008 Standard Microsoft Windows Server 2008 Enterprise Microsoft Windows Server 2008 R2 Standard Microsoft Windows Server 2008 R2 Enterprise Microsoft Windows Server 2012 Standard Microsoft Windows Server 2012 Datacenter Microsoft Windows Server 2012 R2 Standard Microsoft Wi |
| Bundled software | EXPRESSBUILDER DVD |
Power
| Specification | Value |
|---|---|
| Power supply | 800 W |
| Number of main power supplies | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 40 °C |
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 439.8 mm |
| Depth | 682.1 mm |
| Height | 43.4 mm |
| Weight | 18 kg |
Other features
| Specification | Value |
|---|---|
| Fibre Channel | No |
What people say
Reviews & ratings
NEC Express5800 R120e-1E server
No reviews yet
Be the first to tell others how NEC Express5800 R120e-1E server works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare NEC Express5800 R120e-1E server
All server comparisons- NEC Express5800 R120e-1E server vsNEC Express5800 GT110d serverCompare specs
- NEC Express5800 R120e-1E server vsNEC Express5800 R120b-2 server Rack (2U) Intel® Xeon® 5000 Sequence E5503Compare specs

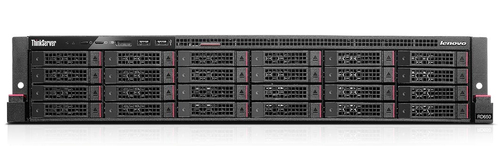

- NEC Express5800 R120e-1E server vsLenovo ThinkServer RD650 serverCompare specs

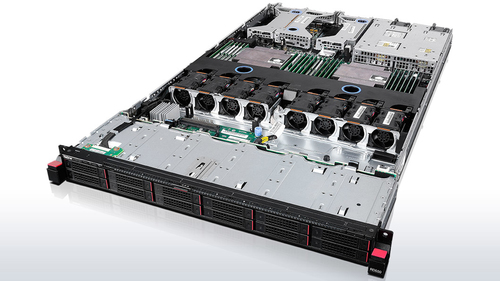

- NEC Express5800 R120e-1E server vsLenovo ThinkServer RD550 serverCompare specs

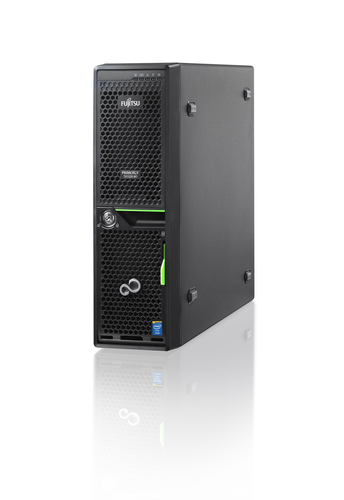

- NEC Express5800 R120e-1E server vsFujitsu TX1320 M1Compare specs

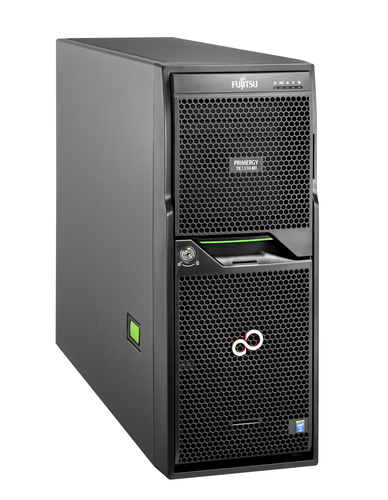

- NEC Express5800 R120e-1E server vsFujitsu TX1330 M1Compare specs
