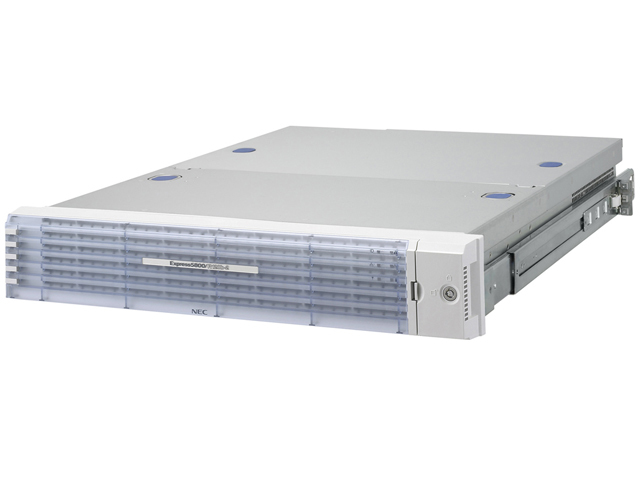

NEC Express5800 R120b-2 server Rack (2U) Intel® Xeon® 5000 Sequence E5503

2 GHz DDR3-SDRAM 750 W

Model R120b-2Part no. N8100-1716F

119 specifications

ProcessorIntel® Xeon® 5000 Sequence
Noise54.1 dB
OSNo
Weight21 kg
Processor manufacturerIntel
Internal memory typeDDR3-SDRAM

See all specifications

Overview

Processor: Intel® Xeon® 5000 Sequence
Noise: 54.1 dB
OS: No
Weight: 21 kg
Processor manufacturer: Intel
Internal memory type: DDR3-SDRAM

Brand: NEC
Category: Server
Model: R120b-2
Part numbers: N8100-1716F, N8100-1706F, N8100-1707F, N8100-1708F, N8100-1709F, N8100-1711F +4 more
Also known as: NEC Express5800 R120b-2 server Rack (2U) Intel® Xeon® 5000 Sequence E5503 2 GHz DDR3-SDRAM 750 W

Specifications

119 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 5000 Sequence
Processor model	E5503
Processor frequency	2 GHz
Processor cores	2
Processor cache	4 MB
Motherboard chipset	Intel® 5520
Memory channels supported by processor	Triple
Number of processors installed	1
Thermal Design Power (TDP)	80 W
Processor cache type	Smart Cache
System bus rate	4.8 GT/s
Bus type	QPI
CPU multiplier (bus/core ratio)	15
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	144 GB
Maximum number of SMP processors	2
Memory bandwidth supported by processor (max)	19.2 GB/s
Memory clock speeds supported by processor	800 MHz
Memory types supported by processor	DDR3-SDRAM
Number of QPI links	2
Physical Address Extension (PAE)	40 bit
Physical Address Extension (PAE)	Yes
Processor code	SLBKD
Processor codename	Nehalem EP
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	42.5 x 45 mm
Processor series	Intel Xeon 5500 Series
Processor socket	Socket B (LGA 1366)
Processor threads	2
Stepping	D0
Tcase	76 °C
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Memory

Specification	Value
Internal memory type	DDR3-SDRAM
ECC	Yes
Memory clock speed	1333 MHz
Memory slots	12
Maximum internal memory	192 GB

Storage

Specification	Value
Maximum storage capacity	12 TB
HDD interface	Serial ATA II, Serial Attached SCSI (SAS)
HDD size	2.5"
Number of HDDs supported	12
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50
Hot-swap	Yes
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Maximum graphics card memory	32 MB

Network

Specification	Value
Network ready	Yes
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	3
USB 2.0 ports quantity	8
Number of SATA II connectors	12
Number of slots	6
PS/2 ports quantity	2
Serial ports quantity	1
VGA (D-Sub) ports quantity	2

Expansion slots

Specification	Value
PCI Express x4 slots	2
PCI Express x8 slots	4
PCI Express slots version	2.0

Design

Specification	Value
Chassis type	Rack (2U)
Rack mounting	Yes

Performance

Specification	Value
Noise level	54.1 dB

Software

Specification	Value
Operating system installed	No
Compatible operating systems	Microsoft Windows Server 2003, Standard Edition (SP1) Microsoft Windows Server 2003, Enterprise Edition (SP1) Microsoft Windows Server 2003 R2, Standard Edition Microsoft Windows Server 2003 R2, Enterprise Edition Microsoft Windows Server 2003 R2, Standard x64 Edition Microsoft Windows Server 2003 R
Bundled software	EXPRESSSCOPE Engine 2

Processor special features

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	37094

Power

Specification	Value
Redundant power supply (RPS) support	Yes
Power supply	750 W
Power consumption (typical)	540 W

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	20 - 80%

Certificates

Specification	Value
Certification	FCC, CE, BSMI, CCC, UL, CB, RoHS, WEEE

Weight & dimensions

Specification	Value
Width	445.2 mm
Depth	721.2 mm
Height	86.7 mm
Weight	21 kg

Packaging content

Specification	Value
Keyboard included	No
Mouse included	No

Other features

Specification	Value
Power consumption (standby)	251 W
Mac compatibility	No
Memory slots (available)	12
Quantity	1
