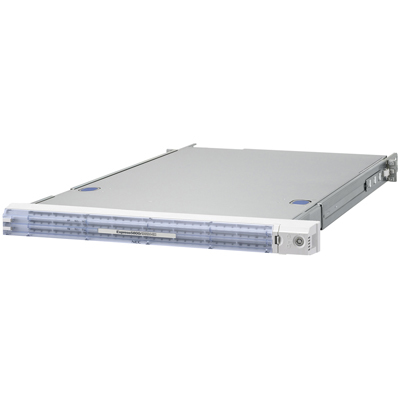

NEC Express5800 R120B-1 server Rack (1U) Intel® Xeon® 5000 Sequence E5606

2.13 GHz DDR3-SDRAM 650 W

Model R120B-1Part no. N8100-1726F

116 specifications

ProcessorIntel® Xeon® 5000 Sequence
Noise54.6 dB
OSNo
Weight16 kg
Processor manufacturerIntel
Internal memory typeDDR3-SDRAM

See all specifications

Overview

Processor: Intel® Xeon® 5000 Sequence
Noise: 54.6 dB
OS: No
Weight: 16 kg
Processor manufacturer: Intel
Internal memory type: DDR3-SDRAM

Brand: NEC
Category: Server
Model: R120B-1
Part numbers: N8100-1726F, N8100-1717F, N8100-1718F, N8100-1719F, N8100-1720F, N8100-1721F +4 more
Also known as: NEC Express5800 R120B-1 server Rack (1U) Intel® Xeon® 5000 Sequence E5606 2.13 GHz DDR3-SDRAM 650 W

Specifications

116 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 5000 Sequence
Processor model	E5606
Processor frequency	2.13 GHz
Processor cores	4
Processor cache	8 MB
Motherboard chipset	Intel® 5520
Memory channels supported by processor	Triple
Number of processors installed	1
Thermal Design Power (TDP)	80 W
Processor cache type	Smart Cache
System bus rate	4.8 GT/s
Bus type	QPI
CPU multiplier (bus/core ratio)	16
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	288 GB
Maximum number of SMP processors	2
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory clock speeds supported by processor	800,1066 MHz
Memory types supported by processor	DDR3-SDRAM
Number of QPI links	2
Physical Address Extension (PAE)	40 bit
Processor code	SLC2N
Processor codename	Westmere EP
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	42.5 X 45 mm
Processor series	Intel Xeon 5600 Series
Processor socket	Socket B (LGA 1366)
Processor threads	4
Stepping	B1
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Memory

Specification	Value
Internal memory type	DDR3-SDRAM
ECC	Yes
Memory slots	12
Maximum internal memory	192 GB

Storage

Specification	Value
Maximum storage capacity	6 TB
HDD interface	Serial ATA II, Serial Attached SCSI (SAS)
Number of HDDs supported	6
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50
Hot-swap	Yes
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Maximum graphics card memory	32 MB

Network

Specification	Value
Network ready	Yes
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	3
USB 2.0 ports quantity	8
Number of SATA II connectors	6
Number of slots	3
PS/2 ports quantity	2
Serial ports quantity	1
VGA (D-Sub) ports quantity	2

Expansion slots

Specification	Value
PCI Express x4 slots	1
PCI Express x8 slots	1
PCI Express x16 slots	1
PCI Express slots version	2.0

Design

Specification	Value
Chassis type	Rack (1U)
Rack mounting	Yes

Performance

Specification	Value
Noise level	54.6 dB

Software

Specification	Value
Operating system installed	No
Compatible operating systems	Microsoft Windows Server 2003, Standard Edition (SP1) Microsoft Windows Server 2003, Enterprise Edition (SP1) Microsoft Windows Server 2003 R2, Standard Edition Microsoft Windows Server 2003 R2, Enterprise Edition Microsoft Windows Server 2003 R2, Standard x64 Edition Microsoft Windows Server 2003 R
Bundled software	EXPRESSSCOPE Engine 2

Processor special features

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	52583

Power

Specification	Value
Power supply	650 W
Power consumption (typical)	460 W

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	20 - 80%

Certificates

Specification	Value
Certification	FCC, CE, BSMI, CCC, UL, CB, RoHS, WEEE

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Width	722 mm
Depth	722 mm
Height	43.5 mm
Weight	16 kg

Packaging content

Specification	Value
Keyboard included	No
Mouse included	No

Other features

Specification	Value
Power consumption (standby)	243 W
Memory slots (available)	12
Quantity	1
