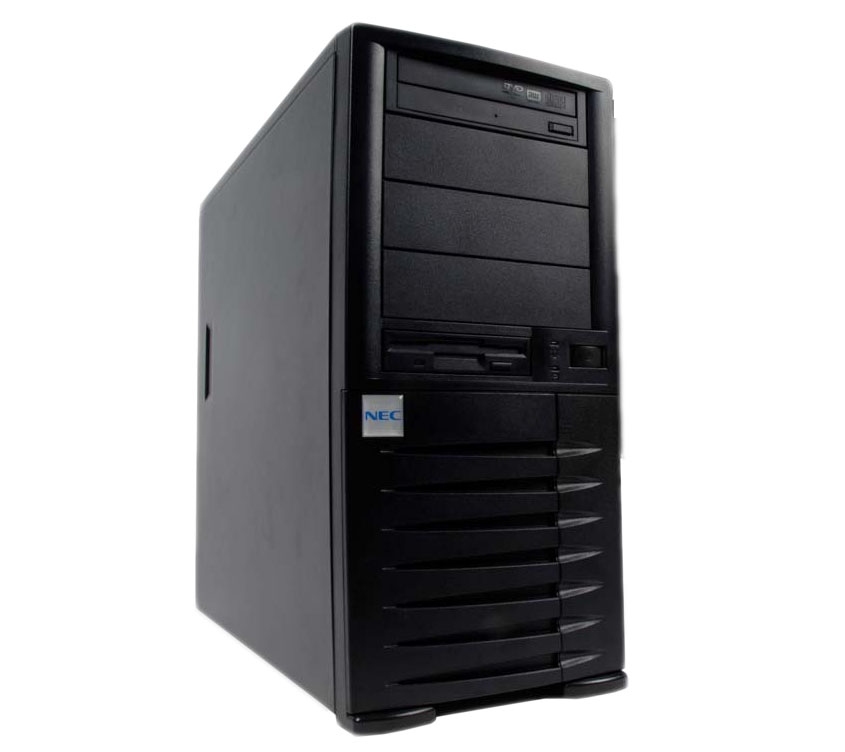

NEC Express5800 TM800, NL
Model Express5800 TM800, NLPart no. E73N6GL-0004Z-05
38 specifications
- ProcessorIntel® Pentium® D
- Memory1 GB
- Storage160 GB
- Weight11 kg
- Networking features2-ch Gigabit Ethernet
- Ethernet LAN (RJ-45) ports2
Overview
- Processor
- Intel® Pentium® D
- Memory
- 1 GB
- Storage
- 160 GB
- Weight
- 11 kg
- Networking features
- 2-ch Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- NEC
- Category
- Server
- Model
- Express5800 TM800, NL
- Part numbers
- E73N6GL-0004Z-05, E74N6GF-0004Z-05, E73NDMU-0004Z05, E74NSDY-0004Z05, E73NDMU-0004Z13
- Also known as
- NEC Express5800 TM800, NL server Tower Intel® Pentium® D 2.8 GHz 1 GB DDR2-SDRAM
Specifications
38 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Pentium® D |
| Processor frequency | 2.8 GHz |
| Number of processors installed | 1 |
| Processor front side bus | 800 MHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Internal memory type | DDR2-SDRAM |
| Memory slots | 4x DIMM |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| HDD capacity | 160 GB |
| HDD interface | Serial ATA II |
| Optical drive type | DVD-ROM |
Network
| Specification | Value |
|---|---|
| Networking features | 2-ch Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 6 |
| Firewire (IEEE 1394) ports | 1 |
| PS/2 ports quantity | 2 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Expansion slots | 3x PCI 1x PCI Express X1 1x PCI Express X4 1x PCI Express X16 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2003 Windows SBS 2003 Red Hat Enterprise Linux 3.0 Mandriva CS 3.0 |
| Bundled software | ExpressBuilder |
Power
| Specification | Value |
|---|---|
| Power supply type | PFC |
| Number of power supply units | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 198 mm |
| Depth | 465 mm |
| Height | 425 mm |
| Weight | 11 kg |
Other features
| Specification | Value |
|---|---|
| Internal mass storage | max: 2.0TB |
| Hot-swap HDD bays | 3 |
| Security features | 2 level password |
| Power availability | 400 W |
| Diskette drive memory | 1.44 MB |
| Standard fans | 3 |
| Technical features | 5.1 Audio |
