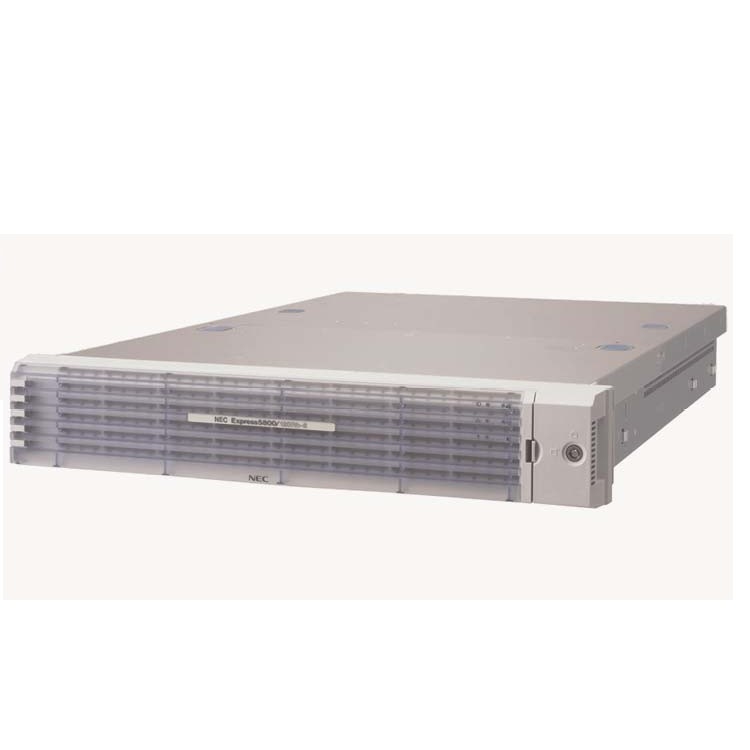

NEC Express5800 120Rh-2, NL
Model Express5800 120Rh-2, NLPart no. E65N81J-0002Z-05
36 specifications
- ProcessorIntel® Xeon®
- Memory1 GB
- Storage73 GB
- Weight21 kg
- Maximum graphics card memory16 MB
- Networking features2-ch. Gigabit Ethernet
Overview
- Processor
- Intel® Xeon®
- Memory
- 1 GB
- Storage
- 73 GB
- Weight
- 21 kg
- Maximum graphics card memory
- 16 MB
- Networking features
- 2-ch. Gigabit Ethernet
- Brand
- NEC
- Category
- Server
- Model
- Express5800 120Rh-2, NL
- Part number
- E65N81J-0002Z-05
- Also known as
- NEC Express5800 120Rh-2, NL server Rack Intel® Xeon® 2.8 GHz 1 GB DDR2-SDRAM
Specifications
36 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® |
| Processor frequency | 2.8 GHz |
| Processor cache | 2 MB |
| Motherboard chipset | Intel® E7520 |
| Number of processors installed | 1 |
| Processor cache type | L2 |
| Processor front side bus | 800 MHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Internal memory type | DDR2-SDRAM |
| Memory slots | 8x DIMM |
| Maximum internal memory | 12 GB |
Storage
| Specification | Value |
|---|---|
| HDD capacity | 73 GB |
| HDD interface | SCSI |
| Hot-swap | Yes |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 16 MB |
Network
| Specification | Value |
|---|---|
| Networking features | 2-ch. Gigabit Ethernet |
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 4 |
| PS/2 ports quantity | 1 |
| Serial ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Expansion slots | 3x PCI-X 64bit/66MHz 3x 64-bit/66-100MHz |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2003 (Std / Ent) Windows 2000 Server / Advanced Server Red Hat Linux |
| Bundled software | ESMPRO Management Suite ExpressBuilder Configuration Software |
Power
| Specification | Value |
|---|---|
| Power supply type | HotSwap, PFC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Certificates
| Specification | Value |
|---|---|
| Certification | UL, FCC, CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 483 mm |
| Depth | 835 mm |
| Height | 88 mm |
| Weight | 21 kg |
Other features
| Specification | Value |
|---|---|
| Storage drive controller | 2-channel U320 SCSI + HostRAID |
| Power availability | 600 W |
