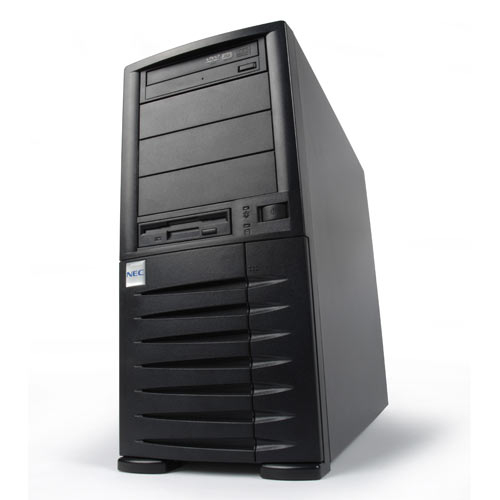

NEC Express5800 120Eh-2

Model Express5800 120Eh-2Part no. E85N1MD-0005F02

93 specifications

Overview

Brand: NEC
Category: Server
Model: Express5800 120Eh-2
Part numbers: E85N1MD-0005F02, E85NSD4-0004Z40, E85NAC2-0005Z13
Also known as: NEC Express5800 120Eh-2 server Tower Intel® Xeon® 5050 3 GHz 2 GB DDR2-SDRAM

93 specifications in 13 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon®
Processor model	5050
Processor frequency	3 GHz
Processor cores	2
Processor cache	4 MB
Motherboard chipset	Intel® 5000V
Number of processors installed	1
Thermal Design Power (TDP)	95 W
Processor cache type	L2
Bus type	FSB
CPU multiplier (bus/core ratio)	18
ECC supported by processor	No
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	Yes
Idle States	No
Maximum number of SMP processors	2
Number of Processing Die Transistors	376 M
Processing Die size	162 mm²
Processor codename	Dempsey
Processor core voltage (AC)	1.25 - 1.40 V
Processor front side bus	667 MHz
Processor lithography	65 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon 5000 Series
Processor socket	LGA 771 (Socket J)
Processor system type	DP
Processor threads	4
Tcase	67 °C
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Specification	Value
Maximum graphics card memory	16 MB

Specification	Value
Networking features	Dual Gigabit Ethernet
Wake-on-LAN ready	Yes

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	6
PS/2 ports quantity	2
Serial ports quantity	1
VGA (D-Sub) ports quantity	1
Expansion slots	2x PCI-Express x4/x8 2x PCI-X 64bit/133MHz 1x PCI 32bit/33MHz PCI

Specification	Value
Chassis type	Tower

Specification	Value
Compatible operating systems	Windows 2003 Server RedHat Linux ES 4.0 SuSe SLES 9.0 SP2

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	27210

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Specification	Value
Certification	CE, FCC

Specification	Value
Graphics card	ES1000
Hot-swap HDD bays	x6
Security features	2 Level Passwords Intrusion Detection
Ventilation fan(s)	x2
Storage drive controller	1-ch EIDE, 1-ch Ultra 320
Power availability	550 W
Drive bays	2x 5.25"; 1x 3.5"
Manageability features	IPMI v2.0
