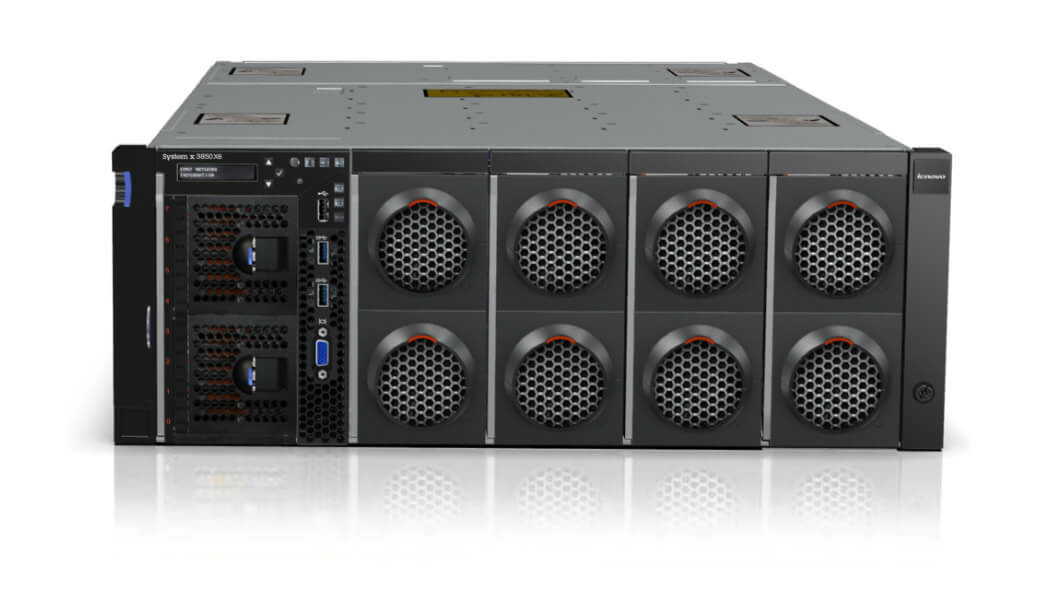

Lenovo x3850 X6

Model x3850 X6Part no. 624114GEAN 7612392319702

104 specifications

Overview

Brand: Lenovo
Category: Server
Model: x3850 X6
Part numbers: 624114G, 624124G
EAN / UPC: 7612392319702
Also known as: Lenovo System x3850 X6 server 0 GB Rack (4U) Intel® Xeon® E7 v3 E7-4809V3 2 GHz 16 GB DDR4-SDRAM 900 W

104 specifications in 16 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E7 v3
Processor model	E7-4809V3
Processor frequency	2 GHz
Processor cores	8
Processor cache	20 MB
Motherboard chipset	Intel® C602J
Memory channels supported by processor	Quad
Number of processors installed	1
Thermal Design Power (TDP)	115 W
Processor cache type	Last Level Cache
System bus rate	6.4 GT/s
Bus type	QPI
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
Idle States	Yes
Maximum internal memory supported by processor	1.53 TB
Maximum number of PCI Express lanes	32
Memory bandwidth supported by processor (max)	102 GB/s
Memory clock speeds supported by processor	1066,1333,1600,1866 MHz
Memory types supported by processor	DDR4-SDRAM, DDR3-SDRAM
Number of QPI links	3
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor code	SR223
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	52 x 45 mm
Processor socket	LGA 2011 (Socket R)
Processor threads	16
Scalability	S4S
Stepping	E0
Supported instruction sets	AVX 2.0
Tcase	70 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Specification	Value
On-board graphics card	Yes
On-board graphics card model	Not available
Maximum graphics card memory	16 MB

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB 2.0 ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Serial ports quantity	1
VGA (D-Sub) ports quantity	2

Specification	Value
PCI Express slots version	3.0

Specification	Value
Compatible operating systems	Microsoft Windows Server, Red Hat Enterprise Linux Server, SUSE Linux Enterprise Server, VMware vSphere Hypervisor

Specification	Value
CPU configuration (max)	4
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel Instruction Replay Technology	No
Intel Instruction Replay Technology version	0.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	No
Processor ARK ID	84676

Specification	Value
Redundant power supply (RPS) support	Yes
Power supply	900 W
Number of redundant power supplies supported	4
Number of redundant power supplies installed	1
Number of main power supplies	1
Power supply input frequency	50 - 60 Hz

Specification	Value
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	8 - 85%
Storage relative humidity (H-H)	8 - 85%
Operating altitude	0 - 3050 m
Non-operating altitude	0 - 3050 m

Specification	Value
Sustainability certificates	ENERGY STAR

Specification	Value
Security features	Power-on, admin password
