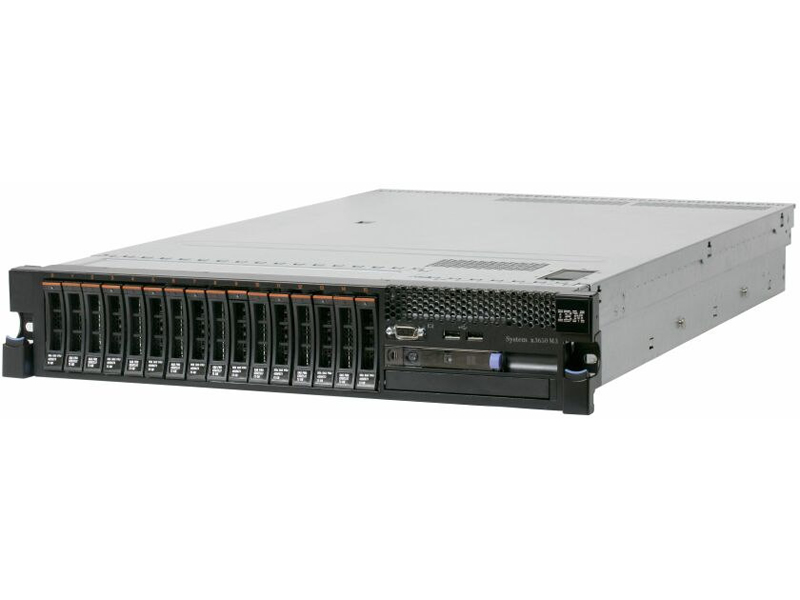

Lenovo x3650 M3

Model x3650 M3Part no. 794552GEAN 4053162261372

112 specifications

Overview

Brand: Lenovo
Category: Server
Model: x3650 M3
Part numbers: 794552G, 794554G, 794562G, 794572G, 794582G, 7945D4G +7 more
EAN / UPC: 4053162261372, 4053162261426, 4053162261433, 4053162261440
Also known as: Lenovo System x3650 M3 server 0 GB Rack (2U) Intel® Xeon® 5000 Sequence E5603 1.6 GHz 4 GB DDR3-SDRAM 460 W

112 specifications in 16 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 5000 Sequence
Processor model	E5603
Processor frequency	1.6 GHz
Processor cores	4
Processor cache	4 MB
Motherboard chipset	Intel® 5520
Memory channels supported by processor	Triple
Number of processors installed	1
Thermal Design Power (TDP)	80 W
Processor cache type	Smart Cache
System bus rate	4.8 GT/s
Bus type	QPI
CPU multiplier (bus/core ratio)	12
Compatible processor series	Intel® Xeon®
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	288 GB
Maximum number of SMP processors	2
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory clock speeds supported by processor	800,1066 MHz
Memory types supported by processor	DDR3-SDRAM
Number of QPI links	2
Physical Address Extension (PAE)	40 bit
Processor code	SLC2F
Processor codename	Westmere EP
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	42.5 X 45 mm
Processor series	Intel Xeon 5600 Series
Processor socket	Socket B (LGA 1366)
Processor threads	4
Stepping	B1
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Specification	Value
Maximum graphics card memory	16 MB

Specification	Value
PCI Express x8 slots	4

Specification	Value
Chassis type	Rack (2U)

Specification	Value
Compatible operating systems	Windows Server 2008, 2008 R2 (32/64-bit) Windows Server 2003, 2003 R2 (32/64-bit) RHEL 5 (32/64-bit) RHEL 6 (32/64-bit) SLES 10, 11 (32/64-bit) VMware vSphere Hypervisor 4.1 Sun Solaris 10

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	52584

Specification	Value
Redundant power supply (RPS) support	No
Power supply type	AC/DC
Number of power supply units	1
Power supply	460 W

Specification	Value
Operating temperature (T-T)	10 - 32 °C
Operating altitude	914.4 - 2133 m

Specification	Value
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Specification	Value
Sustainability certificates	ENERGY STAR
