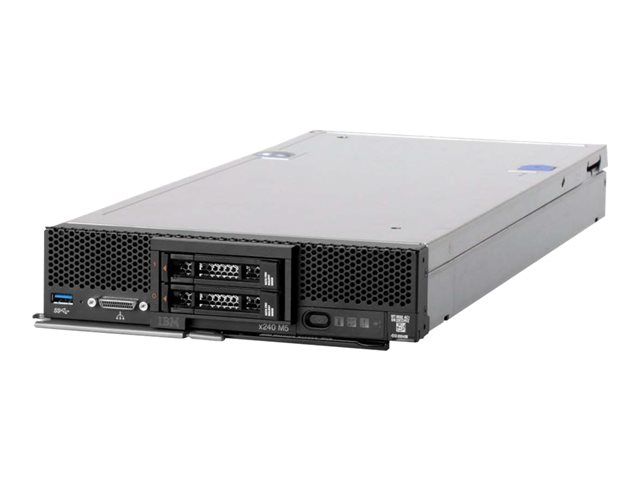

Lenovo x240 M5

Model x240 M5Part no. 953223GEAN 5051045214926

97 specifications

Overview

Brand: Lenovo
Category: Server
Model: x240 M5
Part numbers: 953223G, 9532D2G, 9532L4G, 9532M2G, 9532D4G, 9532A2G +21 more
EAN / UPC: 5051045214926, 5051045214643, 7612392303947, 5051045215213 +29 more
Also known as: Lenovo Flex System x240 M5 server Rack Intel Xeon E5 v3 E5-2640V3 2.6 GHz 16 GB

97 specifications in 10 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Xeon E5 v3
Processor model	E5-2640V3
Processor frequency	2.6 GHz
Processor boost frequency	3.4 GHz
Processor cores	8
Processor cache	20 MB
Memory channels supported by processor	Quad
Number of processors installed	1
Thermal Design Power (TDP)	90 W
Processor cache type	Smart Cache
System bus rate	8 GT/s
Bus type	QPI
ECC supported by processor	Yes
Embedded options available	Yes
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	768 GB
Maximum number of PCI Express lanes	40
Maximum number of SMP processors	2
Memory bandwidth supported by processor (max)	59 GB/s
Memory clock speeds supported by processor	1600,1866 MHz
Memory types supported by processor	DDR4-SDRAM
Number of QPI links	2
PCI Express configurations	x4, x8, x16
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor code	SR205
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	52.5 x 45 mm
Processor series	Intel Xeon E5-2600 v3
Processor socket	LGA 2011 (Socket R)
Processor threads	16
Scalability	2S
Stepping	R2
Supported instruction sets	AVX
Tcase	74.3 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
Maximum storage capacity	4 TB
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
HDD size	2.5"
SSD interface	Serial Attached SCSI (SAS)
RAID support	Yes
RAID levels	0, 1

Specification	Value
Ethernet LAN	No

Specification	Value
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1

Specification	Value
PCI Express x16 (Gen 3.x) slots	1
PCI Express slots version	3.0

Specification	Value
Chassis type	Rack

Specification	Value
Operating system installed	No

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	No
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	83359
