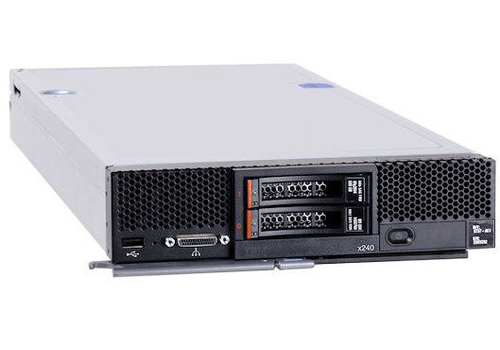

Lenovo Flex System x240 server Intel® Xeon® E5 Family E5-2609V2
2.5 GHz 8 GB
Model x240Part no. 87379MGEAN 5051045161077
106 specifications
- ProcessorIntel® Xeon® E5 Family
- Memory8 GB
- OSNo
- Processor manufacturerIntel
- Maximum storage capacity6.4 TB
- Maximum graphics card memory16 MB
Overview
- Processor
- Intel® Xeon® E5 Family
- Memory
- 8 GB
- OS
- No
- Processor manufacturer
- Intel
- Maximum storage capacity
- 6.4 TB
- Maximum graphics card memory
- 16 MB
- Brand
- Lenovo
- Category
- Server
- Model
- x240
- Part numbers
- 87379MG, 8737BMG, 8737C4G, 8737CMG, 873714G, 87371MG +10 more
- EAN / UPC
- 5051045161077, 4053162530812, 5051045168380, 5051045162456 +9 more
- Also known as
- Lenovo Flex System x240 server Intel® Xeon® E5 Family E5-2609V2 2.5 GHz 8 GB
Specifications
106 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-2609V2 |
| Processor frequency | 2.5 GHz |
| Processor boost frequency | 2.5 GHz |
| Processor cores | 4 |
| Processor cache | 10 MB |
| Motherboard chipset | Intel C600 |
| Memory channels supported by processor | Quad |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | Smart Cache |
| System bus rate | 6.4 GT/s |
| Bus type | QPI |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Maximum number of PCI Express lanes | 40 |
| Maximum number of SMP processors | 2 |
| Memory bandwidth supported by processor (max) | 42.6 GB/s |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Number of QPI links | 2 |
| PCI Express configurations | x4, x8, x16 |
| Physical Address Extension (PAE) | 46 bit |
| Processor codename | Ivy Bridge EP |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor package size | 52.5 x 45 mm |
| Processor series | Intel Xeon E5-2600 v2 |
| Processor socket | LGA 2011 (Socket R) |
| Processor threads | 4 |
| Scalability | 2S |
| Supported instruction sets | AVX |
| Tcase | 71 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Memory clock speed | 1333 MHz |
| Memory slots | 24x DIMM |
| Maximum internal memory | 768 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 6.4 TB |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| HDD size | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1 |
| Hot-swap | Yes |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 16 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express slots version | 3.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Microsoft Windows Server 2008 R2, Red Hat Enterprise Linux 5 and 6, SUSE Linux Enterprise Server 10 and 11, VMware ESX 4 |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 75787 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | 1 - 60 °C |
| Operating relative humidity (H-H) | 8 - 85% |
| Storage relative humidity (H-H) | 5 - 80% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 10700 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 217 mm |
| Depth | 492 mm |
| Height | 56 mm |
| Package width | 430 mm |
| Package depth | 603 mm |
| Package height | 197 mm |
| Package weight | 8 kg |
Other features
| Specification | Value |
|---|---|
| Graphics card | G200eR2 |
| Graphics card family | Matrox |
