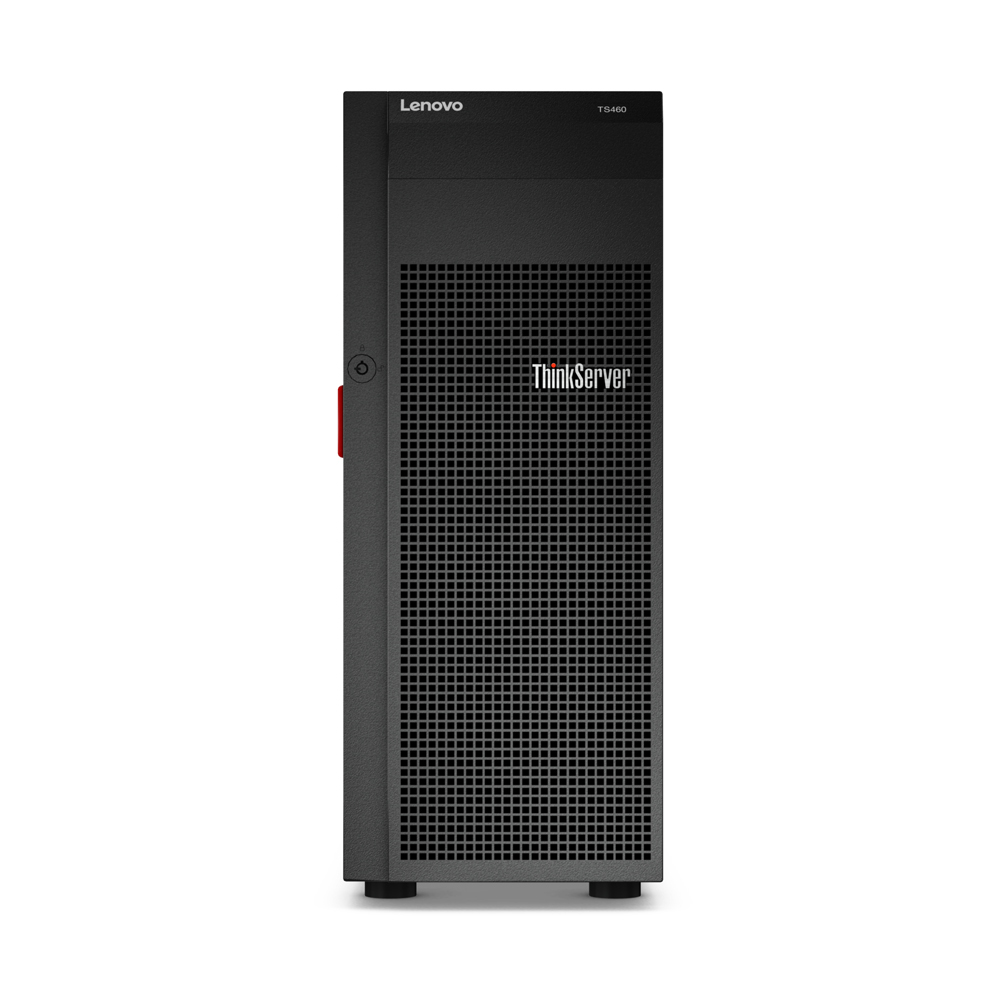

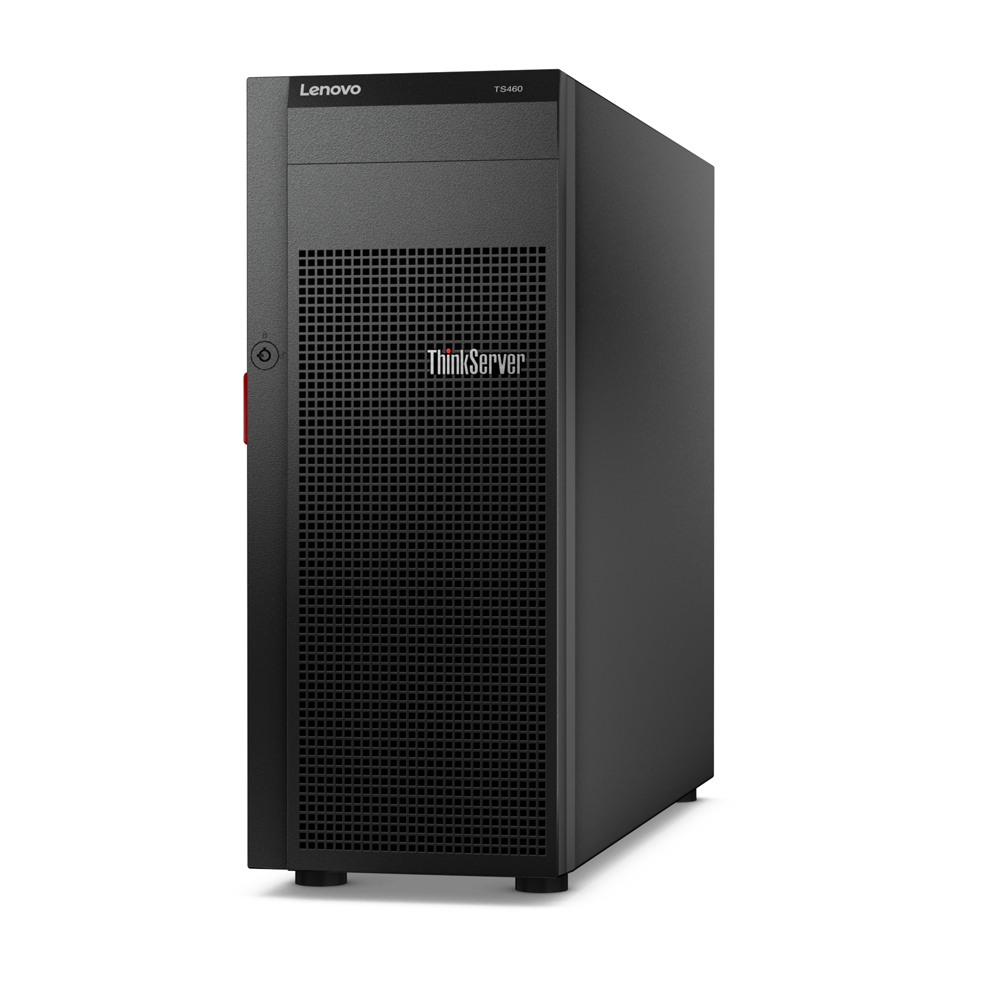

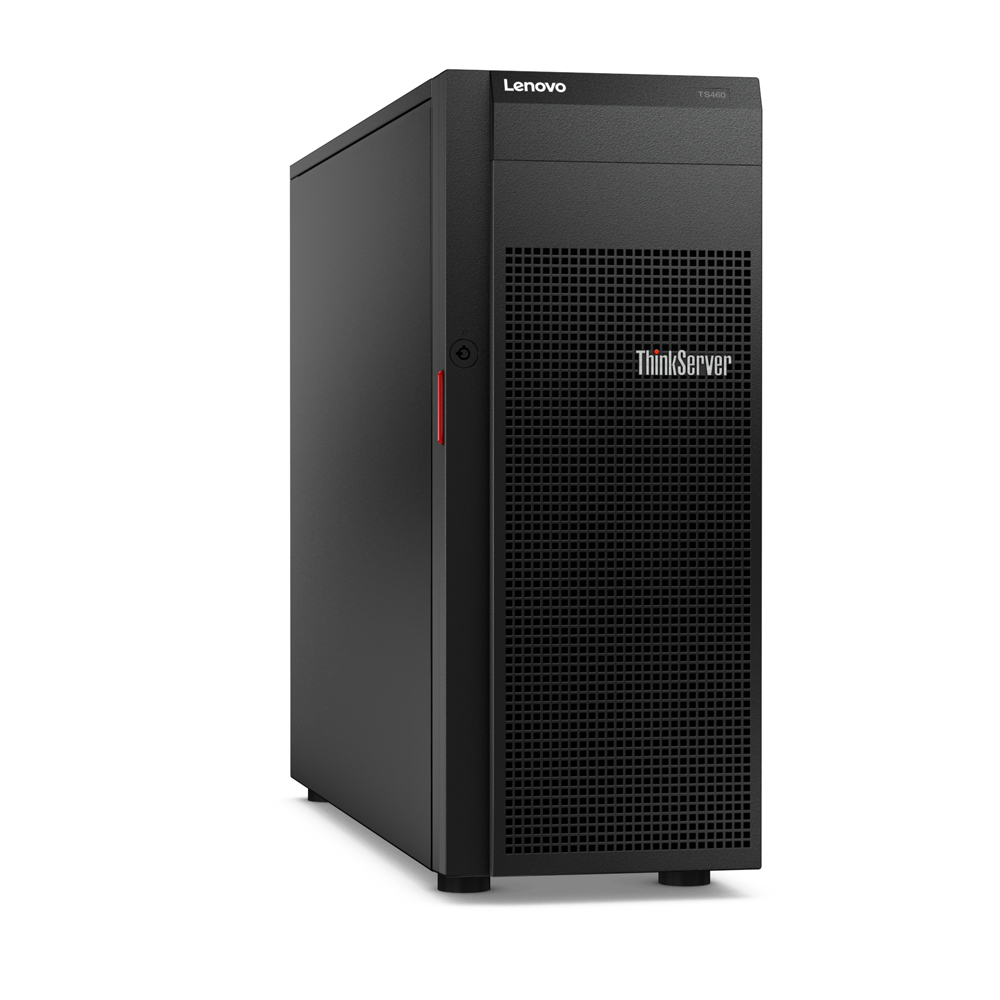

Lenovo ThinkServer TS460 server

0 GB Tower (4U) Intel® Xeon® E3 v5 E3-1220V5 3 GHz 8 GB DDR4-SDRAM 450 W

Model TS460Part no. 70TT0024UXEAN 190940328774

105 specifications

ProcessorIntel® Xeon® E3 v5
Memory8 GB
Storage0 GB
OSNo
Weight26.5 kg
Processor manufacturerIntel

See all specifications

Overview

Processor: Intel® Xeon® E3 v5
Memory: 8 GB
Storage: 0 GB
OS: No
Weight: 26.5 kg
Processor manufacturer: Intel

Brand: Lenovo
Category: Server
Model: TS460
Part numbers: 70TT0024UX, 70TT0008EA, 70TT000BEA, 70TT000GEA, 70TT001NEA, 70TT0025UX +34 more
EAN / UPC: 190940328774, 190940328736, 4058154189757, 190940328767 +56 more
Also known as: Lenovo ThinkServer TS460 server 0 GB Tower (4U) Intel® Xeon® E3 v5 E3-1220V5 3 GHz 8 GB DDR4-SDRAM 450 W

Specifications

105 specifications in 16 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 v5
Processor model	E3-1220V5
Processor frequency	3 GHz
Processor boost frequency	3.5 GHz
Processor cores	4
Processor cache	8 MB
Memory channels supported by processor	Dual
Number of processors installed	1
Thermal Design Power (TDP)	80 W
Processor cache type	Smart Cache
System bus rate	8 GT/s
Bus type	QPI
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Maximum internal memory supported by processor	64 GB
Maximum number of PCI Express lanes	16
Memory bandwidth supported by processor (max)	34.1 GB/s
Memory clock speeds supported by processor	1333,1600,1866,2133 MHz
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory voltage supported by processor	1.35 V
PCI Express configurations	1x16, 1x8+2x4, 2x8
Processor code	SR2LG
Processor codename	Skylake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon E3-1200 v5
Processor socket	LGA 1151 (Socket H4)
Processor threads	4
Scalability	1S
Stepping	R0
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
ECC	Yes
Memory clock speed	2133 MHz
Memory layout (slots x size)	1 x 8 GB
Memory slots	4x DIMM
Maximum internal memory	64 GB

Storage

Specification	Value
Total storage capacity	0 GB
Number of HDDs installed	0
Number of HDDs supported	4
Supported HDD sizes	3.5"
RAID support	Yes
RAID levels	0, 1, 10
Optical drive type	DVD±RW
Supported storage drive interfaces	SAS, Serial ATA III

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card model	Aspeed AST2400
Number of displays supported (on-board graphics)	0

Network

Specification	Value
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
Serial ports quantity	1
VGA (D-Sub) ports quantity	1

Expansion slots

Specification	Value
PCI Express slots version	3.0

Design

Specification	Value
Chassis type	Tower (4U)

Performance

Specification	Value
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Software

Specification	Value
Operating system installed	No
Compatible operating systems	Microsoft Windows Server 2016/2012 R2. Red Hat Enterprise Linux 6.8. VMware vSphere (ESXi) 6.0U2/6.5

Processor special features

Specification	Value
CPU configuration (max)	1
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Enhanced Halt State	Yes
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	No
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	88172

Power

Specification	Value
Redundant power supply (RPS) support	Yes
Power supply	450 W

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Logistics data

Specification	Value
Harmonized System (HS) code	84714100

Weight & dimensions

Specification	Value
Width	173 mm
Depth	593 mm
Height	443.5 mm
Weight	26.5 kg

Other features

Specification	Value
Integrated BMC with IPMI	Yes
Security features	Power-on password, administrator password
