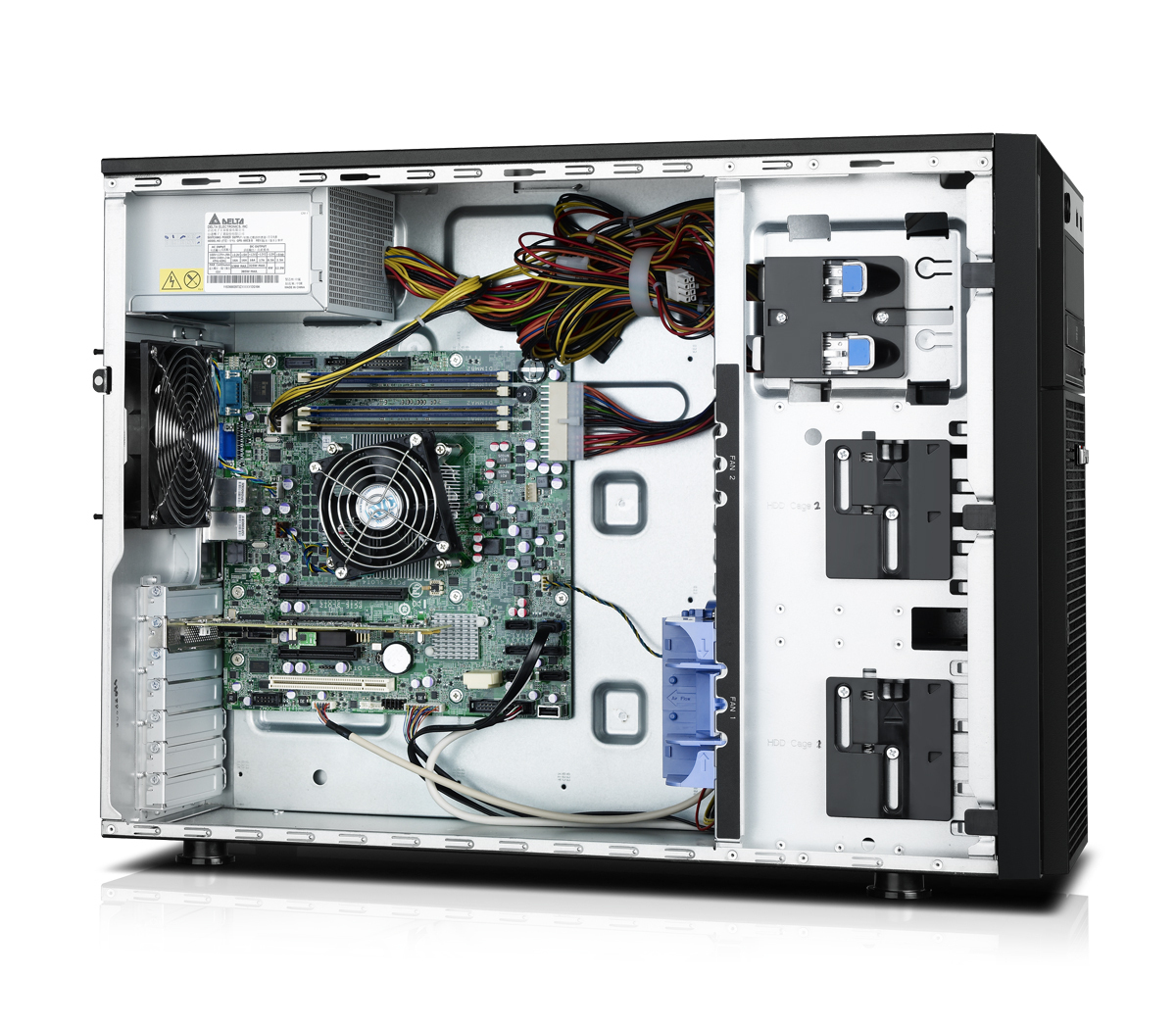

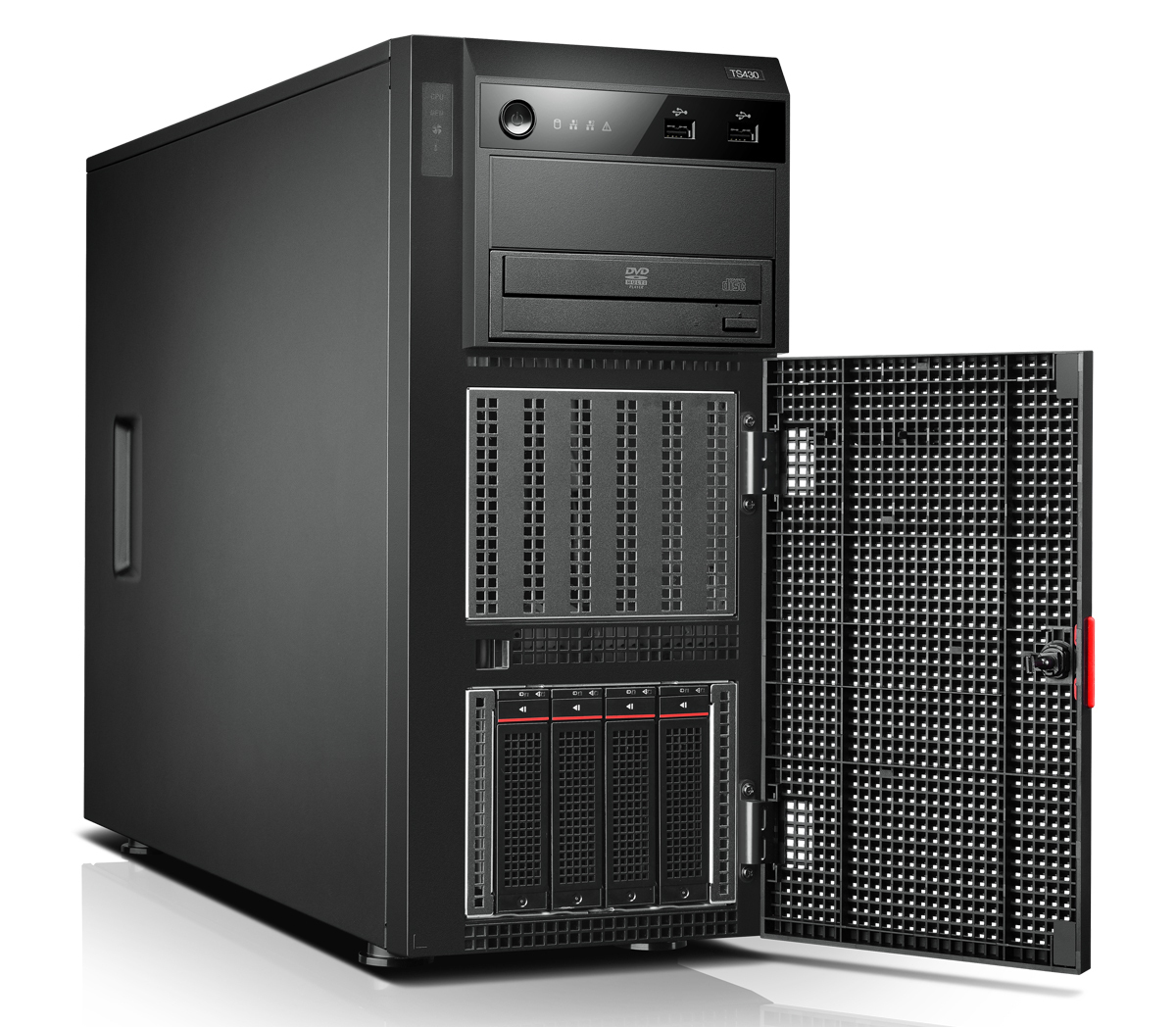

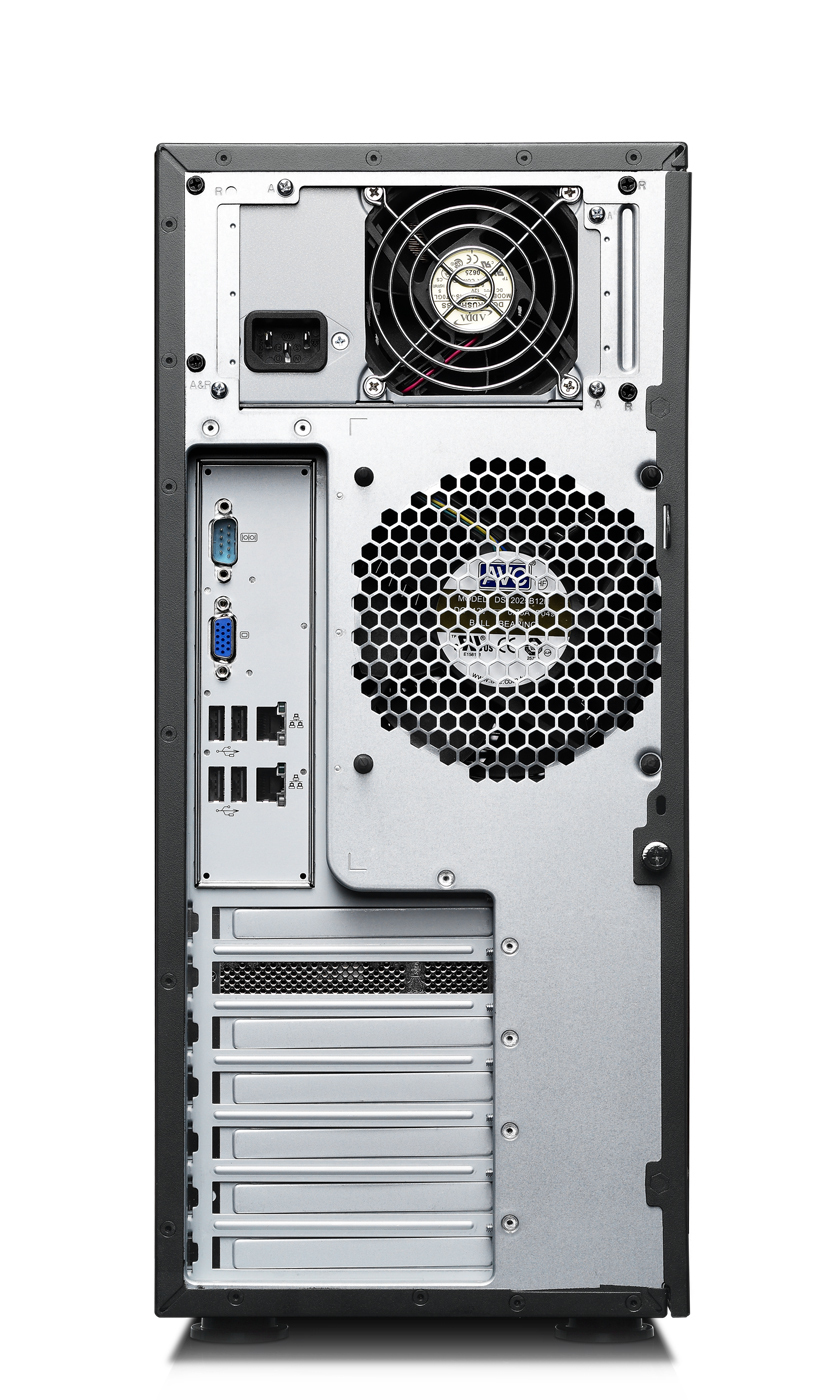

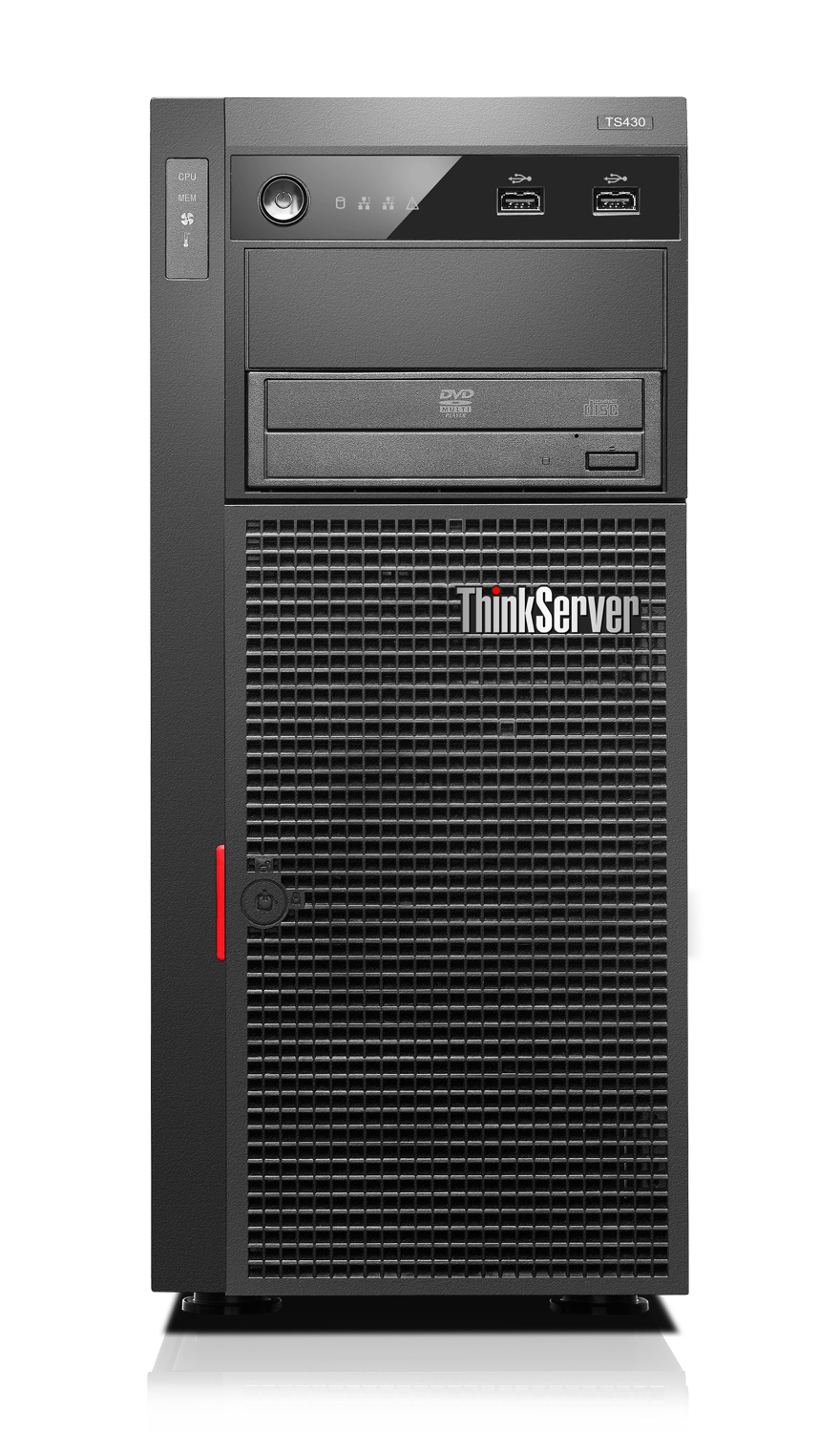

Lenovo ThinkServer TS430 server

0 GB Tower (5U) Intel® Xeon® E3 Family E3-1220 3.1 GHz 4 GB DDR3-SDRAM

Model TS430Part no. SY312UKEAN 645743610613

106 specifications

Overview

Brand: Lenovo
Category: Server
Model: TS430
Part numbers: SY312UK, SY311FR, SY312FR, SY313FR, SYX12FR, SYX13UK +34 more
EAN / UPC: 645743610613, 645743174108, 645743173828, 645743173392 +56 more
Also known as: Lenovo ThinkServer TS430 server 0 GB Tower (5U) Intel® Xeon® E3 Family E3-1220 3.1 GHz 4 GB DDR3-SDRAM

106 specifications in 13 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 Family
Processor model	E3-1220
Processor frequency	3.1 GHz
Processor boost frequency	3.4 GHz
Processor cores	4
Processor cache	8 MB
Motherboard chipset	Intel® C202
Memory channels supported by processor	Dual
Number of processors installed	1
Thermal Design Power (TDP)	80 W
Processor cache type	Smart Cache
System bus rate	5 GT/s
Bus type	DMI
CPU multiplier (bus/core ratio)	31
Compatible processor series	Intel® Core™ i3
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	32 GB
Maximum number of PCI Express lanes	20
Memory bandwidth supported by processor (max)	21 GB/s
Memory clock speeds supported by processor	1066,1333 MHz
Memory types supported by processor	DDR3-SDRAM
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon E3-1200
Processor socket	LGA 1155 (Socket H2)
Processor threads	4
Supported instruction sets	AVX
Tcase	69.1 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
Maximum storage capacity	16 TB
Total storage capacity	0 GB
Number of HDDs installed	0
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
HDD size	3.5"
Number of HDDs supported	8
RAID support	Yes
RAID levels	0, 1
Hot-swap	Yes
Optical drive type	DVD-RW

Specification	Value
Ethernet LAN	Yes
Networking features	Gigabit Ethernet

Specification	Value
Chassis type	Tower (5U)

Specification	Value
Operating system installed	No
Compatible operating systems	Windows Server 2008 R2

Specification	Value
CPU configuration (max)	1
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	52269

Specification	Value
Number of power supply units	1

Specification	Value
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Specification	Value
Sustainability certificates	ENERGY STAR
