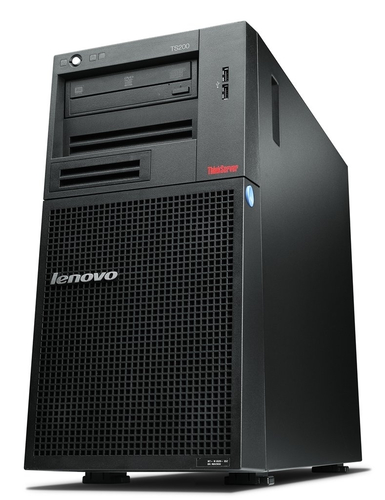

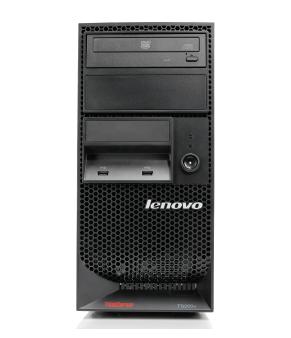

Lenovo ThinkServer TS200v server

500 GB Tower Intel® Core™ i5 i5-650 3.2 GHz 2 GB 280 W

Model TS200vPart no. 1010A34EAN 8856001831516

103 specifications

Overview

Brand: Lenovo
Category: Server
Model: TS200v
Part numbers: 1010A34, SPP17SP, SPP18SP, SPO1CIT, SPO18N3, SPO18FR +34 more
EAN / UPC: 8856001831516, 885600788684, 885600056899, 885600056844 +26 more
Also known as: Lenovo ThinkServer TS200v server 500 GB Tower Intel® Core™ i5 i5-650 3.2 GHz 2 GB 280 W

103 specifications in 12 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	Intel® Core™ i5
Processor model	i5-650
Processor frequency	3.2 GHz
Processor boost frequency	3.46 GHz
Processor cores	2
Processor cache	4 MB
Motherboard chipset	Intel® 3450
Memory channels supported by processor	Dual
Number of processors installed	1
Thermal Design Power (TDP)	73 W
Processor cache type	Smart Cache
System bus rate	2.5 GT/s
Bus type	DMI
CPU multiplier (bus/core ratio)	24
ECC supported by processor	No
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Graphics & IMC lithography	45 nm
Idle States	Yes
Maximum internal memory supported by processor	16 GB
Maximum number of PCI Express lanes	16
Memory bandwidth supported by processor (max)	21 GB/s
Memory types supported by processor	DDR3 1066/1333
Number of Processing Die Transistors	382 M
PCI Express configurations	1x16, 2x8
Physical Address Extension (PAE)	36 bit
Processing Die size	81 mm²
Processor codename	Clarkdale
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Core i5-600 Desktop Series
Processor socket	LGA 1156 (Socket H)
Processor threads	4
Stepping	C2
Supported instruction sets	SSE4.2
Tcase	72.6 °C
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	733 MHz

Specification	Value
Ethernet LAN	Yes
Networking features	Gigabit Ethernet

Specification	Value
PCI Express slots version	2.0

Specification	Value
Chassis type	Tower

Specification	Value
Compatible operating systems	Windows Server 2008 Foundations R2, Windows Server 2008 Standard Edition R2, Windows Server 2008 Enterprise Edition R2, Windows Server Small Business Server 2008 Standard (SP2)

Specification	Value
CPU configuration (max)	1
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	1.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	43546

Specification	Value
Redundant power supply (RPS) support	No
Number of power supply units	1
Power supply	280 W
