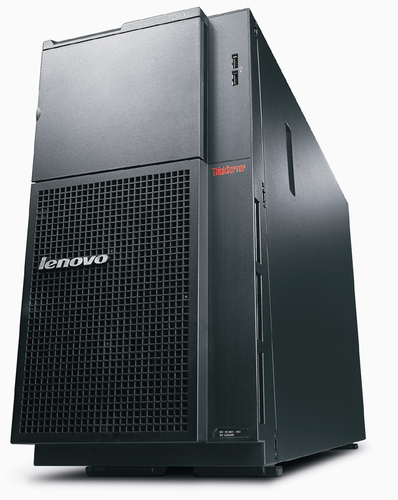

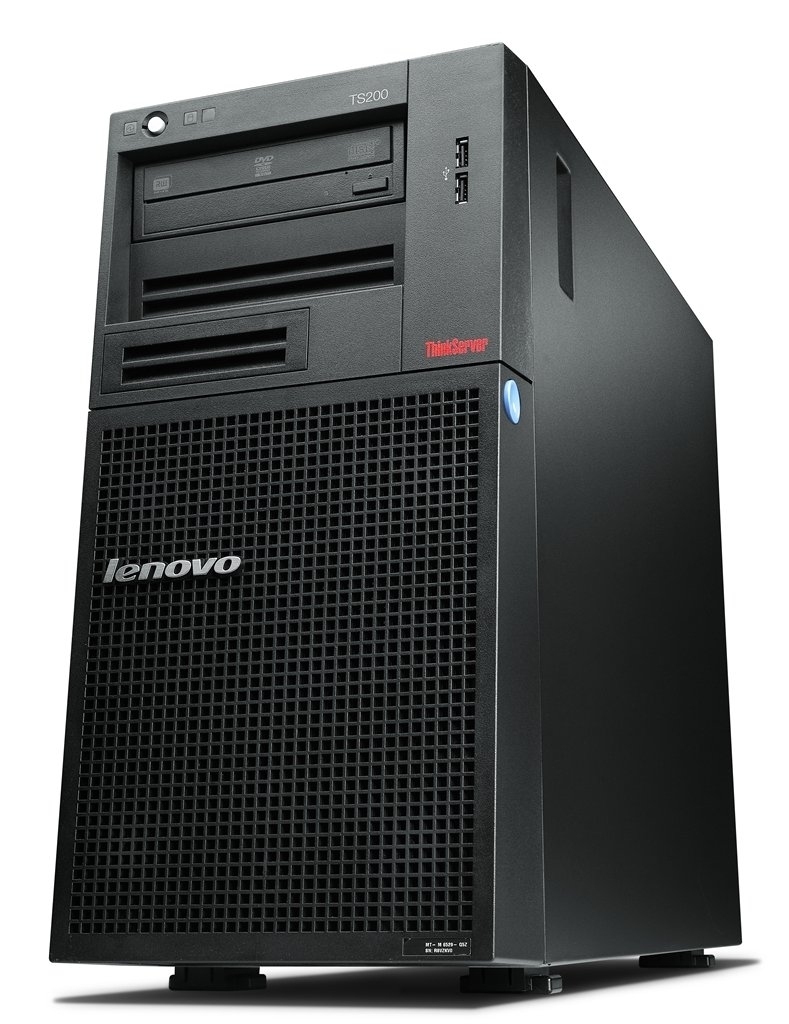

Lenovo ThinkServer TS200 server
0 GB Tower (5U) Intel® Xeon® 3000 Sequence X3450 2.66 GHz 4 GB 400 W
Model TS200Part no. SPH11IT_4X 45J6196EAN 884942691867
106 specifications
- ProcessorIntel® Xeon® 3000 Sequence
- Memory4 GB
- Storage0 GB
- Weight25.2 kg
- Processor manufacturerIntel
- Networking featuresDual Gigabit Ethernet
Overview
- Processor
- Intel® Xeon® 3000 Sequence
- Memory
- 4 GB
- Storage
- 0 GB
- Weight
- 25.2 kg
- Processor manufacturer
- Intel
- Networking features
- Dual Gigabit Ethernet
- Brand
- Lenovo
- Category
- Server
- Model
- TS200
- Part numbers
- SPH11IT_4X 45J6196, SPH11IT_4X 45J6197, SPH11IT_4X 67Y1380, SPH15IT_4X 45J6201, SPH15IT_4X 45J6202, SPH15IT_4X 45J6204 +17 more
- EAN / UPC
- 884942691867, 884942692444, 884942818011, 884942692307 +7 more
- Also known as
- Lenovo ThinkServer TS200 server 0 GB Tower (5U) Intel® Xeon® 3000 Sequence X3450 2.66 GHz 4 GB 400 W
Specifications
106 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 3000 Sequence |
| Processor model | X3450 |
| Processor frequency | 2.66 GHz |
| Processor boost frequency | 3.2 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 95 W |
| Processor cache type | Smart Cache |
| System bus rate | 2.5 GT/s |
| Bus type | DMI |
| CPU multiplier (bus/core ratio) | 20 |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 32 GB |
| Maximum number of PCI Express lanes | 16 |
| Maximum number of SMP processors | 1 |
| Memory bandwidth supported by processor (max) | 21 GB/s |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Number of Processing Die Transistors | 774 M |
| PCI Express configurations | 1x16, 2x8, 4x4 |
| Physical Address Extension (PAE) | 36 bit |
| Physical Address Extension (PAE) | Yes |
| Processing Die size | 296 mm² |
| Processor code | SLBLD |
| Processor codename | Lynnfield |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon 3400 Series |
| Processor socket | LGA 1156 (Socket H) |
| Processor threads | 8 |
| Stepping | B1 |
| Supported instruction sets | SSE4.2 |
| Tcase | 72.7 °C |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Buffered memory type | Registered (buffered) |
| ECC | Yes |
| Memory clock speed | 1066 MHz |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 6x DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 0 GB |
| HDD size | 3.5" |
| Number of HDDs supported | 4 |
| RAID levels | 1 |
| Hot-swap | Yes |
| Optical drive type | DVD-RW |
Network
| Specification | Value |
|---|---|
| Networking features | Dual Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 7 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 2 |
| PCI Express x8 slots | 2 |
| PCI Express slots version | 2.0 |
| PCI slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower (5U) |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2008 Standard R2 Windows Server 2008 Enterprise R2 Windows Server 2008 SBS Standard Windows Server 2008 EBS Standard Windows Foundations R2 Novell SUSE Linux Enterprise Server (SLES) 11 Red Hat Enterprise Linux 5.3 VMware ESX Server 4.0 & 4.0i |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 42929 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply | 400 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | 10 - 43 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 216 mm |
| Depth | 540 mm |
| Height | 438 mm |
| Weight | 25.2 kg |
Other features
| Specification | Value |
|---|---|
| RAID controller type | LSI MR10il |
