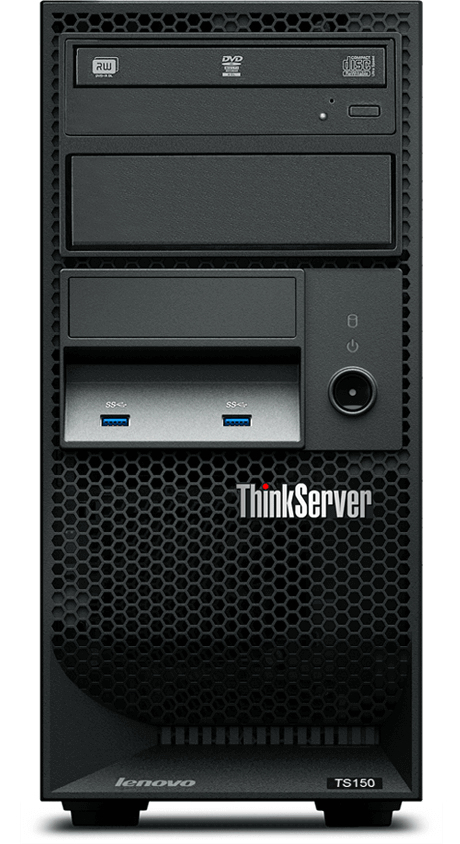

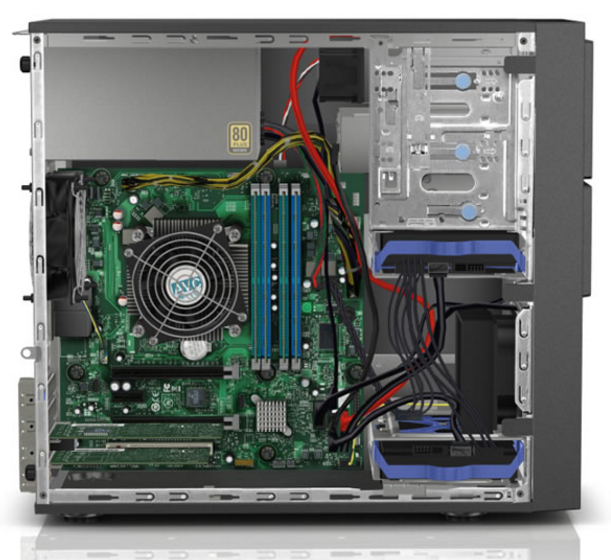

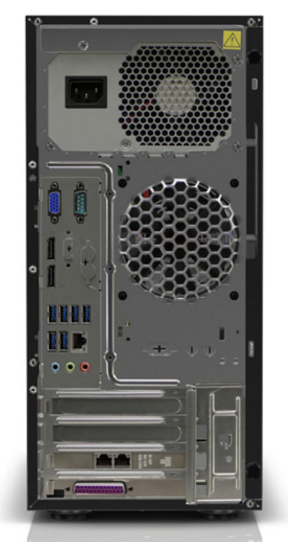

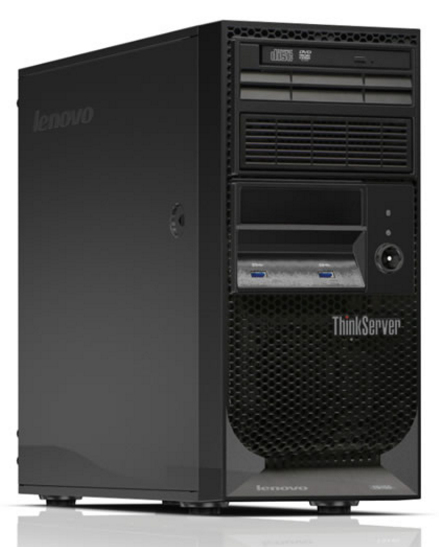

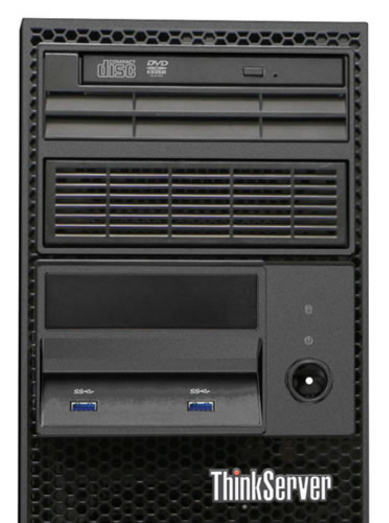

Lenovo ThinkServer TS150 server

1 TB Tower (4U) Intel® Xeon® E3 v5 E3-1225V5 3.3 GHz 8 GB DDR4-SDRAM 250 W

Model TS150Part no. 70UD000QEAEAN 190940792957

125 specifications

Overview

Brand: Lenovo
Category: Server
Model: TS150
Part numbers: 70UD000QEA, 70LVA002BN, 70LV0030UX, 70LV0034UX, 70LX0017UX, 70UB001LEA +34 more
EAN / UPC: 190940792957, 190793291249, 190793291225, 190793291089 +56 more
Also known as: Lenovo ThinkServer TS150 server 1 TB Tower (4U) Intel® Xeon® E3 v5 E3-1225V5 3.3 GHz 8 GB DDR4-SDRAM 250 W

125 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 v5
Processor model	E3-1225V5
Processor frequency	3.3 GHz
Processor boost frequency	3.7 GHz
Processor cores	4
Processor cache	8 MB
Motherboard chipset	Intel® C236
Memory channels supported by processor	Dual
Number of processors installed	1
Thermal Design Power (TDP)	80 W
Processor cache type	Smart Cache
System bus rate	8 GT/s
Bus type	DMI3
Compatible processor series	Intel® Celeron®, Intel® Pentium®
ECC supported by processor	Yes
Embedded options available	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Maximum internal memory supported by processor	64 GB
Maximum number of PCI Express lanes	16
Maximum number of SMP processors	1
Memory bandwidth supported by processor (max)	34.1 GB/s
Memory clock speeds supported by processor	1333,1600,1866,2133 MHz
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory voltage supported by processor	1.35 V
PCI Express configurations	1x16, 1x8+2x4, 2x8
Processor codename	Skylake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon E3-1200 v5
Processor socket	LGA 1151 (Socket H4)
Processor threads	4
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Supported processor sockets	LGA 1151 (Socket H4)
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Specification	Value
Total storage capacity	1 TB
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	Serial ATA III
HDD speed	7200 RPM
HDD size	3.5"
RAID support	Yes
RAID levels	0, 1, 5, 10
Optical drive type	DVD±RW
Supported storage drive interfaces	Serial ATA III

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics P530
Maximum on-board graphics card memory	1.7 GB
Number of displays supported (on-board graphics)	3
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x191D
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	400 MHz
On-board graphics card dynamic frequency (max)	1150 MHz

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
DisplayPorts quantity	1
Serial ports quantity	1
VGA (D-Sub) ports quantity	1

Specification	Value
Chassis type	Tower (4U)

Specification	Value
Noise level	35 dB
BIOS type	UEFI
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	1.2

Specification	Value
Operating system installed	No
Compatible operating systems	Microsoft Windows Server 2012 R2/2012 Windows MultiPoint Server 2012 Windows 10 Pro Red Hat Enterprise Linux 6.7/7.2 SUSE Linux Enterprise Server 11/12 VMware vSphere (ESXi) 5.5U3/6.0U2

Specification	Value
CPU configuration (max)	1
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	88168

Specification	Value
Redundant power supply (RPS) support	No
Power supply	250 W
Number of main power supplies	1
Power supply input frequency	50 - 60 Hz

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	8 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating altitude	0 - 3048 m
