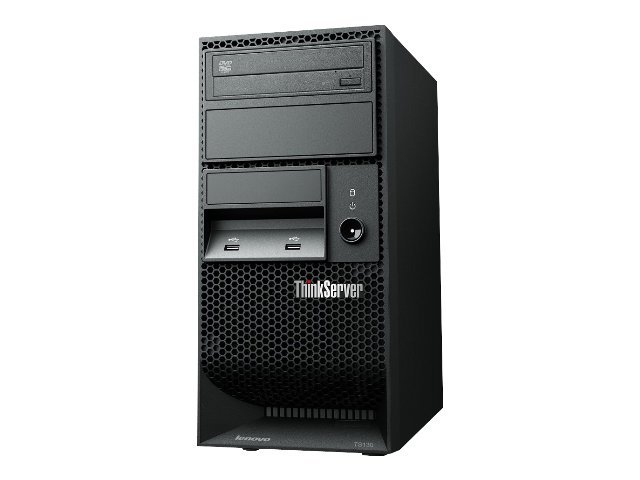

Lenovo ThinkServer TS130 server
500 GB Tower (4U) Intel® Core™ i3 i3-2100 3.1 GHz 2 GB DDR3-SDRAM 280 W
Model TS130Part no. SUT1GGE+67Y2606EAN 645743581913
120 specifications
- ProcessorIntel® Core™ i3
- Memory2 GB
- Storage500 GB
- OSNo
- Weight11.2 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Core™ i3
- Memory
- 2 GB
- Storage
- 500 GB
- OS
- No
- Weight
- 11.2 kg
- Processor manufacturer
- Intel
- Brand
- Lenovo
- Category
- Server
- Model
- TS130
- Part numbers
- SUT1GGE+67Y2606, SUS11GE, SUSA1GE, SUT1GGE, SUTA1GE, SUTA1GE+67Y2606 +34 more
- EAN / UPC
- 645743581913, 645743187191, 645743581852, 645743187276 +56 more
- Also known as
- Lenovo ThinkServer TS130 server 500 GB Tower (4U) Intel® Core™ i3 i3-2100 3.1 GHz 2 GB DDR3-SDRAM 280 W
Specifications
120 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 2nd gen Intel® Core™ i3 |
| Processor model | i3-2100 |
| Processor frequency | 3.1 GHz |
| Processor cores | 2 |
| Processor cache | 3 MB |
| Motherboard chipset | Intel® C206 |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 35, 65 |
| Processor cache type | Smart Cache |
| System bus rate | 5 GT/s |
| Bus type | DMI |
| CPU multiplier (bus/core ratio) | 31 |
| ECC supported by processor | No |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 32 GB |
| Maximum number of PCI Express lanes | 16 |
| Maximum number of SMP processors | 1 |
| Memory bandwidth supported by processor (max) | 21 GB/s |
| Memory clock speeds supported by processor | 1066,1333 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Processor codename | Sandy Bridge |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Core i3-2100 Desktop Series |
| Processor socket | LGA 1155 (Socket H2) |
| Processor threads | 4 |
| Stepping | Q0 |
| Supported instruction sets | AVX |
| Tcase | 69.1 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Maximum internal memory | 16384 MB |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 1 x 2 GB |
| Memory slots | 4x DIMM |
| Maximum internal memory | 16 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 4 TB |
| Total storage capacity | 500 GB |
| Number of HDDs installed | 2 |
| HDD capacity | 250 GB |
| HDD interface | Serial ATA |
| HDD size | 3.5" |
| Number of HDDs supported | 2 |
| RAID support | Yes |
| RAID levels | 0, 1 |
| Hot-swap | No |
| Optical drive type | DVD-RW |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 2000 |
| Number of displays supported (on-board graphics) | 2 |
| On-board graphics card ID | 0x102 |
| On-board graphics card base frequency | 850 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
Network
| Specification | Value |
|---|---|
| Network ready | Yes |
| Ethernet LAN | Yes |
| Networking features | Gigabit Ethernet |
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 8 |
| DisplayPorts quantity | 1 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 2.0 |
| PCI slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower (4U) |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows Server 2008 R2 (Enterprise, Foundations, Standard Edition) Windows Small Business Server 2011 (Essentials, Standard, Premium Add-On) |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 53422 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply type | AC/DC |
| Number of power supply units | 1 |
| Power supply | 280 W |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 174.8 mm |
| Depth | 430.8 mm |
| Height | 425.2 mm |
| Weight | 11.2 kg |
