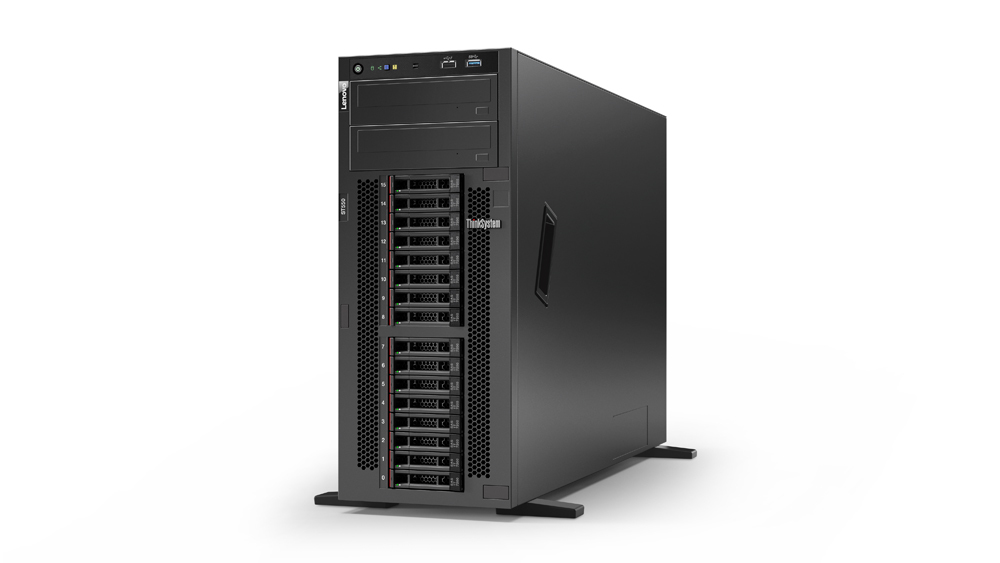

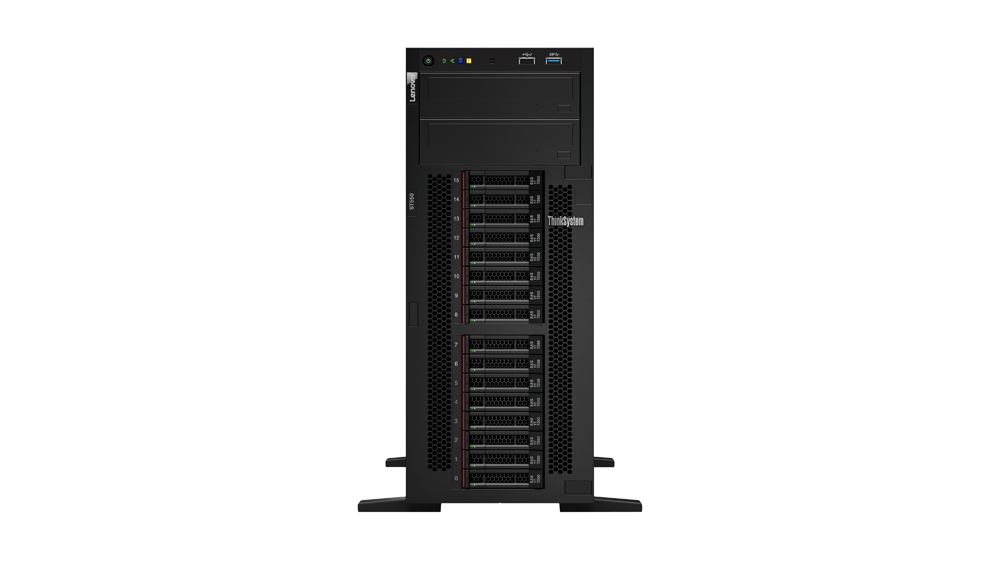

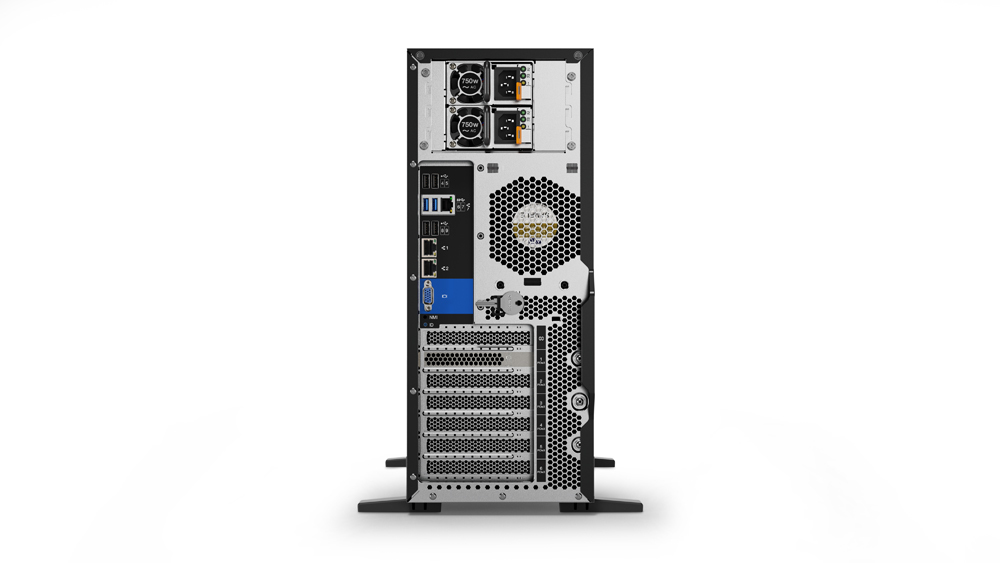

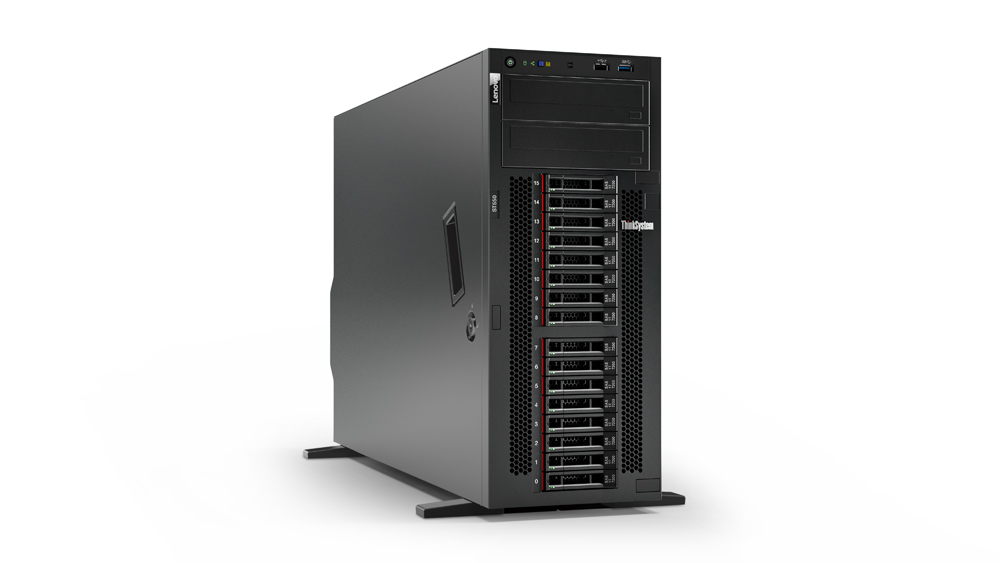

Lenovo ThinkSystem ST550

Model ThinkSystem ST550Part no. 7X10A01YEAEAN 889488443154

83 specifications

Overview

Brand: Lenovo
Category: Server
Model: ThinkSystem ST550
Part numbers: 7X10A01YEA, 7X10A028NA, 7X10A02PNA, 7X10A03PNA, 7X10A04DNA, 7X10A04FNA +34 more
EAN / UPC: 889488443154, 889488443420, 889488443574, 889488443918 +39 more
Also known as: Lenovo ThinkSystem ST550 server Tower Intel® Xeon® 4110 2.1 GHz 16 GB DDR4-SDRAM 750 W

83 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon®
Processor generation	1st Generation Intel® Xeon® Scalable
Processor model	4110
Processor frequency	2.1 GHz
Processor boost frequency	3 GHz
Processor cores	8
Processor cache	11 MB
Memory channels supported by processor	Hepta
Number of processors installed	1
Thermal Design Power (TDP)	85 W
Processor cache type	L3
ECC supported by processor	Yes
Embedded options available	Yes
Execute Disable Bit	Yes
Maximum internal memory supported by processor	768 GB
Maximum number of PCI Express lanes	48
Memory clock speeds supported by processor	2400 MHz
Memory types supported by processor	LPDDR4-SDRAM
Processor codename	Skylake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	76.0 x 56.5 mm
Processor socket	LGA 3647 (Socket P)
Processor threads	16
Scalability	2S
Supported instruction sets	AVX, AVX 2.0, AVX-512, SSE4.2
Tcase	77 °C
Conflict-Free processor	Yes

Specification	Value
Maximum storage capacity	61.44 TB
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
Supported HDD sizes	2.5,3.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60
Supported RAID controllers	530-8i
Hot-Plug support	Yes
Hot-swap	Yes

Specification	Value
On-board graphics card	Yes
On-board graphics card model	Matrox G200

Specification	Value
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
VGA (D-Sub) ports quantity	1

Specification	Value
Chassis type	Tower

Specification	Value
Performance management	XClarity Standard
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	1.2

Specification	Value
Compatible operating systems	Microsoft Windows Server 2016/2012 R2, Red Hat Enterprise Linux 7.3/6.9, SUSE, Linux Enterprise Server 12 SP2/11 SP4, VMware vSphere (ESXi) 6.5/6.0 U3

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	123547

Specification	Value
Redundant power supply (RPS) support	Yes
Power supply	750 W
Number of main power supplies	1
Power supply input frequency	50 - 60 Hz

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	8 - 90%
Operating altitude	0 - 3048 m

Specification	Value
Sustainability certificates	ENERGY STAR
