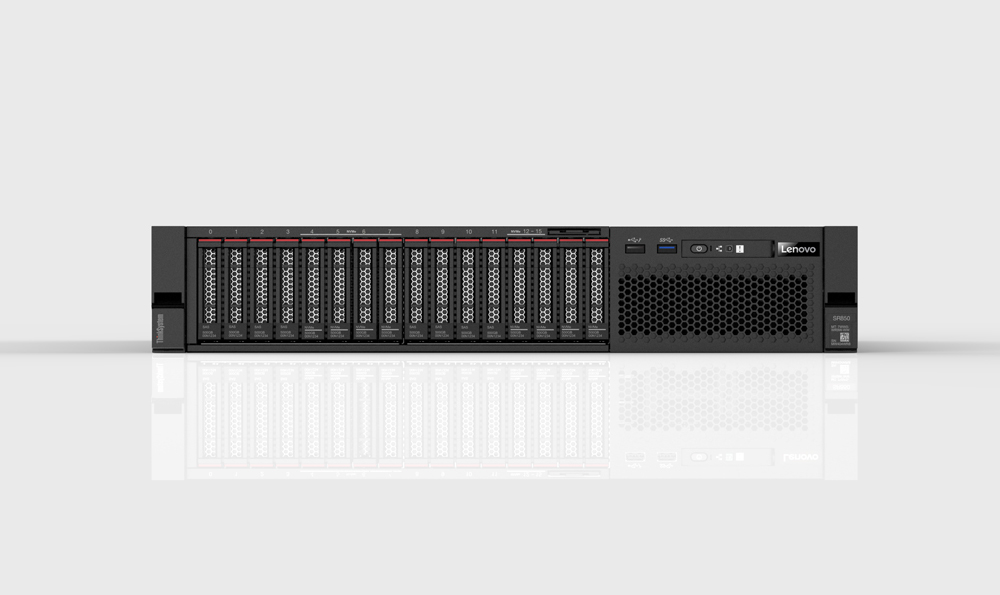

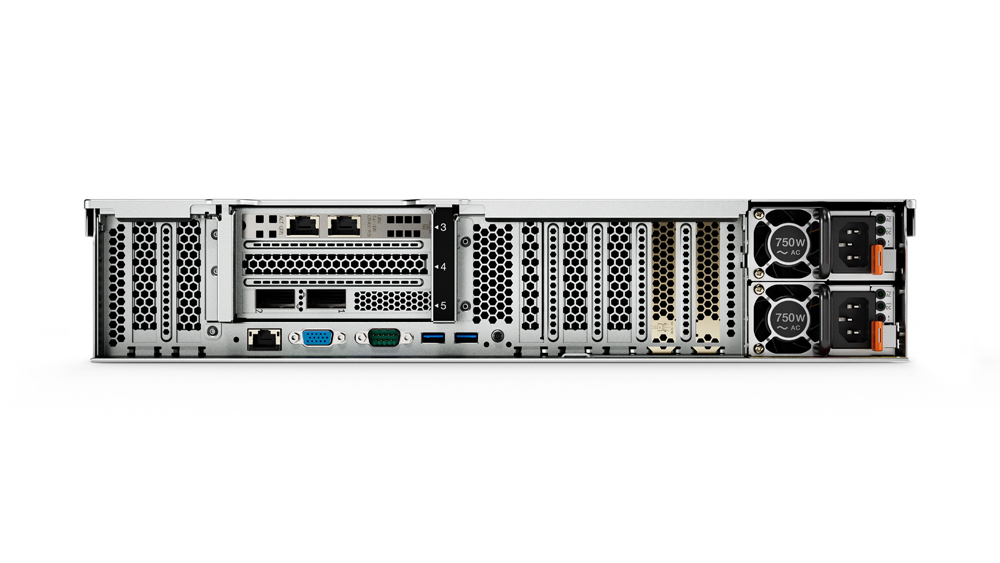

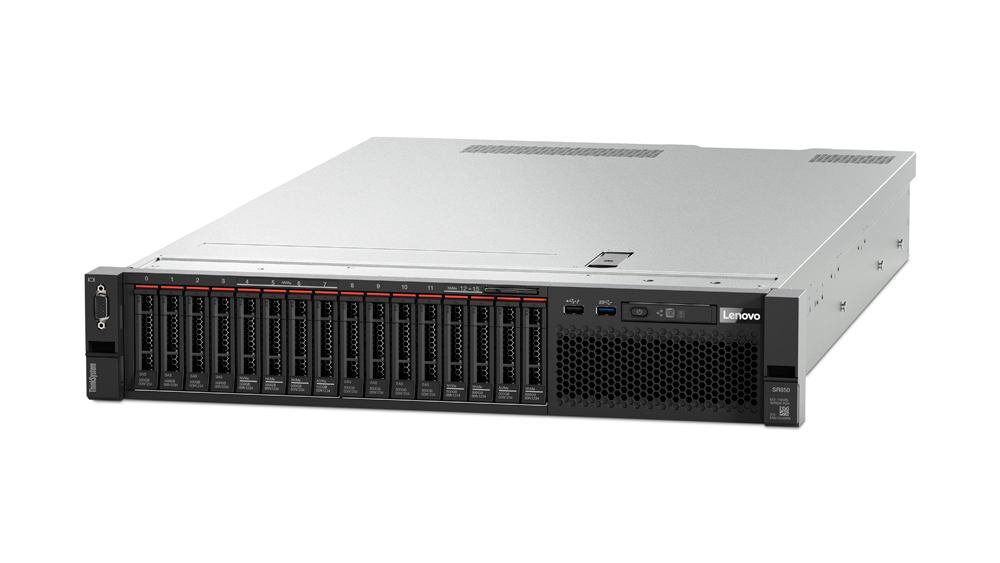

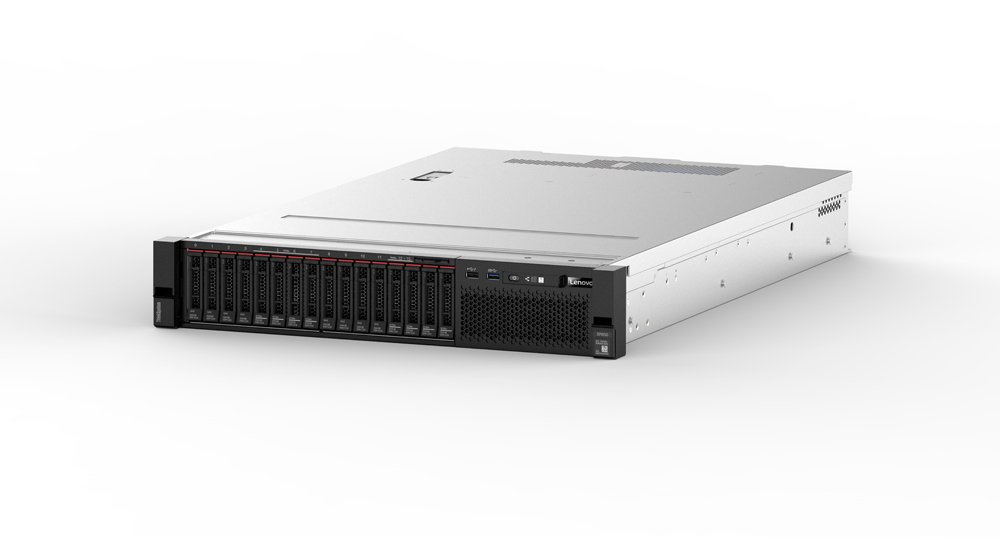

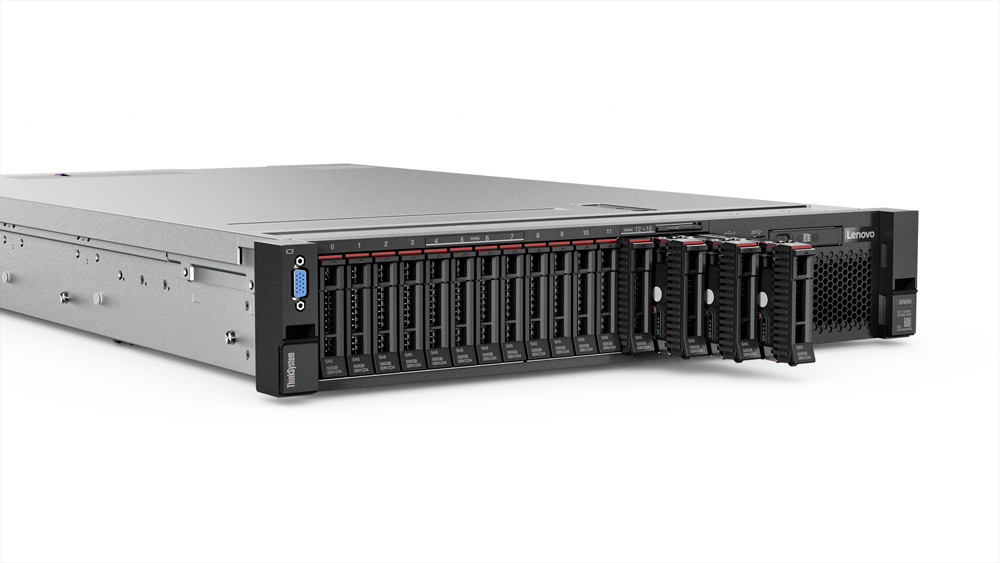

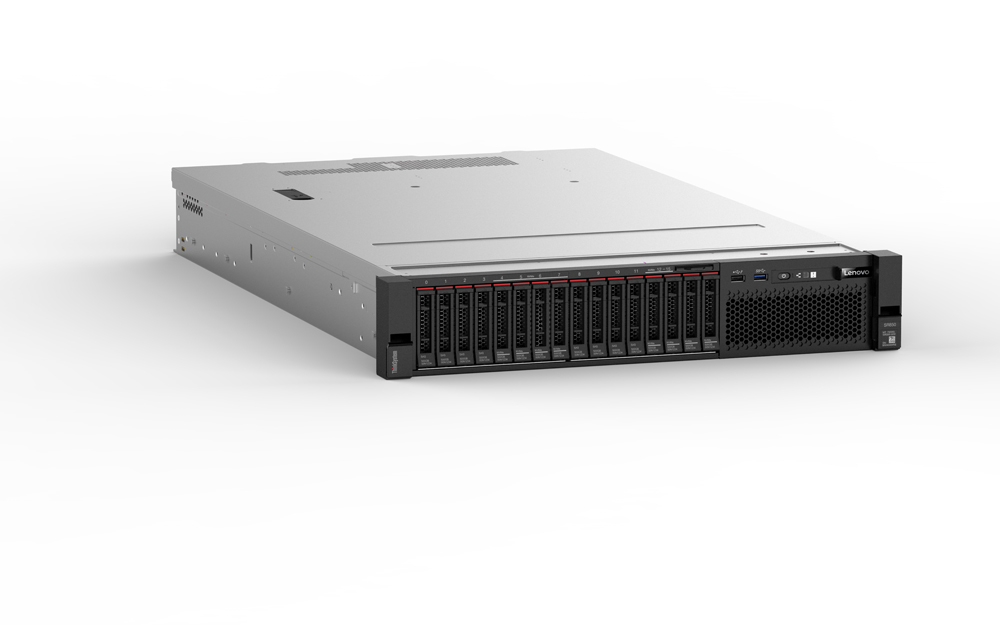

Lenovo ThinkSystem SR850

Model ThinkSystem SR850Part no. 7X19A02NEAEAN 889488446940

85 specifications

Overview

Brand: Lenovo
Category: Server
Model: ThinkSystem SR850
Part numbers: 7X19A02NEA, 7X19A02PEA, 7X19A02QEA, 7X19A02REA, 7X19A02SEA, 7X19A02TEA +20 more
EAN / UPC: 889488446940, 889488447008, 889488447015, 889488447046 +16 more
Also known as: Lenovo ThinkSystem SR850 server 0 GB Rack (2U) Intel® Xeon® Gold 5115 2.4 GHz 128 GB DDR4-SDRAM 1100 W

85 specifications in 13 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® Gold
Processor generation	1st Generation Intel® Xeon® Scalable
Processor model	5115
Processor frequency	2.4 GHz
Processor boost frequency	3.2 GHz
Processor cores	10
Processor cache	13.75 MB
Memory channels supported by processor	Hexa
Number of processors installed	4
Thermal Design Power (TDP)	85 W
Processor cache type	L3
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
Maximum internal memory supported by processor	768 GB
Maximum number of PCI Express lanes	48
Memory clock speeds supported by processor	2666 MHz
Memory types supported by processor	DDR4-SDRAM
Processor code	SR3GB
Processor codename	Skylake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	76.0 x 56.5 mm
Processor socket	LGA 3647 (Socket P)
Processor threads	20
Scalability	4S
Stepping	H0
Supported instruction sets	AVX, AVX 2.0, AVX-512, SSE4.2
Tcase	76 °C
Conflict-Free processor	Yes

Specification	Value
Total storage capacity	0 GB
Supported HDD sizes	2.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60
Supported RAID controllers	930-8i
Hot-swap	Yes
Optical drive type	No
Supported storage drive interfaces	SAS, Serial ATA III, M.2

Specification	Value
On-board graphics card model	Matrox G200

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Serial ports quantity	1
VGA (D-Sub) ports quantity	1

Specification	Value
Performance management	XClarity Advanced
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	1.2

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	120484

Specification	Value
Redundant power supply (RPS) support	Yes
Power supply	1100 W
Number of redundant power supplies installed	2

Specification	Value
Operating temperature (T-T)	5 - 45 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	8 - 90%
Storage relative humidity (H-H)	8 - 90%
Operating altitude	0 - 3048 m

Specification	Value
Sustainability certificates	ENERGY STAR
