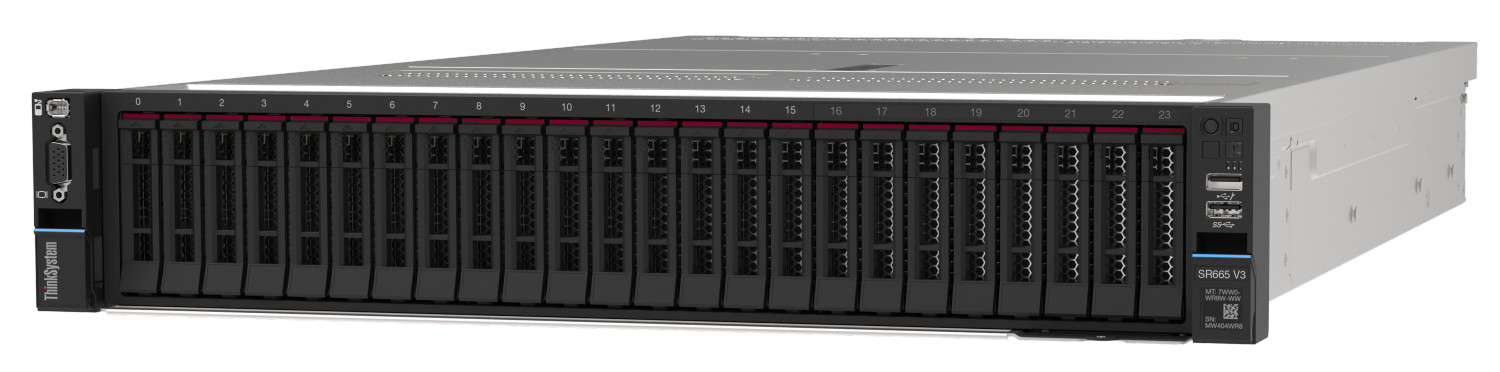

ThinkSystem SR665 V3
Model ThinkSystem SR665 V3Part no. 7D9A1003EAEAN 022107053000
46 specifications
- ProcessorAMD EPYC
- Memory32 GB
- OSNo
- ColourBlack
- Processor manufacturerAMD
- RAID supportYes
Overview
- Processor
- AMD EPYC
- Memory
- 32 GB
- OS
- No
- Colour
- Black
- Processor manufacturer
- AMD
- RAID support
- Yes
- Brand
- Lenovo
- Category
- Server
- Model
- ThinkSystem SR665 V3
- Part numbers
- 7D9A1003EA, 7D9AA03PEA
- EAN / UPC
- 022107053000
- Also known as
- Lenovo ThinkSystem SR665 V3 server Rack (2U) AMD EPYC 9115 2.6 GHz 32 GB DDR5-SDRAM 750 W
Specifications
46 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor model | 9115 |
| Processor frequency | 2.6 GHz |
| Processor boost frequency | 4.1 GHz |
| Processor cores | 16 |
| Processor cache | 64 MB |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
Storage
| Specification | Value |
|---|---|
| RAID support | Yes |
| Supported RAID controllers | 940-8i 4GB |
| Internal drive bays | 8 |
| Optical drive type | No |
| Supported storage drive interfaces | SAS |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 16 MB |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black |
| Rack mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Performance management | XClarity Controller Platinum |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 750 W |
| Number of redundant power supplies installed | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 8 - 90% |
| Operating altitude | 0 - 3050 m |
Certificates
| Specification | Value |
|---|---|
| 80 PLUS certification | 80 PLUS Titanium |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 445 mm |
| Depth | 766 mm |
| Height | 87 mm |
Technical details
| Specification | Value |
|---|---|
| Supported storage drives form factor (internal) | 2.5" |
