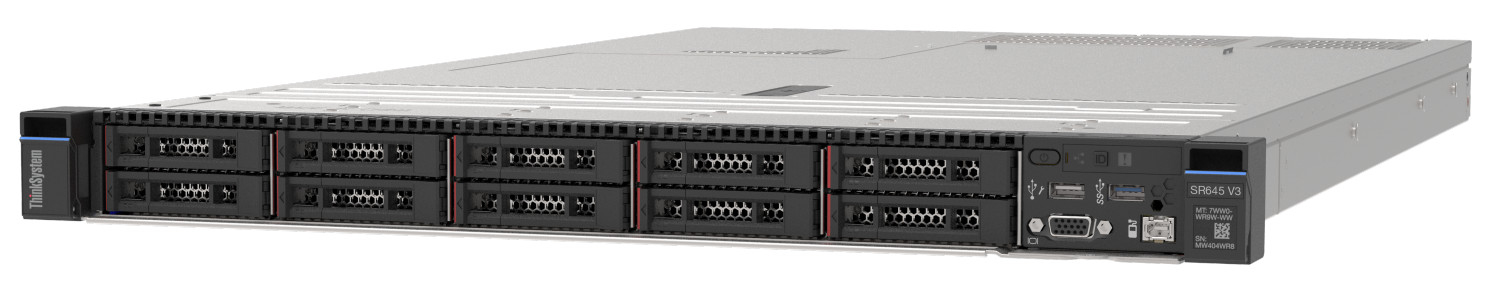

ThinkSystem SR645 V3 9135 32GB
Model ThinkSystem SR645 V3 9135 32GBPart no. 7D9CA038EA
49 specifications
- ProcessorAMD EPYC
- Memory32 GB
- Storage0 GB
- OSNo
- Weight20.2 kg
- ColourBlack, Metallic
Overview
- Processor
- AMD EPYC
- Memory
- 32 GB
- Storage
- 0 GB
- OS
- No
- Weight
- 20.2 kg
- Colour
- Black, Metallic
- Brand
- Lenovo
- Category
- Server
- Model
- ThinkSystem SR645 V3 9135 32GB
- Part number
- 7D9CA038EA
- Also known as
- Lenovo ThinkSystem SR645 V3 9135 32GB server 0 GB Rack (1U) AMD EPYC 3.65 GHz DDR5-SDRAM 750 W
Specifications
49 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor model | 9135 |
| Processor frequency | 3.65 GHz |
| Processor boost frequency | 4.3 GHz |
| Processor cores | 16 |
| Processor cache | 64 MB |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 200 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| ECC | Yes |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 0 GB |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Supported RAID controllers | 940-8i 4GB |
| Internal drive bays | 8 |
| Optical drive type | No |
| Supported storage drive interfaces | SAS |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Maximum graphics card memory | 16 MB |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Metallic |
| Redundant fans support | Yes |
Performance
| Specification | Value |
|---|---|
| Performance management | XClarity Controller Platinum |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Microsoft Windows Server, Microsoft Windows 10 & 11, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server. |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 750 W |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 2 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 8 - 90% |
| Operating altitude | 0 - 3050 m |
Certificates
| Specification | Value |
|---|---|
| 80 PLUS certification | 80 PLUS Titanium |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 773 mm |
| Height | 43 mm |
| Weight | 20.2 kg |
Technical details
| Specification | Value |
|---|---|
| Supported storage drives form factor (internal) | 2.5" |
