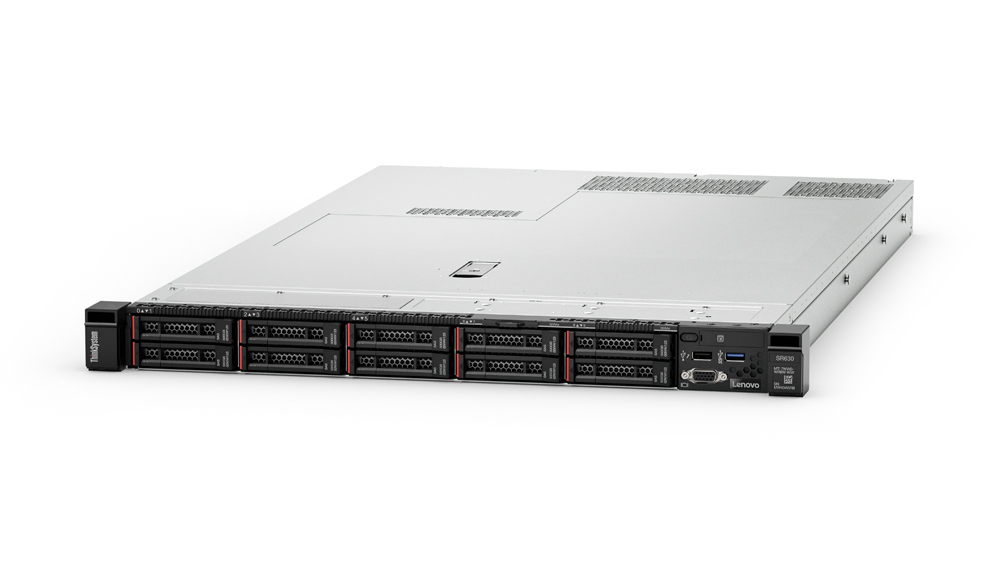

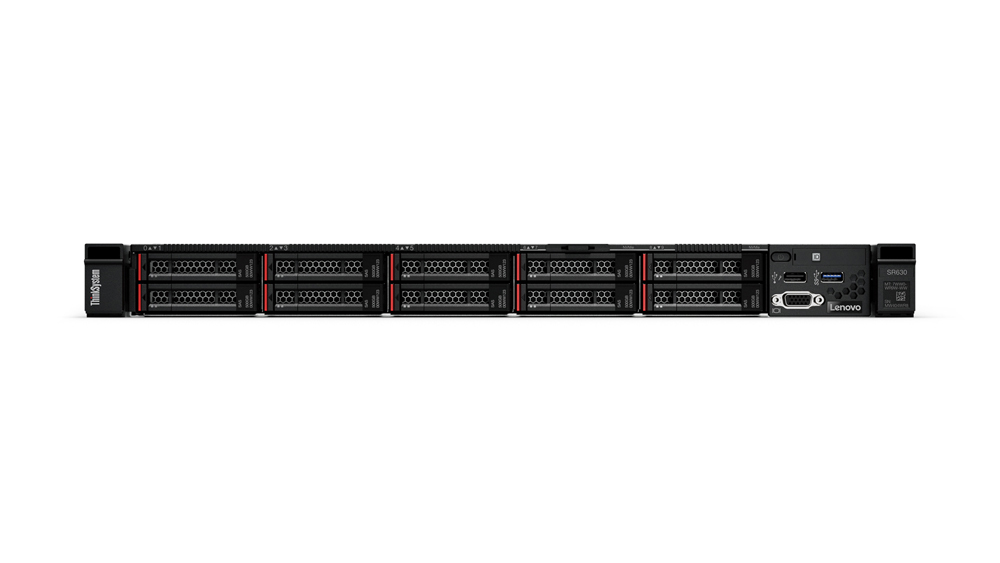

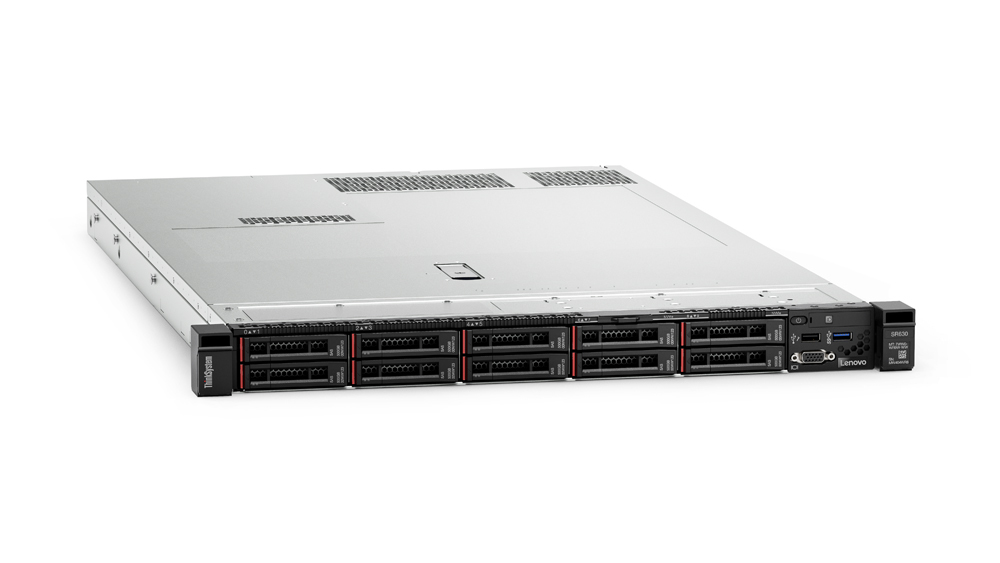

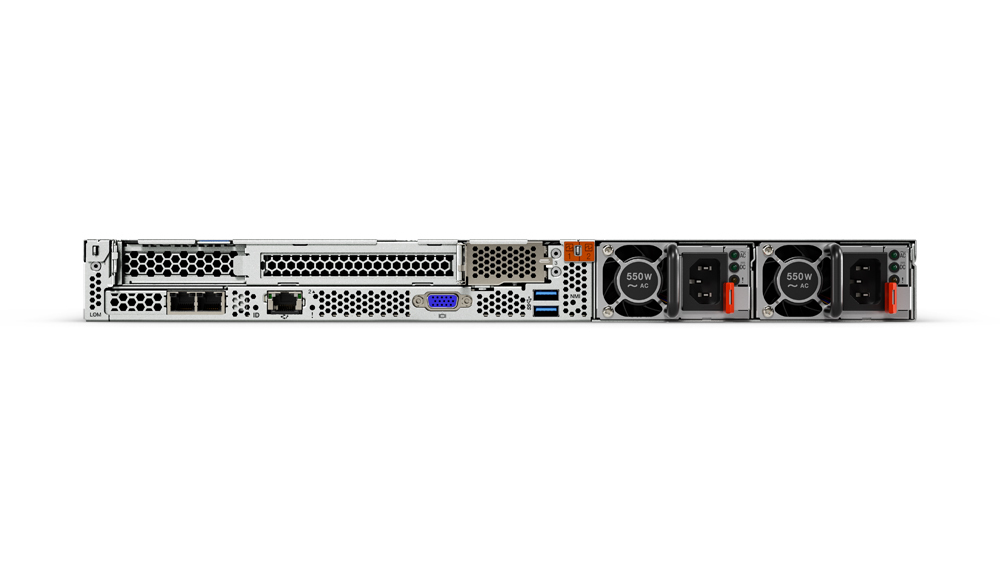

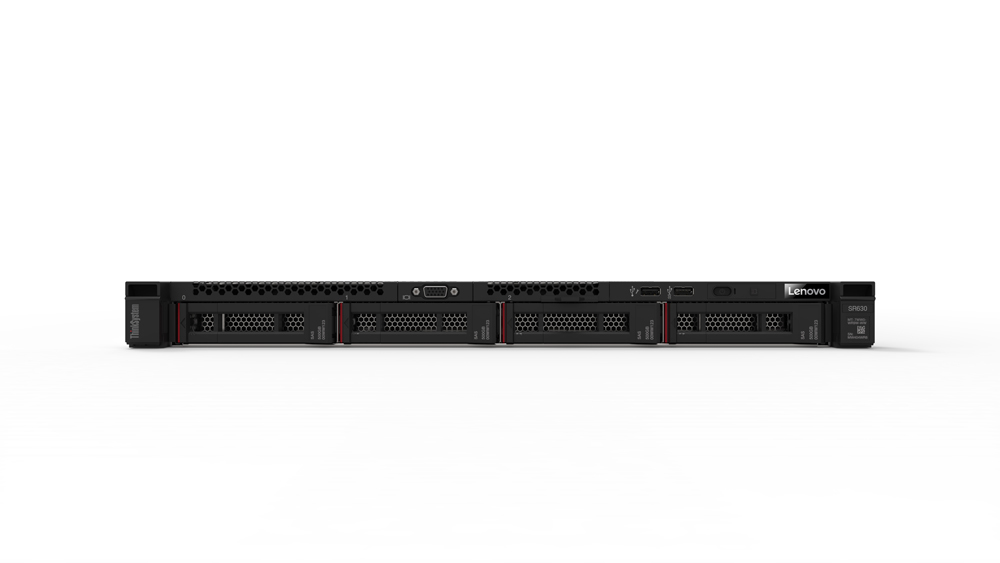

Lenovo ThinkSystem SR630
Model ThinkSystem SR630Part no. 7X02A04YNAEAN 889488440313
84 specifications
- ProcessorIntel® Xeon®
- Memory32 GB
- Storage0 GB
- Processor manufacturerIntel
- Maximum storage capacity61.4 TB
- Cabling technology10/100/1000Base-T(X)
Overview
- Processor
- Intel® Xeon®
- Memory
- 32 GB
- Storage
- 0 GB
- Processor manufacturer
- Intel
- Maximum storage capacity
- 61.4 TB
- Cabling technology
- 10/100/1000Base-T(X)
- Brand
- Lenovo
- Category
- Server
- Model
- ThinkSystem SR630
- Part numbers
- 7X02A04YNA, 7X02A01ANA, 7X02A01LNA, 7X02A01MNA, 7X02A01PNA, 7X02A01VNA +10 more
- EAN / UPC
- 889488440313, 889488439072, 889488439164, 889488439171 +12 more
- Also known as
- Lenovo ThinkSystem SR630 server 0 GB Rack (1U) Intel® Xeon® 6140 2.3 GHz 32 GB DDR4-SDRAM 750 W
Specifications
84 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor model | 6140 |
| Processor frequency | 2.3 GHz |
| Processor boost frequency | 3.7 GHz |
| Processor cores | 18 |
| Processor cache | 24.75 MB |
| Memory channels supported by processor | Hexa |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 140 W |
| Processor cache type | L3 |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Maximum number of PCI Express lanes | 48 |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Processor code | SR3AX |
| Processor codename | Skylake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 76.0 x 56.5 mm |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 36 |
| Scalability | S4S |
| Stepping | H0 |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Tcase | 91 °C |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 24x DIMM |
| Maximum internal memory | 3 TB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 61.4 TB |
| Total storage capacity | 0 GB |
| Supported HDD sizes | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Supported RAID controllers | 930-8i |
| Hot-swap | Yes |
| Optical drive type | No |
| Supported storage drive interfaces | SAS, Serial ATA III |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Rack mounting | Yes |
| Rack rails | Yes |
| Redundant fans support | Yes |
Performance
| Specification | Value |
|---|---|
| Performance management | XClarity Enterprise |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 1.2 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 120485 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 750 W |
| Number of redundant power supplies installed | 1 |
| Power supply input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 8 - 90% |
| Operating altitude | 0 - 3048 m |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Depth | 778.3 mm |
| Height | 43 mm |
