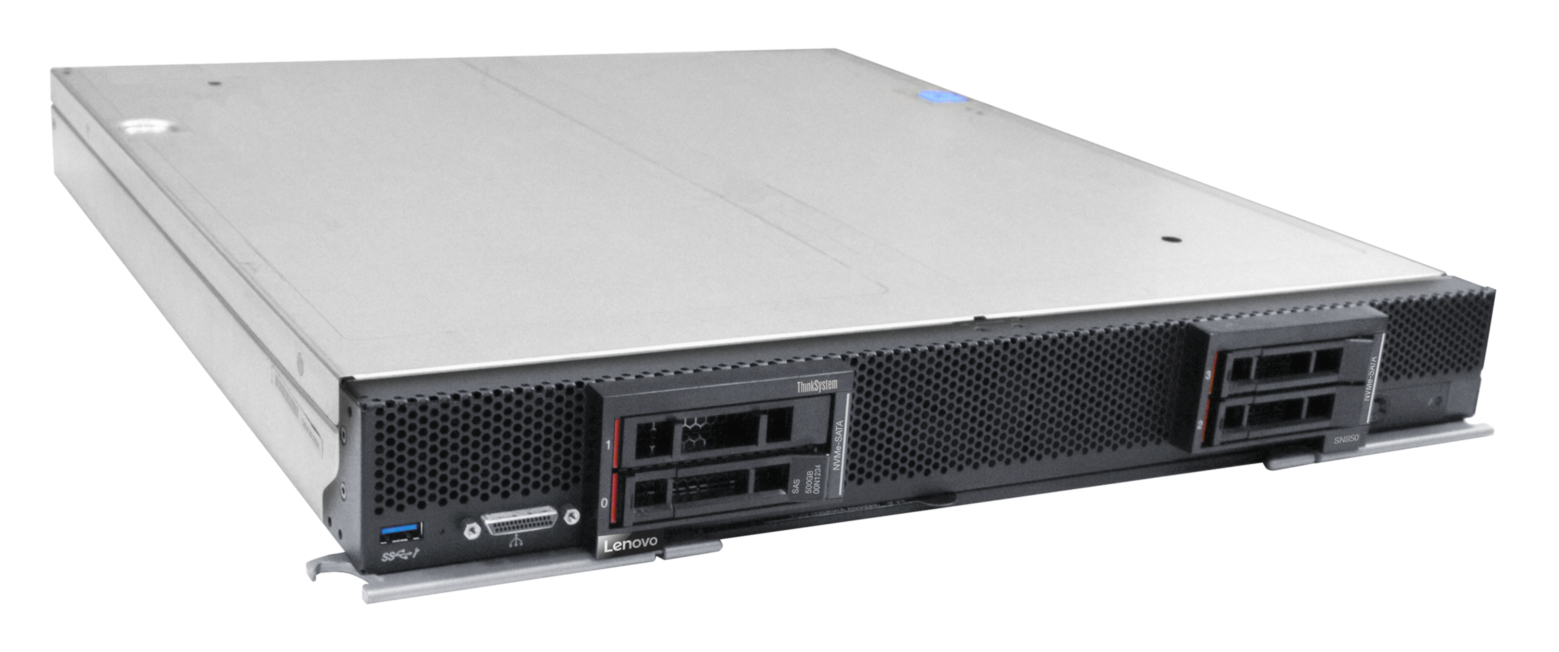

Lenovo ThinkSystem SN850
Model ThinkSystem SN850Part no. 7X15A02KEAEAN 889488445219
62 specifications
- ProcessorIntel® Xeon® Platinum
- Memory64 GB
- Weight7.1 kg
- Processor manufacturerIntel
- RAID supportYes
- USB 2.0 ports quantity0
Overview
- Processor
- Intel® Xeon® Platinum
- Memory
- 64 GB
- Weight
- 7.1 kg
- Processor manufacturer
- Intel
- RAID support
- Yes
- USB 2.0 ports quantity
- 0
- Brand
- Lenovo
- Category
- Server
- Model
- ThinkSystem SN850
- Part numbers
- 7X15A02KEA, 7X15A00BNA, 7X15A011NA, 7X15A014NA, 7X15A015NA, 7X15A016NA +11 more
- EAN / UPC
- 889488445219, 889488444489, 889488444700, 889488444731 +14 more
- Also known as
- Lenovo ThinkSystem SN850 server Intel® Xeon® Platinum 8170 2.1 GHz 64 GB DDR4-SDRAM
Specifications
62 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Platinum |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor model | 8170 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 3.7 GHz |
| Processor cores | 26 |
| Processor cache | 35.75 MB |
| Memory channels supported by processor | Hepta |
| Number of processors installed | 2 |
| Thermal Design Power (TDP) | 165 W |
| Processor cache type | L3 |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Maximum number of PCI Express lanes | 48 |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Processor code | SR37H |
| Processor codename | Skylake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 76.0 x 56.5 mm |
| Processor socket | LGA 3647 (Socket P) |
| Scalability | S8S |
| Stepping | H0 |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Tcase | 89 °C |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory slots | 24 |
Storage
| Specification | Value |
|---|---|
| RAID support | Yes |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 120506 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 8 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 215 mm |
| Depth | 493 mm |
| Height | 51 mm |
| Weight | 7.1 kg |
