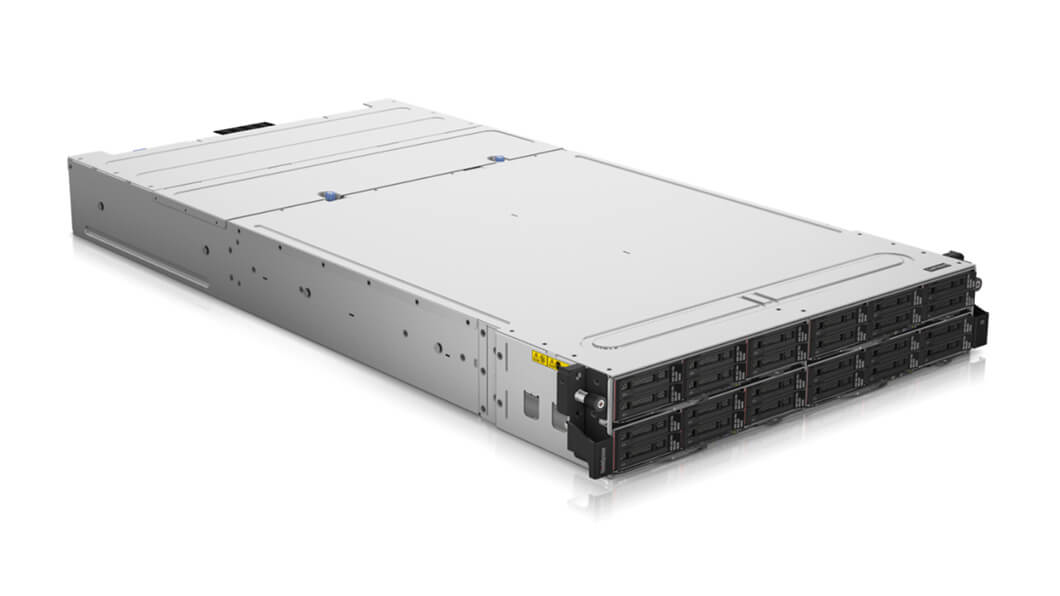

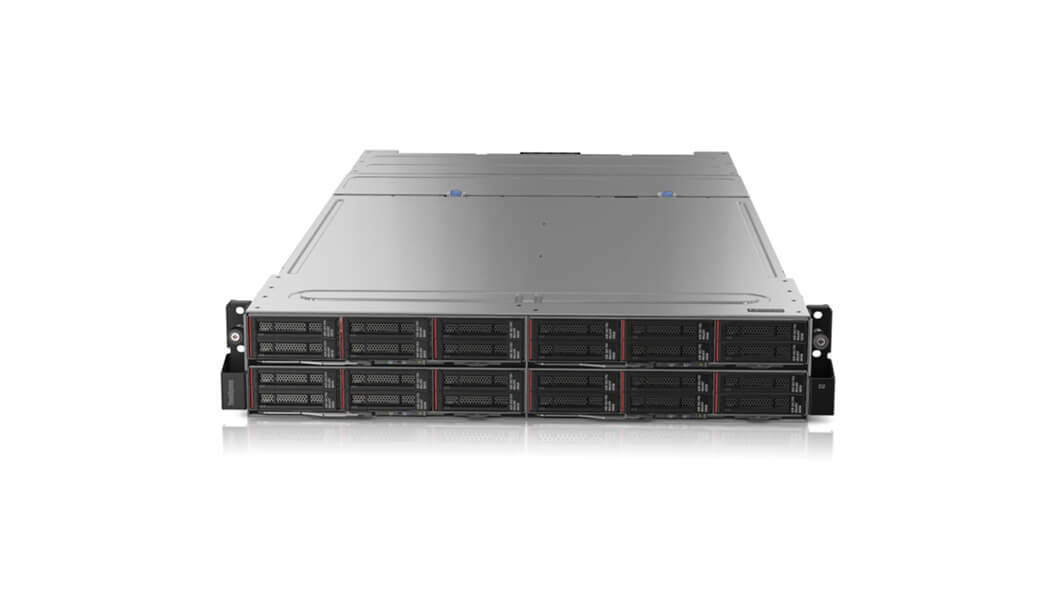

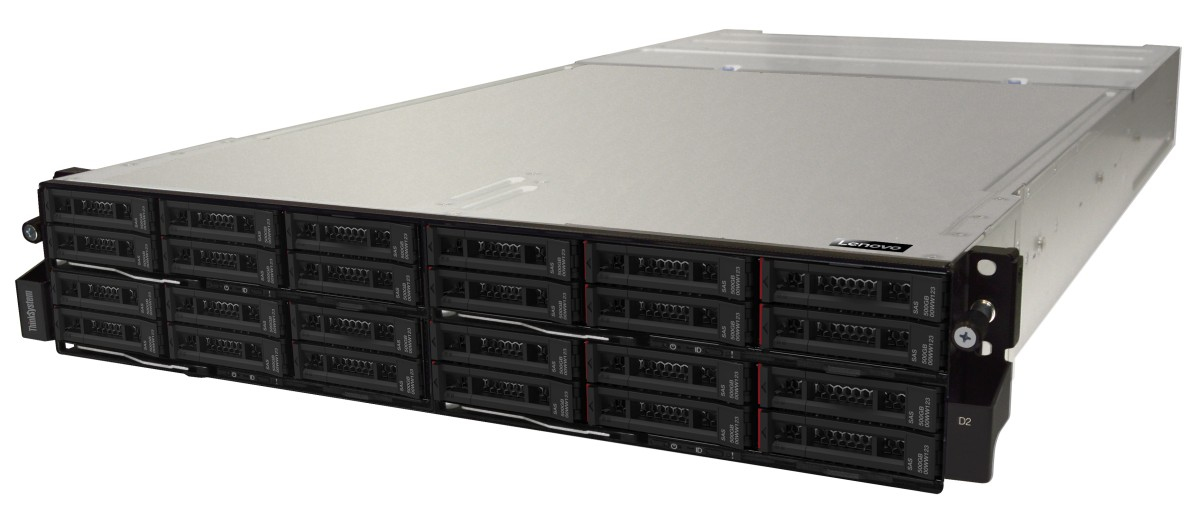

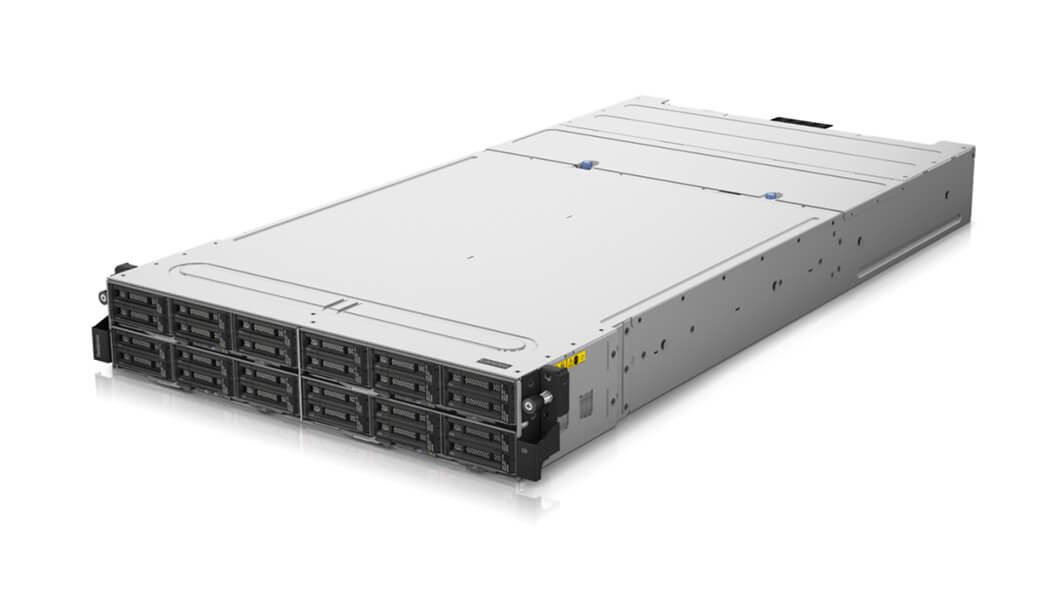

Lenovo ThinkSystem SD530
Model ThinkSystem SD530Part no. 7X21A00WEAEAN 889488448111
74 specifications
- ProcessorIntel® Xeon®
- Memory16 GB
- Storage0 GB
- Processor manufacturerIntel
- Maximum storage capacity46 TB
- Discrete graphics cardNo
Overview
- Processor
- Intel® Xeon®
- Memory
- 16 GB
- Storage
- 0 GB
- Processor manufacturer
- Intel
- Maximum storage capacity
- 46 TB
- Discrete graphics card
- No
- Brand
- Lenovo
- Category
- Server
- Model
- ThinkSystem SD530
- Part numbers
- 7X21A00WEA, 7X21A00YEA, 7X21A010EA, 7X21A013EA, 7X21A014EA, 7X21A018EA +13 more
- EAN / UPC
- 889488448111, 889488448135, 889488448159, 8894884481596 +5 more
- Also known as
- Lenovo ThinkSystem SD530 server 0 GB Rack (1U) Intel® Xeon® 3104 1.7 GHz 16 GB DDR4-SDRAM
Specifications
74 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor model | 3104 |
| Processor frequency | 1.7 GHz |
| Processor cores | 6 |
| Processor cache | 8.25 MB |
| Motherboard chipset | Intel® C624 |
| Memory channels supported by processor | Hexa |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 85 W |
| Processor cache type | L3 |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Maximum number of PCI Express lanes | 48 |
| Memory clock speeds supported by processor | 2133 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Processor code | SR3GM |
| Processor codename | Skylake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 76.0 x 56.5 mm |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 6 |
| Scalability | 2S |
| Stepping | U0 |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Tcase | 78 °C |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 46 TB |
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| Number of HDDs supported | 6 |
| Supported HDD sizes | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Hot-swap | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | No |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Rack mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 123546 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 45 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 222 mm |
| Depth | 562 mm |
| Height | 41 mm |
Other features
| Specification | Value |
|---|---|
| Built-in display | No |
| Integrated LAN | Yes |
