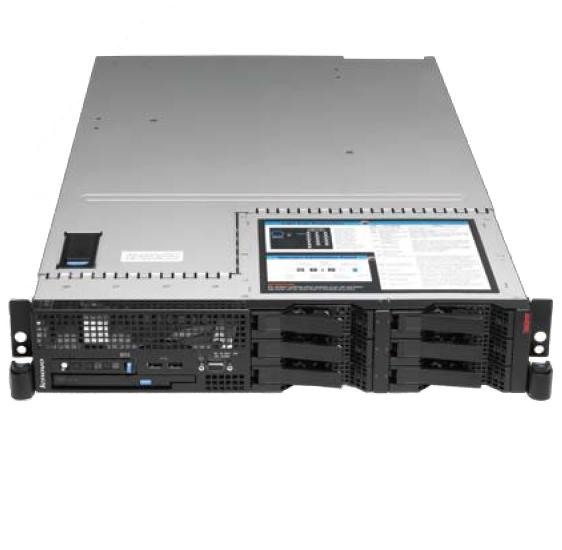

Lenovo ThinkServer RD120
Model ThinkServer RD120Part no. 644721UEAN 884343312583
93 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory4 GB
- Storage0 GB
- Weight29.5 kg
- Processor manufacturerIntel
- Ethernet LANYes
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 4 GB
- Storage
- 0 GB
- Weight
- 29.5 kg
- Processor manufacturer
- Intel
- Ethernet LAN
- Yes
- Brand
- Lenovo
- Category
- Server
- Model
- ThinkServer RD120
- Part number
- 644721U
- EAN / UPC
- 884343312583
- Also known as
- Lenovo ThinkServer RD120 server 0 GB Rack Intel® Xeon® 5000 Sequence E5430 2.66 GHz 4 GB DDR3-SDRAM 835 W
Specifications
93 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5430 |
| Processor frequency | 2.66 GHz |
| Processor cores | 4 |
| Processor cache | 12 MB |
| Motherboard chipset | Intel® 5000P |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | L2 |
| Bus type | FSB |
| CPU multiplier (bus/core ratio) | 8 |
| ECC supported by processor | No |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | Yes |
| Idle States | Yes |
| Number of Processing Die Transistors | 820 M |
| Processing Die size | 214 mm² |
| Processor code | SLBBK |
| Processor codename | Harpertown |
| Processor front side bus | 1333 MHz |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon 5400 Series |
| Processor socket | LGA 771 (Socket J) |
| Processor system type | DP |
| Processor threads | 4 |
| Stepping | E0 |
| Tcase | 67 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Memory clock speed | 667 MHz |
| Memory layout (slots x size) | 2 x 2 GB |
| Memory slots | 12x DIMM |
| Maximum internal memory | 48 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| HDD interface | Serial ATA |
| HDD size | 3.5" |
| Number of HDDs supported | 6 |
| RAID support | Yes |
| RAID levels | 5, 10 |
| Hot-swap | Yes |
| Optical drive type | DVD-ROM |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 6 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2003/Server 2008 Red Hat Enterprise Linux 5 SUSE LINUX Enterprise Server 10 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 33081 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power supply | 835 W |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 443.6 mm |
| Depth | 705 mm |
| Height | 85.4 mm |
| Weight | 29.5 kg |
Other features
| Specification | Value |
|---|---|
| CD read speed | 16x |
What people say
Reviews & ratings
Lenovo ThinkServer RD120
No reviews yet
Be the first to tell others how Lenovo ThinkServer RD120 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Lenovo ThinkServer RD120
All server comparisons- Lenovo ThinkServer RD120 vsLenovo TD200x + 45J6211Compare specs

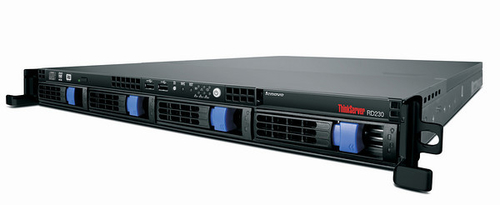

- Lenovo ThinkServer RD120 vsLenovo ThinkServer RD230 server Rack (2U) Intel® Xeon® 5000 Sequence E5506Compare specs
