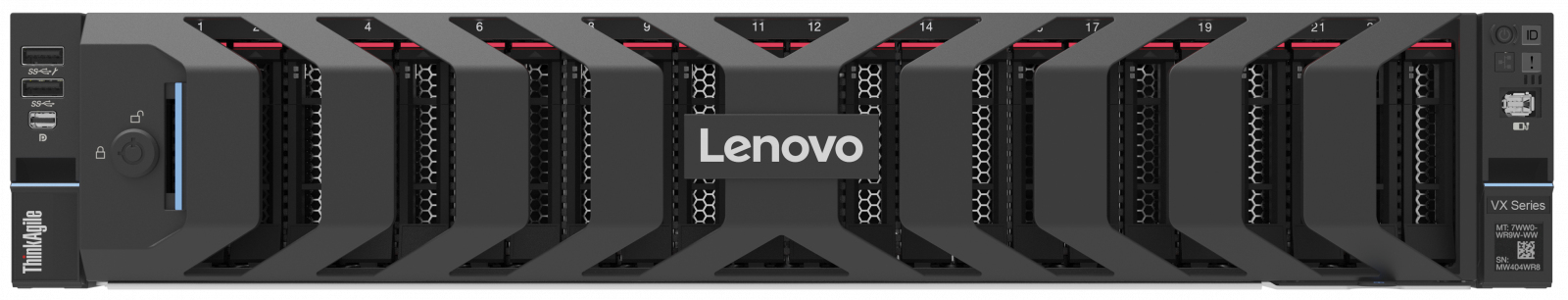

ThinkAgile VX650 V4
Model ThinkAgile VX650 V4Part no. 7DG6S1JN00
59 specifications
- ProcessorIntel® Xeon®
- Memory256 GB
- Storage21 TB
- OSNo
- Weight38.8 kg
- ColourBlack
Overview
- Processor
- Intel® Xeon®
- Memory
- 256 GB
- Storage
- 21 TB
- OS
- No
- Weight
- 38.8 kg
- Colour
- Black
- Brand
- Lenovo
- Category
- Server
- Model
- ThinkAgile VX650 V4
- Part number
- 7DG6S1JN00
- Also known as
- Lenovo ThinkAgile VX650 V4 server 21 TB Rack (2U) Intel® Xeon® 6517P 3.2 GHz 256 GB DDR5-SDRAM 1300 W
Specifications
59 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | 6517P |
| Processor frequency | 3.2 GHz |
| Processor boost frequency | 4.2 GHz |
| Processor cores | 16 |
| Processor cache | 72 MB |
| Number of processors installed | 2 |
| Thermal Design Power (TDP) | 190 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 256 GB |
| Internal memory type | DDR5-SDRAM |
| ECC | Yes |
| Memory clock speed | 6400 MHz |
| Memory slots | 32x DIMM |
| Maximum internal memory | 8 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 21 TB |
| Number of SSDs installed | 7 |
| SSD capacity | 21 TB |
| NVMe | Yes |
| RAID support | Yes |
| Supported RAID controllers | B550i-2i |
| Hot-swap | Yes |
| Internal drive bays | 24 |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| On-board graphics card model | Not available |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| LAN controller | Broadcom 57504, Broadcom 5719 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| SFP/SFP+ slots quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black |
| Rack rails | Yes |
| Redundant fans support | Yes |
Performance
| Specification | Value |
|---|---|
| Remote administration | XCC3 Premier |
| Performance management | Lenovo XClarity |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 1300 W |
| Number of redundant power supplies supported | 2 |
| Number of main power supplies | 2 |
| Power supply input voltage | 115 - 230 V |
| Power cable length | 2.8 m |
| Power cable connector 1 | C13 coupler |
| Power cable connector 2 | C14 coupler |
| Power cable current | 13 A |
Certificates
| Specification | Value |
|---|---|
| 80 PLUS certification | 80 PLUS Titanium |
| Certification | ANSI/UL 62368-1 IEC 62368-1 (CB Certificate and CB Test Report) CSA C22.2 No. 62368-1 Argentina IEC 62368-1 Mexico NOM-019 India BIS 13252 (Part 1) Germany GS TUV-GS (EN62368-1, and EK1-ITB2000) Brazil INMETRO South Africa NRCS LOA Ukraine UkrCEPRO Morocco CMIM Certification (CM) Russia, Belorussia |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 445 mm |
| Depth | 796 mm |
| Height | 87 mm |
| Weight | 38.8 kg |
Technical details
| Specification | Value |
|---|---|
| Supported storage drives form factor (internal) | 2.5" |
Other features
| Specification | Value |
|---|---|
| Fibre Channel | Yes |
| Open Compute Project (OCP) | OCP 3.0 |
