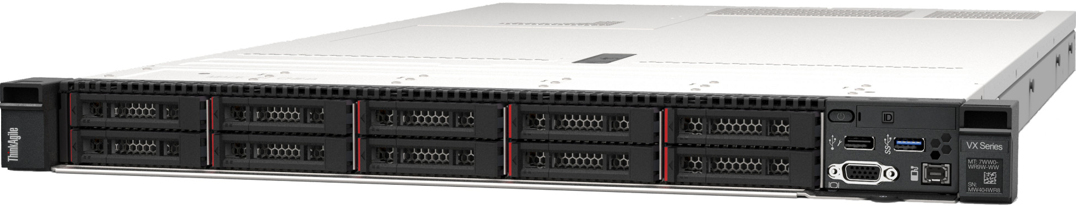

ThinkAgile VX635 V3
Model ThinkAgile VX635 V3Part no. 7D9VS03K00
57 specifications
- ProcessorAMD EPYC
- Memory512 GB
- Storage7.68 TB
- Weight20.2 kg
- ColourBlack, Silver
- Processor manufacturerAMD
Overview
- Processor
- AMD EPYC
- Memory
- 512 GB
- Storage
- 7.68 TB
- Weight
- 20.2 kg
- Colour
- Black, Silver
- Processor manufacturer
- AMD
- Brand
- Lenovo
- Category
- Server
- Model
- ThinkAgile VX635 V3
- Part number
- 7D9VS03K00
- Also known as
- Lenovo ThinkAgile VX635 V3 server 7.68 TB Rack (1U) AMD EPYC 9124 3 GHz 512 GB DDR5-SDRAM 1100 W
Specifications
57 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor model | 9124 |
| Processor frequency | 3 GHz |
| Processor boost frequency | 3.7 GHz |
| Processor cores | 16 |
| Processor cache | 64 MB |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 200 W |
| Processor threads | 32 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 512 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 8 x 64 GB |
| Memory slots | 12x DIMM |
| Maximum internal memory | 1.5 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 7.68 TB |
| Number of SSDs installed | 5 |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD size | 2.5", M.2 |
| Hot-swap | Yes |
| Internal drive bays | 10 |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Maximum graphics card memory | 16 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| LAN controller | Mellanox ConnectX-6 Lx |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| SFP/SFP+ slots quantity | 2 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Power cables quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Silver |
| Bezel | Yes |
| Rack rails | Yes |
| Redundant fans support | Yes |
Performance
| Specification | Value |
|---|---|
| Performance management | XClarity Pro XCC Platinum |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | VMware ESXi 7.0 U3 VMware ESXi 8 ESXi 8.0u3 (Factory Installed) |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 1100 W |
| Number of redundant power supplies installed | 2 |
| Power cable length | 2.8 m |
| Power cable connector 1 | C13 coupler |
| Power cable connector 2 | C14 coupler |
| Power cable current | 13 A |
Certificates
| Specification | Value |
|---|---|
| 80 PLUS certification | 80 PLUS Titanium |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 773 mm |
| Height | 43 mm |
| Weight | 20.2 kg |
Technical details
| Specification | Value |
|---|---|
| Supported storage drives form factor (rear) | 2.5" |
