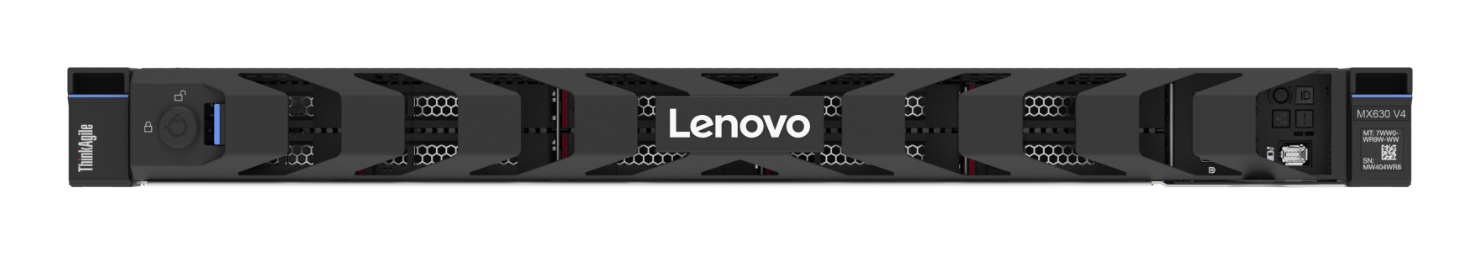

ThinkAgile MX630 V4
Model ThinkAgile MX630 V4Part no. 7DFGCTO1WW
42 specifications
- ProcessorIntel® Xeon®
- Memory64 GB
- Storage4.32 TB
- Weight20.2 kg
- ColourBlack
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon®
- Memory
- 64 GB
- Storage
- 4.32 TB
- Weight
- 20.2 kg
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- Lenovo
- Category
- Server
- Model
- ThinkAgile MX630 V4
- Part numbers
- 7DFGCTO1WW, 7DFGS17W00
- Also known as
- Lenovo ThinkAgile MX630 V4 server 4.32 TB Rack (1U) Intel® Xeon® 6515P 2.3 GHz 64 GB DDR5-SDRAM 1300 W
Specifications
42 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | 6515P |
| Processor frequency | 2.3 GHz |
| Processor boost frequency | 3.8 GHz |
| Processor cores | 16 |
| Processor cache | 72 MB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 6400 MHz |
| Maximum internal memory | 8 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 4.32 TB |
| Number of SSDs installed | 2 |
| NVMe | Yes |
| SSD size | 2.5", M.2 |
| RAID support | Yes |
| Hot-swap | Yes |
| Internal drive bays | 10 |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black |
| Cooling type | Active |
| Redundant fans support | Yes |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 1300 W |
| Power supply input voltage | 115 - 230 V |
| Power cable length | 2.8 m |
| Power cable connector 1 | C13 coupler |
| Power cable connector 2 | C14 coupler |
| Power cable current | 13 A |
Certificates
| Specification | Value |
|---|---|
| 80 PLUS certification | 80 PLUS Titanium |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 788 mm |
| Height | 43 mm |
| Weight | 20.2 kg |
