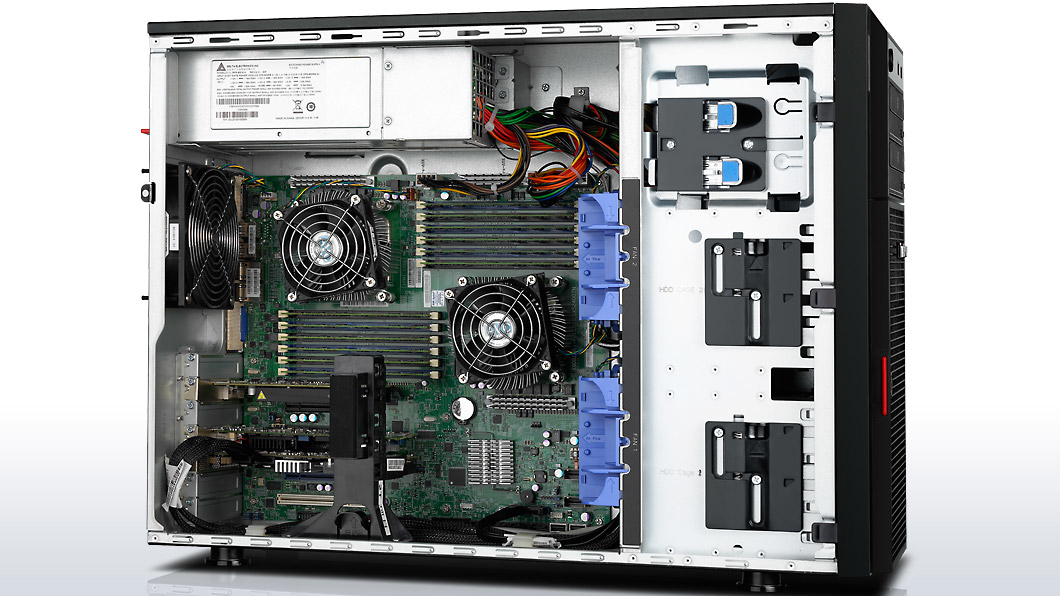

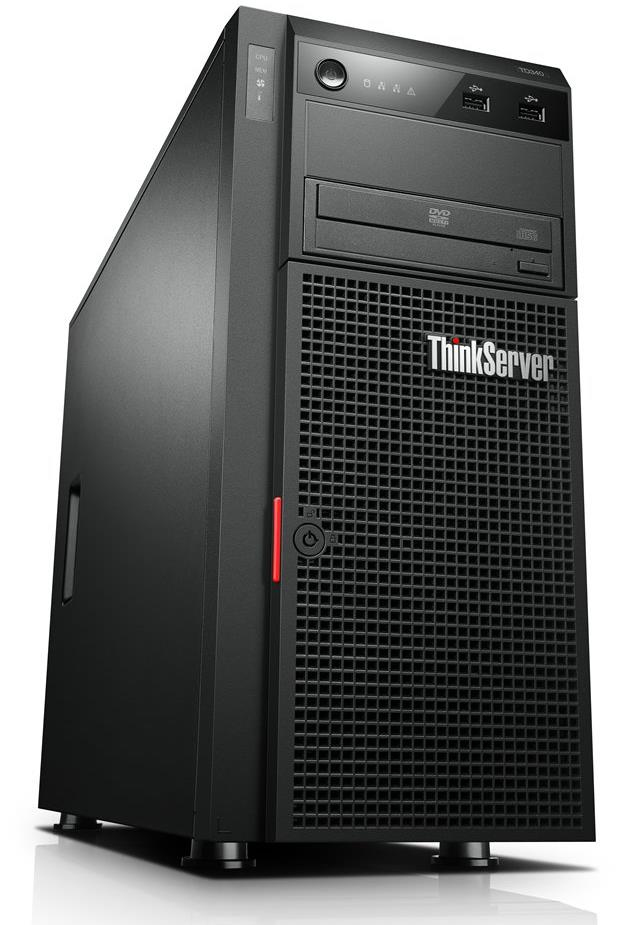

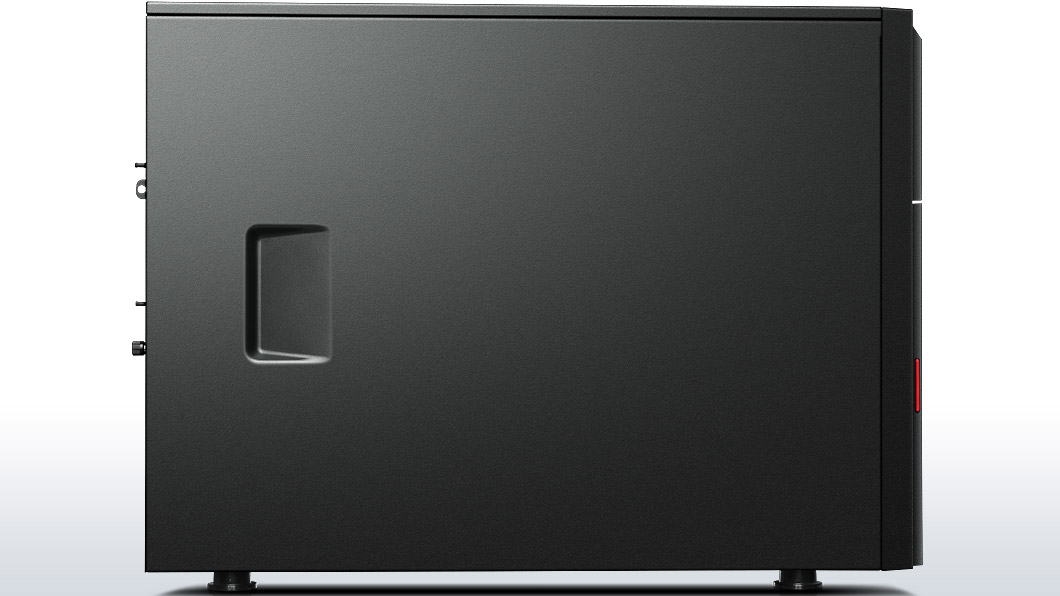

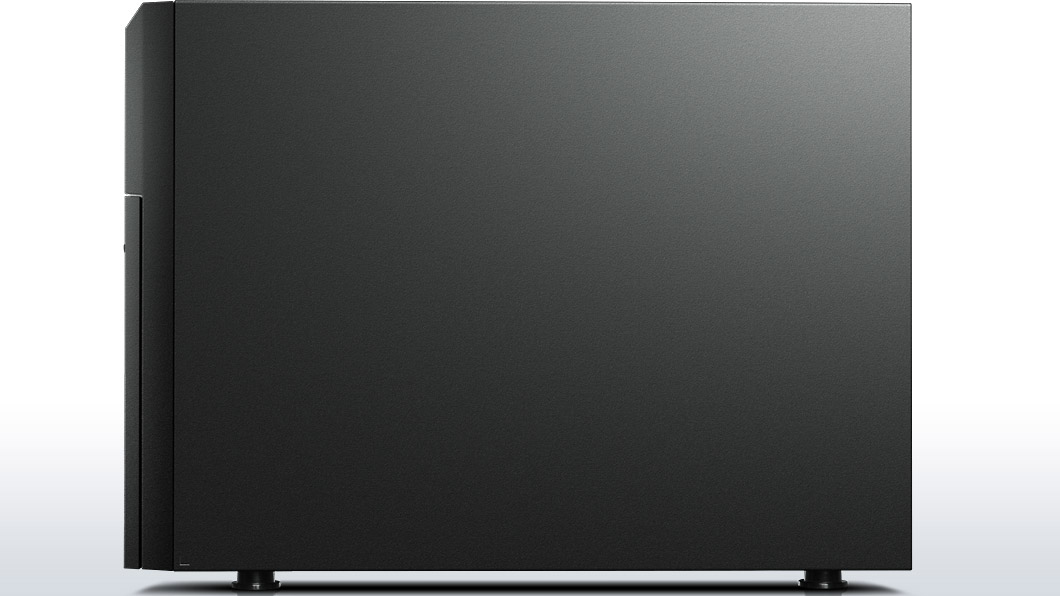

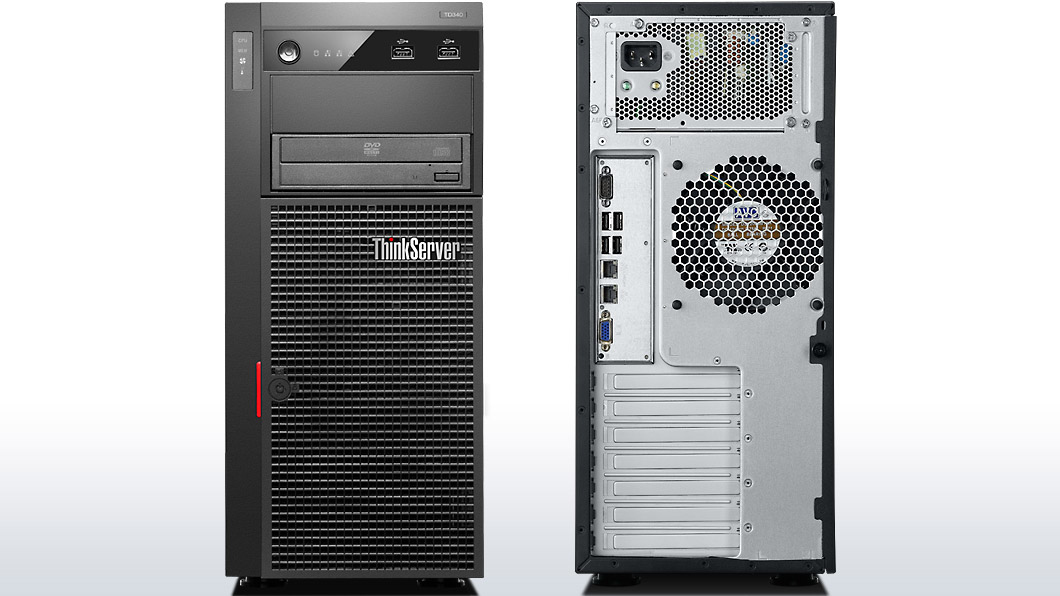

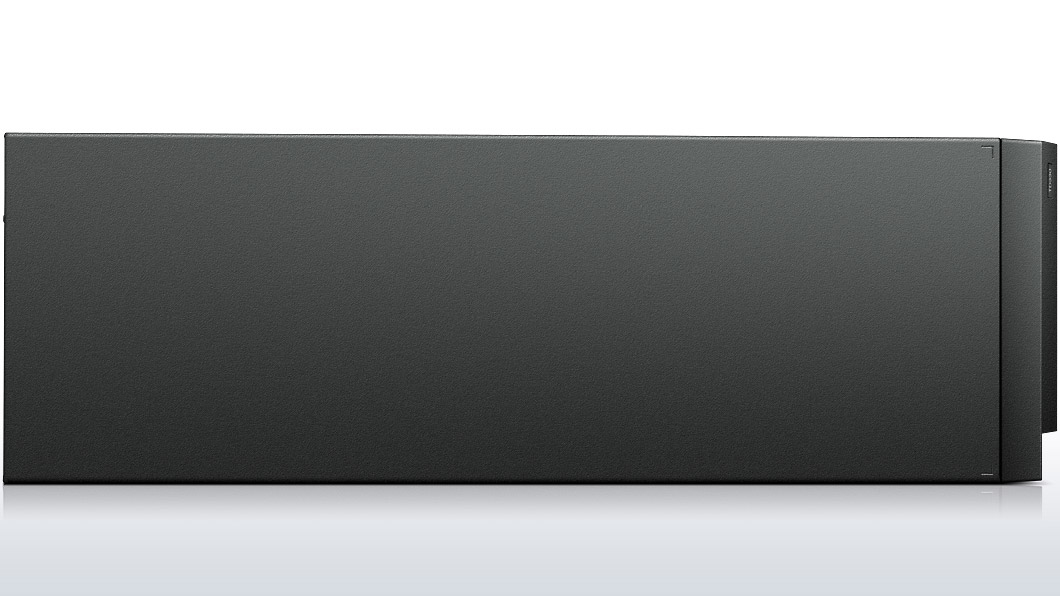

Lenovo ThinkServer TD340 server
0 GB Tower (5U) Intel® Xeon® E5 Family E5-2403 1.8 GHz 4 GB DDR3L-SDRAM
Model TD340Part no. 70B7002FSPEAN 888440270616
106 specifications
- ProcessorIntel® Xeon® E5 Family
- Memory4 GB
- Storage0 GB
- OSNo
- Weight28 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon® E5 Family
- Memory
- 4 GB
- Storage
- 0 GB
- OS
- No
- Weight
- 28 kg
- Processor manufacturer
- Intel
- Brand
- Lenovo
- Category
- Server
- Model
- TD340
- Part numbers
- 70B7002FSP, 70B50007IT, 70B7000AIT, 70B7002FIT, 70B7000GGE, 70B50007SP +34 more
- EAN / UPC
- 888440270616, 888440249643, 888440269948, 888440267067 +56 more
- Also known as
- Lenovo ThinkServer TD340 server 0 GB Tower (5U) Intel® Xeon® E5 Family E5-2403 1.8 GHz 4 GB DDR3L-SDRAM
Specifications
106 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-2403 |
| Processor frequency | 1.8 GHz |
| Processor cores | 4 |
| Processor cache | 10 MB |
| Memory channels supported by processor | Triple |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | Smart Cache |
| System bus rate | 6.4 GT/s |
| Bus type | QPI |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 375 GB |
| Maximum number of PCI Express lanes | 24 |
| Maximum number of SMP processors | 2 |
| Memory bandwidth supported by processor (max) | 25 GB/s |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Number of QPI links | 1 |
| Processor code | SR0LS |
| Processor codename | Sandy Bridge EN |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 45 x 42.5 mm |
| Processor series | Intel Xeon E5-2400 |
| Processor socket | LGA 1356 (Socket B2) |
| Processor threads | 4 |
| Scalability | 2S |
| Stepping | M1 |
| Supported instruction sets | AVX |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3L-SDRAM |
| ECC | Yes |
| Memory clock speed | 1600 MHz |
| Memory slots | 12 |
| Maximum internal memory | 192 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 32 TB |
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| HDD size | 3.5" |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Hot-swap | Yes |
| Optical drive type | DVD-RW |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express slots version | 3.0 |
| PCI slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower (5U) |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows Server 2012 R2 Windows Server 2012 Windows Server 2008 R2 Windows Server 2008 Windows Small Business Server 2011 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux Server VMware ESXi Citrix XenServer |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 64615 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Number of main power supplies | 1 |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 194.8 mm |
| Depth | 594.8 mm |
| Height | 429.7 mm |
| Weight | 28 kg |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
What people say
Reviews & ratings
Lenovo ThinkServer TD340 server
No reviews yet
Be the first to tell others how Lenovo ThinkServer TD340 server works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Lenovo ThinkServer TD340 server

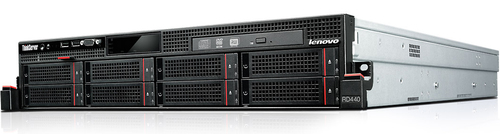

All server comparisons- Lenovo ThinkServer TD340 server vsLenovo ThinkServer RD440 serverCompare specs
- Lenovo ThinkServer TD340 server vsLenovo 3650 M4 BDCompare specs
- Lenovo ThinkServer TD340 server vsLenovo Flex System x222 server Rack Intel® Xeon® E5 Family E5-2450Compare specs
- Lenovo ThinkServer TD340 server vsLenovo 3650 M4Compare specs

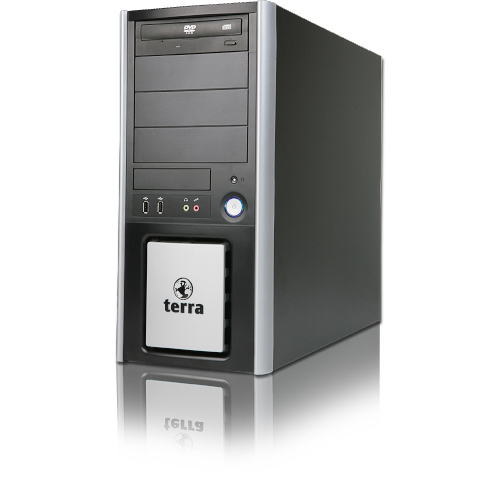

- Lenovo ThinkServer TD340 server vsTERRA Y TERRA SERVER 4330Compare specs
