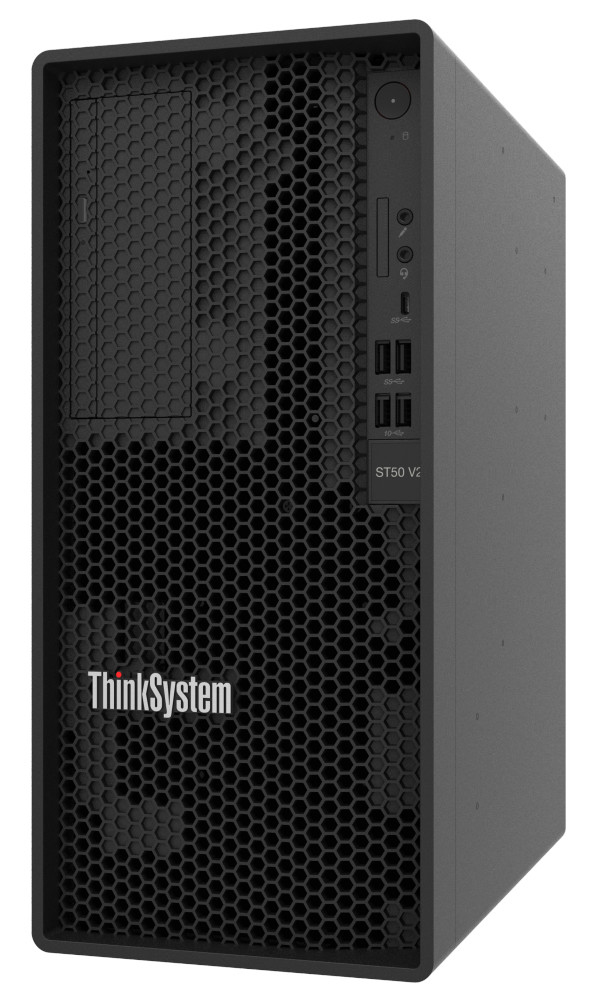

ST50 V2 + Windows Server 2022 Standard
Model ST50 V2 + Windows Server 2022 StandardPart no. 7D8JA043EAWST2022Q324
46 specifications
- ProcessorIntel Xeon E
- Memory16 GB
- Storage1.92 TB
- OSWindows Server 2022 Standard
- Weight9.4 kg
- ColourBlack
Overview
- Processor
- Intel Xeon E
- Memory
- 16 GB
- Storage
- 1.92 TB
- OS
- Windows Server 2022 Standard
- Weight
- 9.4 kg
- Colour
- Black
- Brand
- Lenovo
- Category
- Server
- Model
- ST50 V2 + Windows Server 2022 Standard
- Part numbers
- 7D8JA043EAWST2022Q324, 7D8JA045EAWST2022Q324
- Also known as
- Lenovo ThinkSystem ST50 V2 + Windows 2022 Standard server 1.92 TB Tower Intel Xeon E E-2324G 3.1 GHz 16 GB DDR4-SDRAM 500 W Windows Server 2022 Standard
Specifications
46 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2324G |
| Processor frequency | 3.1 GHz |
| Processor boost frequency | 4.6 GHz |
| Processor cache | 8 MB |
| Motherboard chipset | Intel C256 |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 4x DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.92 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 960 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel UHD Graphics P750 |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I219-LM |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Server 2022 Standard |
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, VMware ESXi |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 500 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 8 - 90% |
| Operating altitude | 0 - 3050 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 316 mm |
| Height | 376 mm |
| Weight | 9.4 kg |
