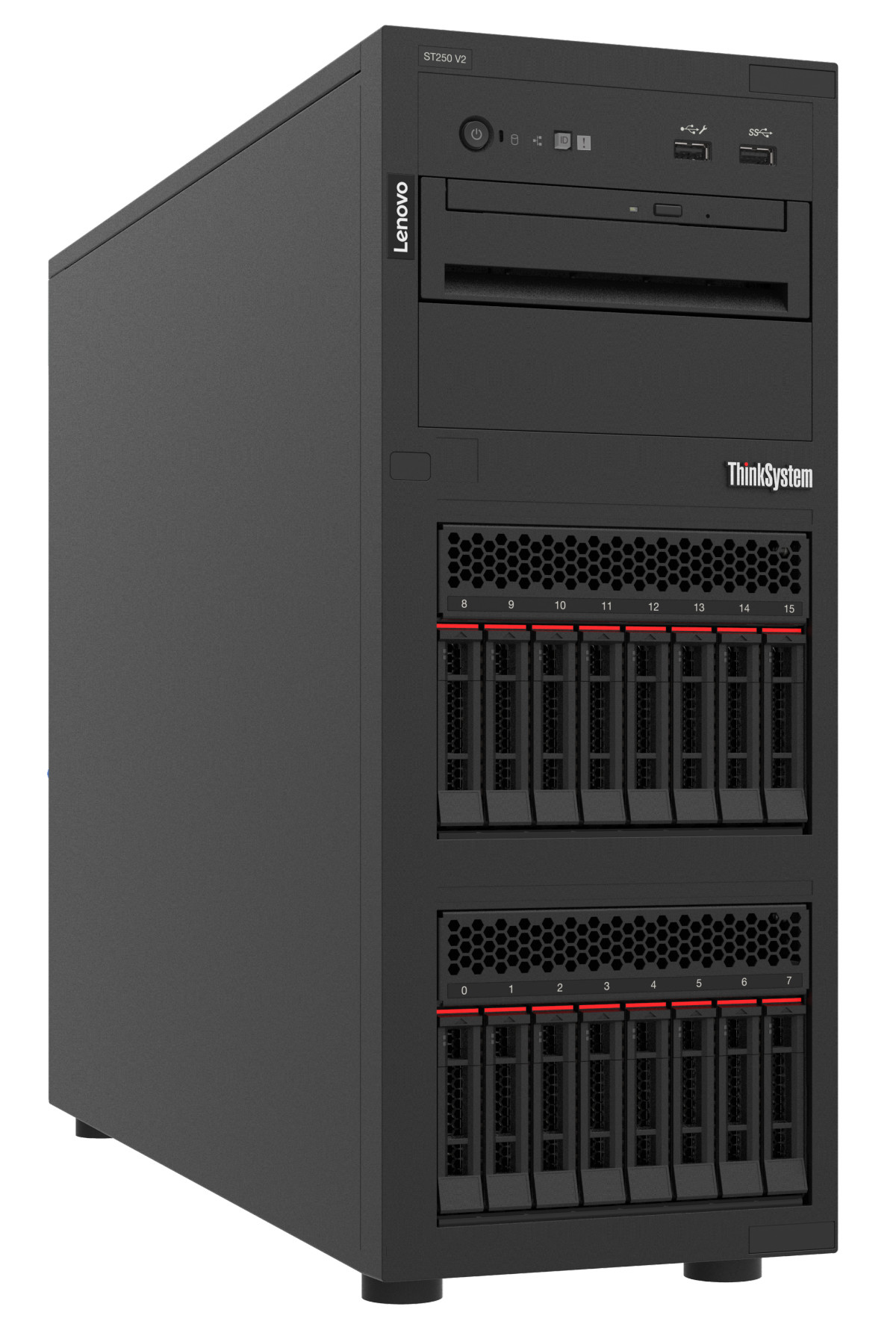

ST250 V2 + Windows Server 2022 Essentials ROK
Model ST250 V2 + Windows Server 2022 Essentials ROKPart no. 7D8FA01LEAWES2022Q324
49 specifications
- ProcessorIntel Xeon E
- Memory32 GB
- Storage0 GB
- Noise27.6 dB
- OSWindows Server 2022 Essentials
- Weight23.6 kg
Overview
- Processor
- Intel Xeon E
- Memory
- 32 GB
- Storage
- 0 GB
- Noise
- 27.6 dB
- OS
- Windows Server 2022 Essentials
- Weight
- 23.6 kg
- Brand
- Lenovo
- Category
- Server
- Model
- ST250 V2 + Windows Server 2022 Essentials ROK
- Part numbers
- 7D8FA01LEAWES2022Q324, 7D8FA01YEAWES2022Q324
- Also known as
- Lenovo ThinkSystem ST250 V2 + Windows 2022 Essentials ROK server 0 GB Tower Intel Xeon E E-2356G 3.2 GHz 32 GB DDR4-SDRAM 750 W Windows Server 2022 Essentials
Specifications
49 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2356G |
| Processor frequency | 3.2 GHz |
| Processor boost frequency | 5 GHz |
| Processor cores | 6 |
| Processor cache | 12 MB |
| Motherboard chipset | Intel C256 |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 4x DIMM |
| Maximum internal memory | 128 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 0 GB |
| RAID support | Yes |
| Supported RAID controllers | 5350-8i |
| Internal drive bays | 8 |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics P750 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Remote administration | XCC Enterprise |
| Noise level | 27.6 dB |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Server 2022 Essentials |
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 750 W |
| Number of main power supplies | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 8 - 90% |
| Operating altitude | 0 - 3050 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 176 mm |
| Depth | 578 mm |
| Height | 444 mm |
| Weight | 23.6 kg |
