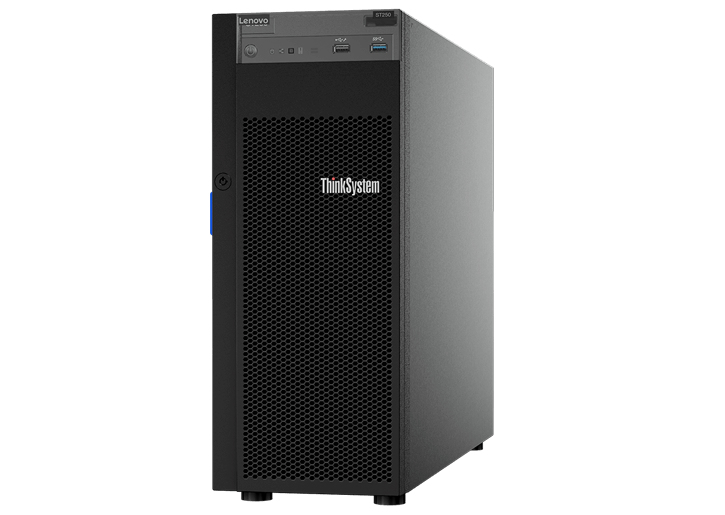

ThinkSystem ST250 server
2 TB Tower (4U) Intel® Xeon® E-2124 3.3 GHz 16 GB DDR4-SDRAM 550 W
Model ST250Part no. 7Y46A005NAEAN 7612392343271
126 specifications
- ProcessorIntel® Xeon®
- Memory16 GB
- Storage2 TB
- OSNo
- ColourBlack
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon®
- Memory
- 16 GB
- Storage
- 2 TB
- OS
- No
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- Lenovo
- Category
- Server
- Model
- ST250
- Part numbers
- 7Y46A005NA, 7Y46A013NA, 7Y46A008NA, 7Y46A00RNA, 7Y45A01RAU, 7Y45A01LAU +34 more
- EAN / UPC
- 7612392343271, 889488498550, 889488515820, 889488526659 +25 more
- Also known as
- Lenovo ThinkSystem ST250 server 2 TB Tower (4U) Intel® Xeon® E-2124 3.3 GHz 16 GB DDR4-SDRAM 550 W
Specifications
126 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | E-2124 |
| Processor frequency | 3.3 GHz |
| Processor boost frequency | 4.3 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 71 W |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Bus type | DMI3 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Maximum internal memory supported by processor | 128 GB |
| Maximum number of PCI Express lanes | 16 |
| Memory bandwidth supported by processor (max) | 41.6 GB/s |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Processor codename | Coffee Lake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor socket | LGA 1151 (Socket H4) |
| Processor threads | 4 |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Tjunction | 100 °C |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 4 |
| Maximum internal memory | 64 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Number of HDDs installed | 2 |
| HDD capacity | 1 TB |
| HDD interface | Serial ATA III |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Number of HDDs supported | 16 |
| Supported HDD sizes | 2.5,3.5,5.25" |
| Supported SSD sizes | M.2 |
| Number of SSDs supported | 1 |
| Hot-swap | Yes |
| Drive device, transfer rate | 6000 MB/s |
| Optical drive type | DVD±RW |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Not available |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| DisplayPorts quantity | 0 |
| Dual Link DVI | No |
| FireWire 800 | No |
| Firewire (IEEE 1394) ports | 0 |
| Integrated SAS ports | 0 |
| Internal FireWire ports quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| PS/2 ports quantity | 0 |
| Parallel ports quantity | 0 |
| S/PDIF in port | No |
| S/PDIF out port | No |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| eSATA ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 0 |
| PCI Express x1 (Gen 1.x) slots | 0 |
| PCI Express x1 (Gen 2.x) slots | 0 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x4 slots | 0 |
| PCI Express x4 (Gen 1.x) slots | 0 |
| PCI Express x4 (Gen 2.x) slots | 0 |
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x8 slots | 0 |
| PCI Express x8 (Gen 1.x) slots | 0 |
| PCI Express x8 (Gen 2.x) slots | 0 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 slots | 0 |
| PCI Express x16 (Gen 1.x) slots | 0 |
| PCI Express x16 (Gen 2.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| AGP x4 slots | 0 |
| AGP x8 slots | 0 |
| PCI Express slots version | 3.0 |
| PCI slots | 0 |
| PCI-X slots | 0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower (4U) |
| Product colour | Black |
| Rack mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Management platform | XClarity Standard |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | - Microsoft, SUSE, Red Hat, VMware vSphere - Microsoft Windows Client OS – Win10 |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 134856 |
Power
| Specification | Value |
|---|---|
| Power supply | 550 W |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 565.7 mm |
| Height | 430 mm |
