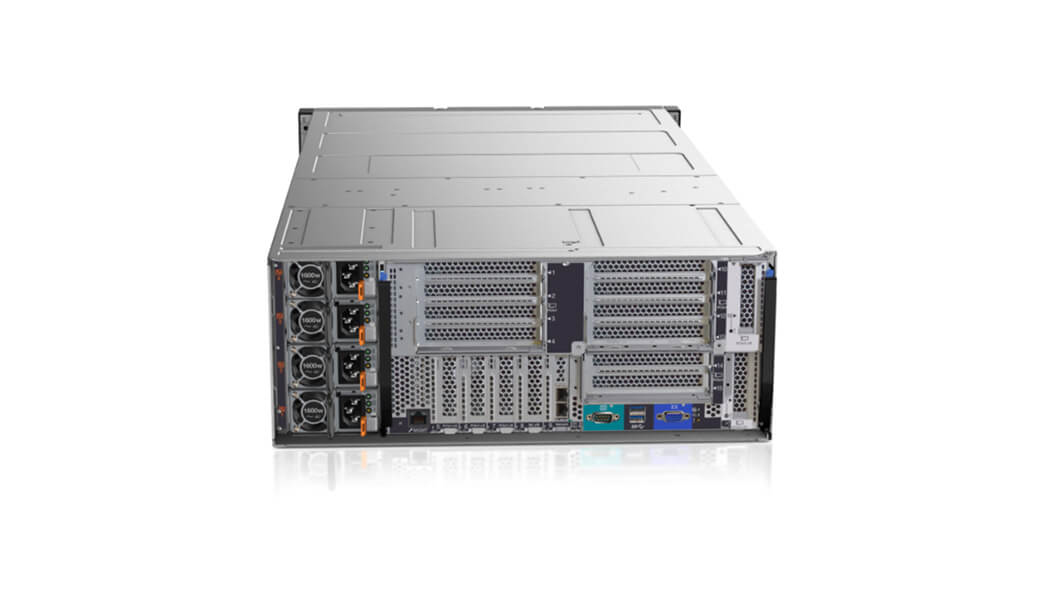

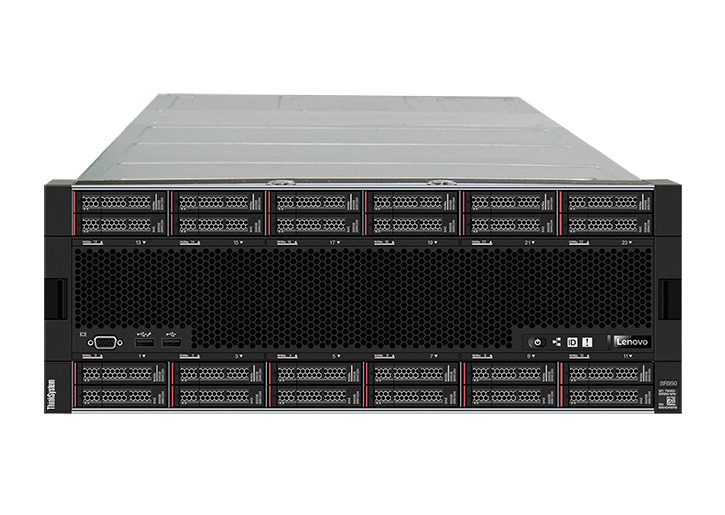

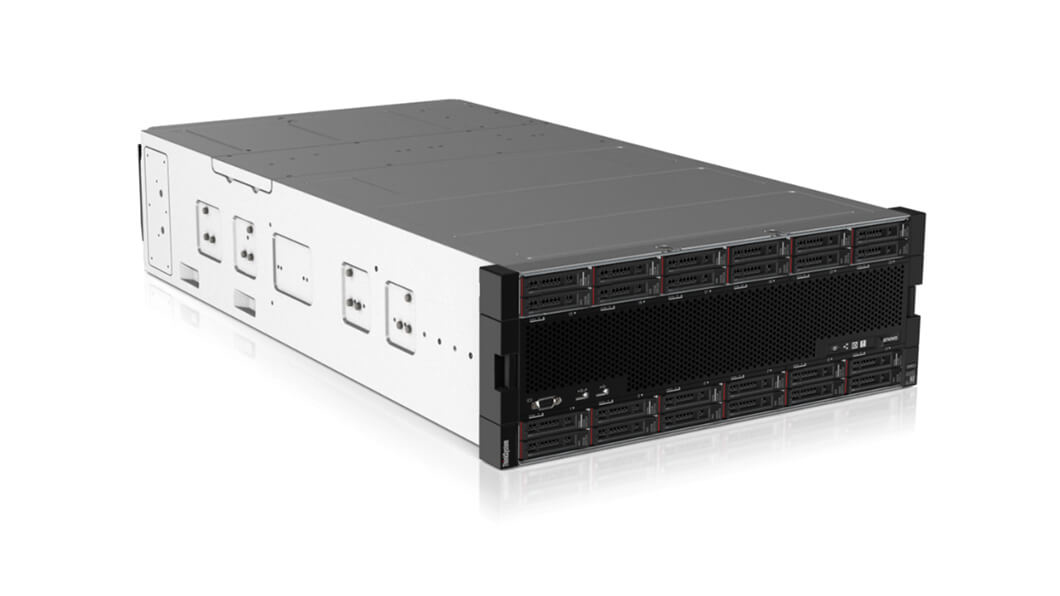

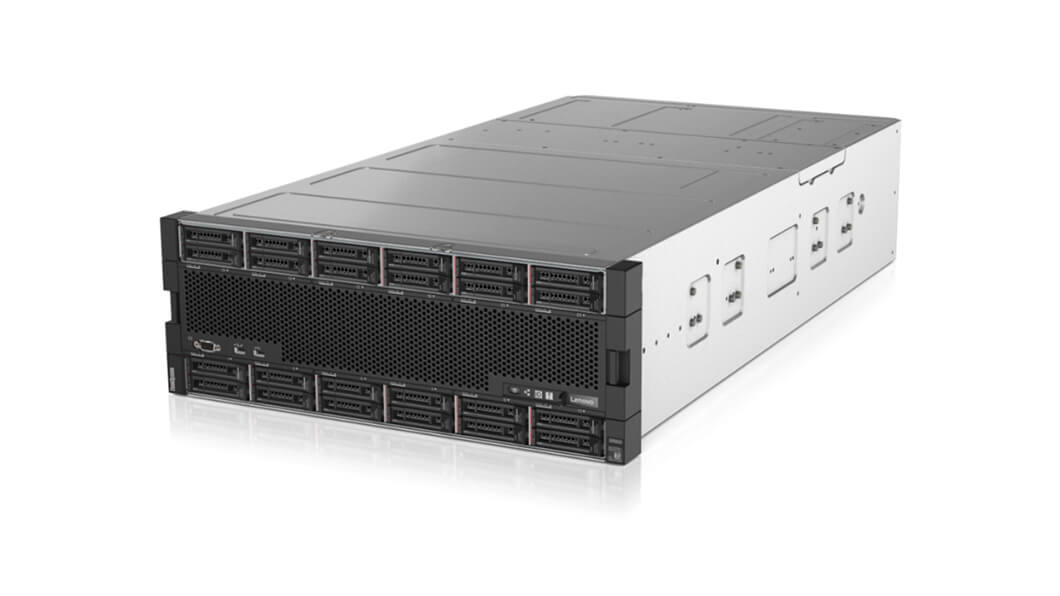

Lenovo ThinkSystem SR950 server Rack (4U) Intel® Xeon® Platinum 8160
2.1 GHz 32 GB DDR4-SDRAM 1600 W
Model SR950Part no. 7X12A019EAEAN 889488488346
59 specifications
- ProcessorIntel® Xeon® Platinum
- Memory32 GB
- Processor manufacturerIntel
- Maximum storage capacity12 TB
- PCI Express slots version3.0
- Chassis typeRack (4U)
Overview
- Processor
- Intel® Xeon® Platinum
- Memory
- 32 GB
- Processor manufacturer
- Intel
- Maximum storage capacity
- 12 TB
- PCI Express slots version
- 3.0
- Chassis type
- Rack (4U)
- Brand
- Lenovo
- Category
- Server
- Model
- SR950
- Part numbers
- 7X12A019EA, 7X13A00QEA, 7X13A00HEA, 7X13A00CEA, 7X13A00AEA, 7X13A009EA +8 more
- EAN / UPC
- 889488488346, 889488488339, 889488488315
- Also known as
- Lenovo ThinkSystem SR950 server Rack (4U) Intel® Xeon® Platinum 8160 2.1 GHz 32 GB DDR4-SDRAM 1600 W
Specifications
59 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Platinum |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor model | 8160 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 3.7 GHz |
| Processor cores | 24 |
| Processor cache | 33 MB |
| Memory channels supported by processor | Hexa |
| Number of processors installed | 8 |
| Thermal Design Power (TDP) | 150 W |
| Processor cache type | L3 |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Maximum number of PCI Express lanes | 48 |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Processor code | SR3B0 |
| Processor codename | Skylake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 76.0 x 56.5 mm |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 48 |
| Scalability | S8S |
| Stepping | H0 |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Tcase | 85 °C |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory slots | 12 |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 12 TB |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| HDD size | 2.5" |
| RAID support | Yes |
| Supported RAID controllers | 930-16i |
| Hot-Plug support | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (4U) |
| Rack mounting | Yes |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 120501 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 1600 W |
| Number of main power supplies | 4 |
