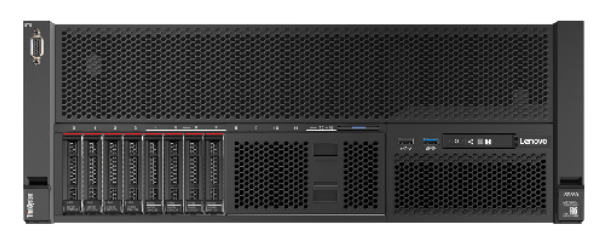

Lenovo ThinkSystem SR860 server Rack (4U) Intel® Xeon® Gold 5118

2.3 GHz 128 GB DDR4-SDRAM 2000 W

Model SR860Part no. 7X69A002EAEAN 889488488384

98 specifications

ProcessorIntel® Xeon® Gold
Memory128 GB
Processor manufacturerIntel
Number of HDDs supported8
Discrete graphics cardNo
USB 2.0 ports quantity1

See all specifications

Overview

Processor: Intel® Xeon® Gold
Memory: 128 GB
Processor manufacturer: Intel
Number of HDDs supported: 8
Discrete graphics card: No
USB 2.0 ports quantity: 1

Brand: Lenovo
Category: Server
Model: SR860
Part number: 7X69A002EA
EAN / UPC: 889488488384
Also known as: Lenovo ThinkSystem SR860 server Rack (4U) Intel® Xeon® Gold 5118 2.3 GHz 128 GB DDR4-SDRAM 2000 W

Specifications

98 specifications in 16 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® Gold
Processor generation	1st Generation Intel® Xeon® Scalable
Processor model	5118
Processor frequency	2.3 GHz
Processor boost frequency	3.2 GHz
Processor cores	12
Processor cache	16.5 MB
Motherboard chipset	Intel® C624
Memory channels supported by processor	Hexa
Number of processors installed	4
Thermal Design Power (TDP)	105 W
Processor cache type	L3
Bus type	UPI
ECC supported by processor	Yes
Embedded options available	Yes
Execute Disable Bit	Yes
Maximum internal memory supported by processor	768 GB
Maximum number of PCI Express lanes	48
Memory clock speeds supported by processor	2666 MHz
Memory types supported by processor	DDR4-SDRAM
Number of QPI links	2
Processor code	SR3GF
Processor codename	Skylake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	76.0 x 56.5 mm
Processor socket	LGA 3647 (Socket P)
Processor threads	24
Scalability	4S
Stepping	M0
Supported instruction sets	AVX, AVX 2.0, AVX-512, SSE4.2
Tcase	81 °C
Conflict-Free processor	Yes

Memory

Specification	Value
Internal memory	128 GB
Internal memory type	DDR4-SDRAM
ECC	Yes
Memory clock speed	2666 MHz
Memory layout (slots x size)	4 x 32 GB
Memory slots	48

Storage

Specification	Value
Number of HDDs supported	8
Supported HDD sizes	2.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60
Supported RAID controllers	930-8i 2GB Flash
Hot-swap	Yes
Optical drive type	No
Supported storage drive interfaces	SAS, Serial ATA III
Card reader integrated	No

Graphics

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
On-board graphics card model	Matrox G200

Network

Specification	Value
Wi-Fi	No
Bluetooth	No
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Serial ports quantity	1
VGA (D-Sub) ports quantity	2

Expansion slots

Specification	Value
PCI Express x8 slots	7
PCI Express x16 slots	2
PCI Express slots version	3.0

Design

Specification	Value
Chassis type	Rack (4U)
Rack mounting	Yes
Rack rails	Yes
Redundant fans support	Yes

Performance

Specification	Value
Performance management	XClarity Enterprise
Trusted Platform Module (TPM)	Yes

Software

Specification	Value
Compatible operating systems	Microsoft Windows Server 2016 Microsoft Windows Server 2012 R2 Red Hat Enterprise Linux 7.3 Red Hat Enterprise Linux 6.9 SUSE Linux Enterprise Server 11 SP4 SUSE Linux Enterprise Server 12 SP3 VMware ESXi 6.0 U3 VMware ESXi 6.5

Processor special features

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	120473

Power

Specification	Value
Redundant power supply (RPS) support	Yes
Power supply	2000 W
Number of redundant power supplies supported	2
Number of redundant power supplies installed	2
Power supply input frequency	50 - 60 Hz

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 45 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	8 - 90%
Storage relative humidity (H-H)	8 - 90%
Operating altitude	0 - 3050 m

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Width	447 mm
Depth	766 mm
Height	175 mm

Other features

Specification	Value
Built-in display	Yes
Display	LCD
