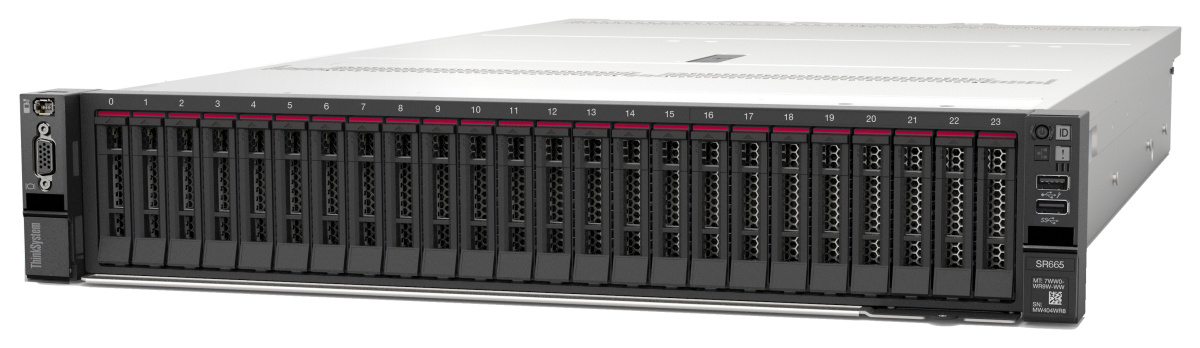

ThinkSystem SR665 server Rack (2U) AMD EPYC 7302
3 GHz 32 GB DDR4-SDRAM 750 W
Model SR665Part no. 7D2VA04DAUEAN 889488571505
32 specifications
- ProcessorAMD EPYC
- Memory32 GB
- OSNo
- Weight38.8 kg
- ColourBlack
- Processor manufacturerAMD
Overview
- Processor
- AMD EPYC
- Memory
- 32 GB
- OS
- No
- Weight
- 38.8 kg
- Colour
- Black
- Processor manufacturer
- AMD
- Brand
- Lenovo
- Category
- Server
- Model
- SR665
- Part numbers
- 7D2VA04DAU, 7D2VA05UAU, 7D2VA05VAU, 7D2VA05WAU, 7D2V1000LA, 7D2VA06LEA +9 more
- EAN / UPC
- 889488571505, 5415247262473, 889488705450, 5054444619590 +2 more
- Also known as
- Lenovo ThinkSystem SR665 server Rack (2U) AMD EPYC 7302 3 GHz 32 GB DDR4-SDRAM 750 W
Specifications
32 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor model | 7302 |
| Processor frequency | 3 GHz |
| Processor boost frequency | 3.3 GHz |
| Processor cache | 128 MB |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 32x DIMM |
| Maximum internal memory | 4 TB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 4 TB |
| HDD size | 2.5" |
| Number of HDDs supported | 8 |
| RAID support | Yes |
| Supported RAID controllers | 940-8i 4GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| On-board graphics card model | Not available |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
Power
| Specification | Value |
|---|---|
| Power supply | 750 W |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 445 mm |
| Depth | 764 mm |
| Height | 87 mm |
| Weight | 38.8 kg |
