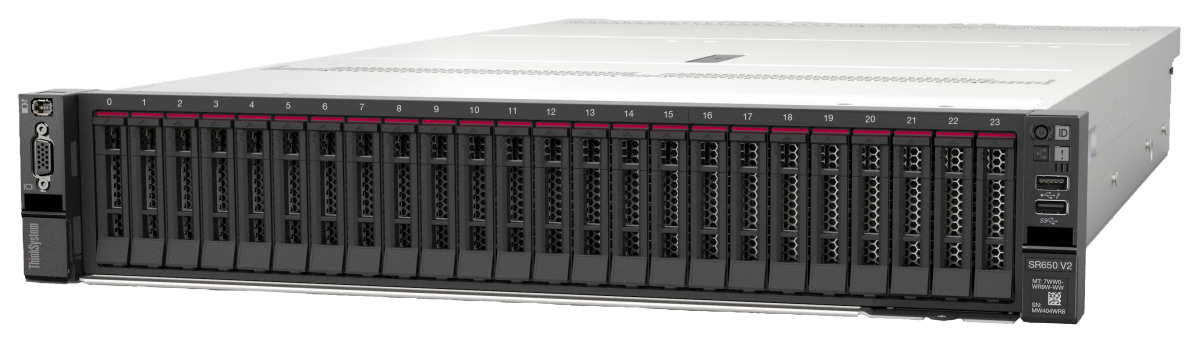

SR650 V2
Model SR650 V2Part no. 7Z73A085EAEAN 8032976159385
60 specifications
- ProcessorIntel® Xeon® Gold
- Memory32 GB
- Storage0 GB
- Weight38.8 kg
- ColourBlack, Stainless steel
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon® Gold
- Memory
- 32 GB
- Storage
- 0 GB
- Weight
- 38.8 kg
- Colour
- Black, Stainless steel
- Processor manufacturer
- Intel
- Brand
- Lenovo
- Category
- Server
- Model
- SR650 V2
- Part numbers
- 7Z73A085EA, 7Z73A02SEA, 7Z73A03DEA, 7Z73A03UAU, 7Z73A03WAU, 7Z73A02UEA +34 more
- EAN / UPC
- 8032976159385, 889488630158, 889488630172, 889488630165 +54 more
- Also known as
- Lenovo SR650 V2 server 0 GB Rack (2U) Intel® Xeon® Gold 6326 2.9 GHz 32 GB DDR4-SDRAM 750 W
Specifications
60 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Gold |
| Processor generation | 3rd Generation Intel® Xeon® Scalable |
| Processor model | 6326 |
| Processor frequency | 2.9 GHz |
| Processor boost frequency | 3.5 GHz |
| Processor cache | 24 MB |
| Motherboard chipset | Intel C621A |
| Number of processors installed | 1 |
| Maximum number of SMP processors | 2 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 3200 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 32x DIMM |
| Maximum internal memory | 6 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 0 GB |
| HDD interface | Serial Attached SCSI (SAS) |
| Number of HDDs supported | 8 |
| Supported HDD sizes | 2.5" |
| SSD interface | Serial Attached SCSI (SAS) |
| Supported SSD sizes | 2.5" |
| Number of SSDs supported | 8 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Supported RAID controllers | 940-8i |
| Internal drive bays | 8 |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Matrox G200 |
| Maximum graphics card memory | 16 MB |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 2 |
| PCI Express x16 slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black, Stainless steel |
| Rack mounting | Yes |
| Redundant fans support | Yes |
Performance
| Specification | Value |
|---|---|
| Performance management | XClarity Enterprise |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 750 W |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 1 |
| Power supply input voltage | 220 V |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 445 mm |
| Depth | 764 mm |
| Height | 87 mm |
| Weight | 38.8 kg |
