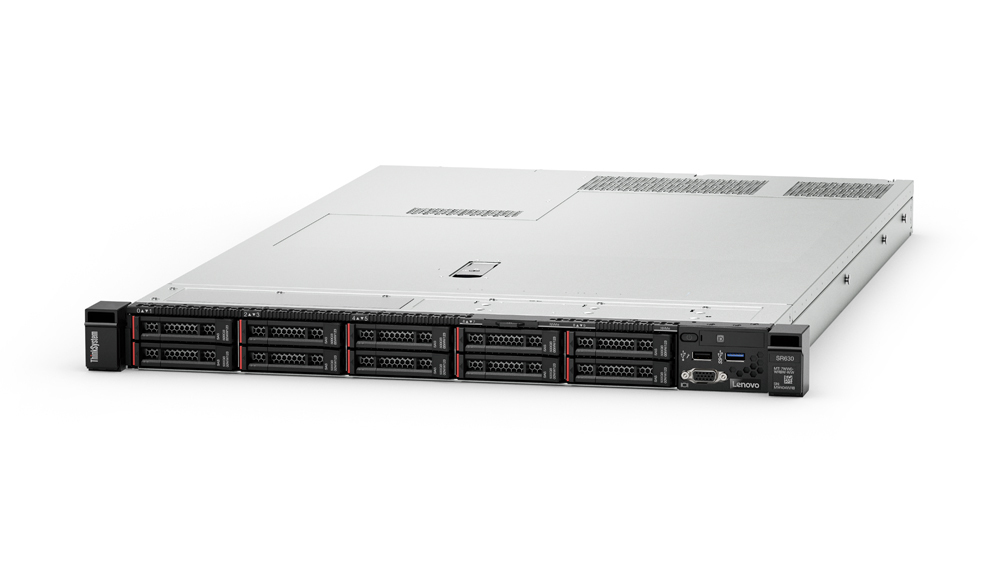

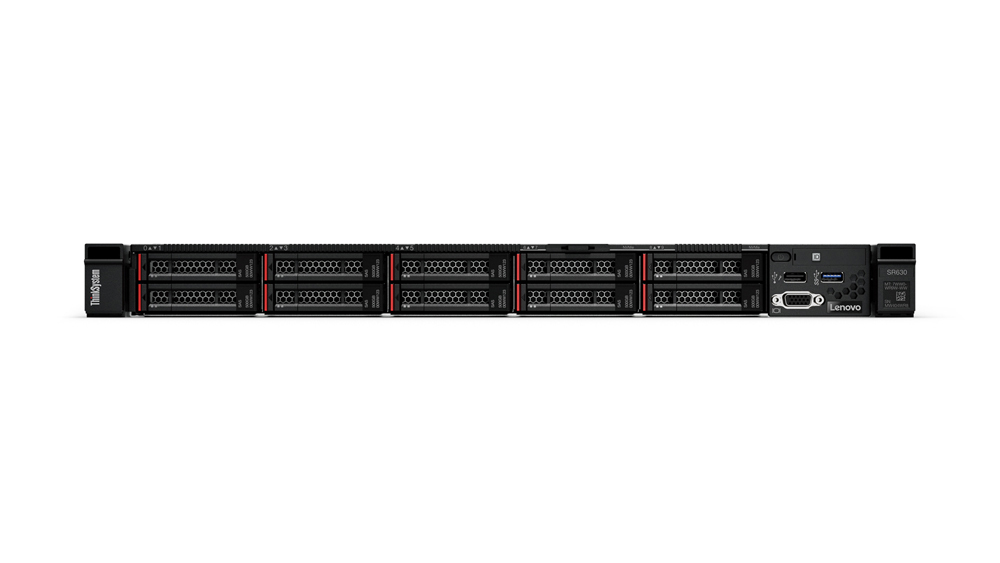

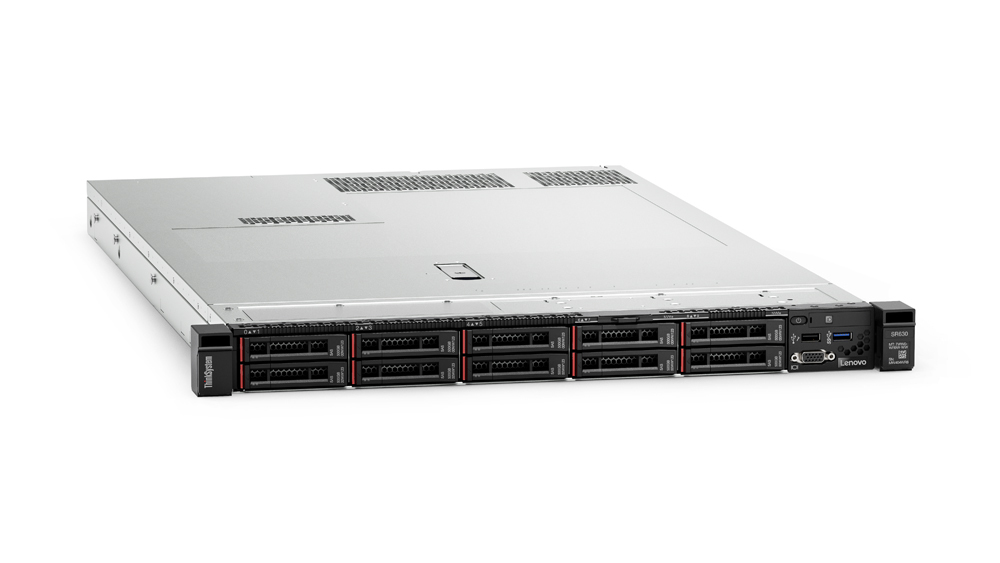

SR630 + 3Yr Essential Service
Model SR630 + 3Yr Essential ServicePart no. 7X02A0DSLA + 5PS7A01504
71 specifications
- ProcessorIntel Xeon Silver
- Memory96 GB
- Storage2.88 TB
- ColourBlack, Silver
- Processor manufacturerIntel
- On-board graphics cardYes
Overview
- Processor
- Intel Xeon Silver
- Memory
- 96 GB
- Storage
- 2.88 TB
- Colour
- Black, Silver
- Processor manufacturer
- Intel
- On-board graphics card
- Yes
- Brand
- Lenovo
- Category
- Server
- Model
- SR630 + 3Yr Essential Service
- Part numbers
- 7X02A0DSLA + 5PS7A01504, 7X02A0DTLA + 5PS7A01504
- Also known as
- Lenovo ThinkSystem SR630 + 3Yr Essential Service server 2.88 TB Rack (1U) Intel Xeon Silver 4210 2.2 GHz 96 GB DDR4-SDRAM 750 W
Specifications
71 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor model | 4210 |
| Processor frequency | 2.2 GHz |
| Processor boost frequency | 3.2 GHz |
| Processor cores | 10 |
| Processor cache | 13.75 MB |
| Number of processors installed | 2 |
| Thermal Design Power (TDP) | 85 W |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| Maximum internal memory supported by processor | 1 TB |
| Maximum number of PCI Express lanes | 48 |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Processor codename | Cascade Lake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 76.0 x 56.5 mm |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 20 |
| Scalability | 2S |
| Supported instruction sets | AVX-512 |
| Tcase | 78 °C |
Memory
| Specification | Value |
|---|---|
| Internal memory | 96 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2933 MHz |
| Memory layout (slots x size) | 12 x 8 GB |
| Memory slots | 24 |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2.88 TB |
| Number of SSDs installed | 3 |
| SSD capacity | 960 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Supported RAID controllers | 930-8i 2GB |
| Hot-swap | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Not available |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Silver |
| Rack mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Performance management | XClarity |
| Trusted Platform Module (TPM) | Yes |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows Server 2016, Microsoft Windows Server 2019, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 8.0, Red Hat Enterprise Linux 8.1 ,Red Hat Enterprise Linux 8.2, SUSE Linux Enterprise Server 12 SP4, SUSE Linux Enterprise |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 193384 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 750 W |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 2 |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 750 mm |
| Height | 43 mm |
