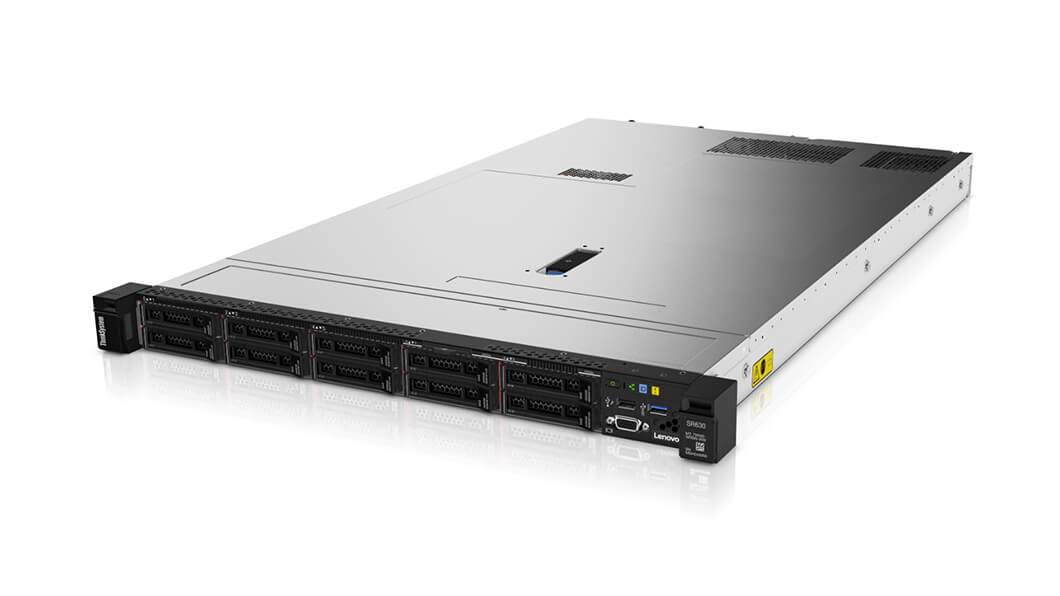

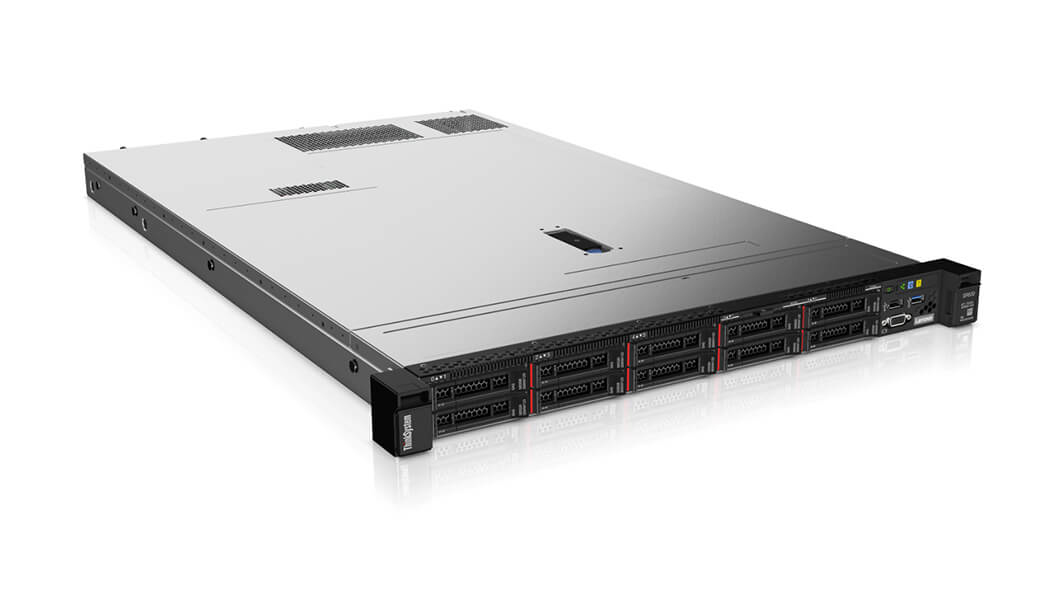

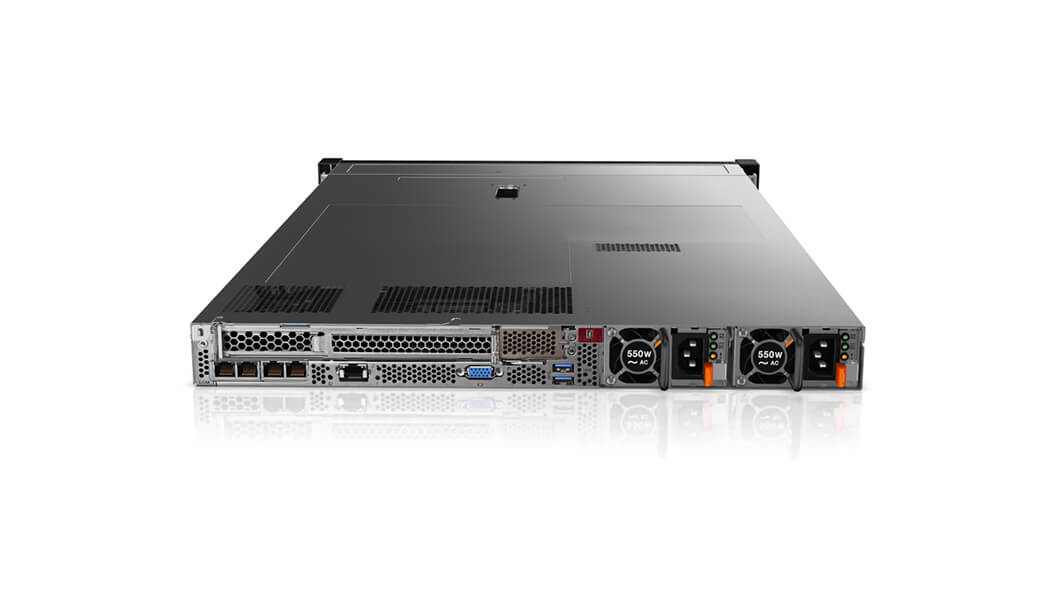

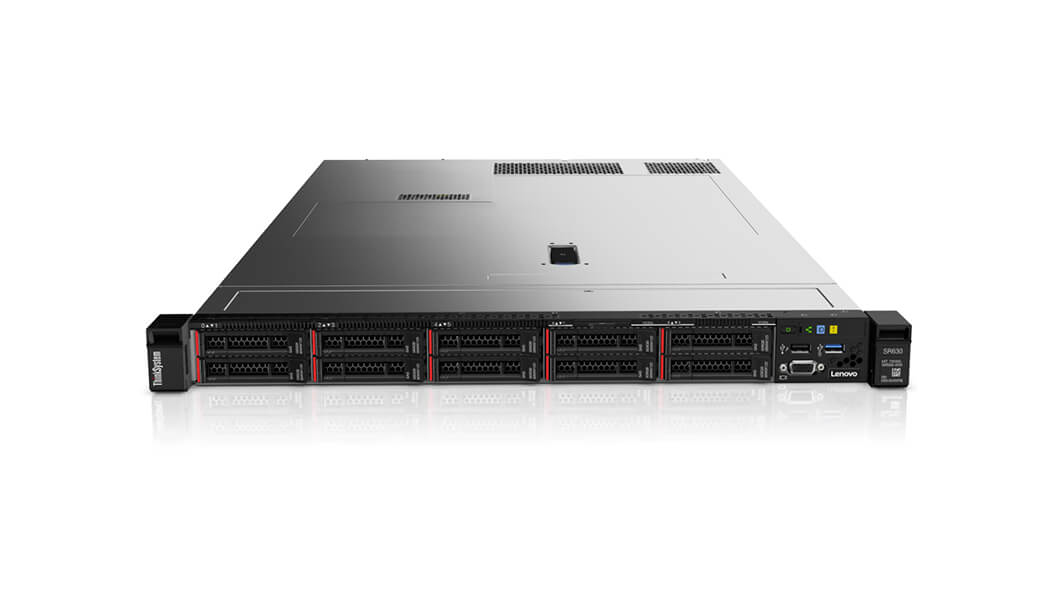

Lenovo ThinkSystem SR630 server

0 GB Rack (1U) Intel® Xeon® 4110 2.1 GHz 16 GB DDR4-SDRAM 750 W

Model SR630Part no. 7X02A054EAEAN 889488440047

97 specifications

ProcessorIntel® Xeon®
Memory16 GB
Storage0 GB
Weight19 kg
Processor manufacturerIntel
Maximum storage capacity61.4 TB

See all specifications

Overview

Processor: Intel® Xeon®
Memory: 16 GB
Storage: 0 GB
Weight: 19 kg
Processor manufacturer: Intel
Maximum storage capacity: 61.4 TB

Brand: Lenovo
Category: Server
Model: SR630
Part numbers: 7X02A054EA, 7X02A042EA, 7X02A04KEA, 7X02A002EA, 7X02A003EA, 7X02A056EA +34 more
EAN / UPC: 889488440047, 889488439959, 4058154228845, 889488440177 +56 more
Also known as: Lenovo ThinkSystem SR630 server 0 GB Rack (1U) Intel® Xeon® 4110 2.1 GHz 16 GB DDR4-SDRAM 750 W

Specifications

97 specifications in 16 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon®
Processor generation	1st Generation Intel® Xeon® Scalable
Processor model	4110
Processor frequency	2.1 GHz
Processor boost frequency	3 GHz
Processor cores	8
Processor cache	11 MB
Motherboard chipset	Intel® C624
Memory channels supported by processor	Hepta
Number of processors installed	1
Thermal Design Power (TDP)	85 W
Processor cache type	L3
Compatible processor series	Intel® Xeon®
ECC supported by processor	Yes
Embedded options available	Yes
Execute Disable Bit	Yes
Maximum internal memory supported by processor	768 GB
Maximum number of PCI Express lanes	48
Maximum number of SMP processors	2
Memory clock speeds supported by processor	2400 MHz
Memory types supported by processor	LPDDR4-SDRAM
Processor codename	Skylake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	76.0 x 56.5 mm
Processor socket	LGA 3647 (Socket P)
Processor threads	16
Scalability	2S
Supported instruction sets	AVX, AVX 2.0, AVX-512, SSE4.2
Tcase	77 °C
Conflict-Free processor	Yes

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
ECC	Yes
Memory clock speed	2666 MHz
Memory layout (slots x size)	1 x 16 GB
Memory slots	24x DIMM
Maximum internal memory	3 TB

Storage

Specification	Value
Maximum storage capacity	61.4 TB
Total storage capacity	0 GB
Number of HDDs installed	0
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
HDD size	2.5"
Number of HDDs supported	8
Supported HDD sizes	2.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60, JBOD
Supported RAID controllers	930-8i
Hot-swap	Yes
Optical drive type	No
Supported storage drive interfaces	SAS, Serial ATA III

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card model	Matrox G200

Network

Specification	Value
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Serial ports quantity	0
VGA (D-Sub) ports quantity	2

Expansion slots

Specification	Value
PCI Express x8 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots	1
PCI Express slots version	3.0

Design

Specification	Value
Chassis type	Rack (1U)
Rack mounting	Yes

Performance

Specification	Value
Performance management	XClarity Enterprise
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	1.2

Software

Specification	Value
Compatible operating systems	Microsoft Windows Server 2016/2012 R2 Red Hat Enterprise Linux 7.3/6.9 SUSE Linux Enterprise Server 12 SP2/11 SP4 VMware vSphere (ESXi) 6.5/6.0 U3

Processor special features

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	123547

Power

Specification	Value
Redundant power supply (RPS) support	Yes
Power supply	750 W
Number of redundant power supplies supported	2
Number of main power supplies	1
Power supply input frequency	50 - 60 Hz

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 45 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	8 - 90%
Storage relative humidity (H-H)	8 - 90%
Operating altitude	0 - 3048 m

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Width	482 mm
Depth	778.3 mm
Height	43 mm
Weight	19 kg

Technical details

Specification	Value
Number of 2.5" bays	8
