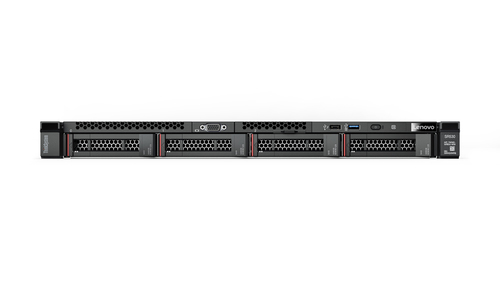

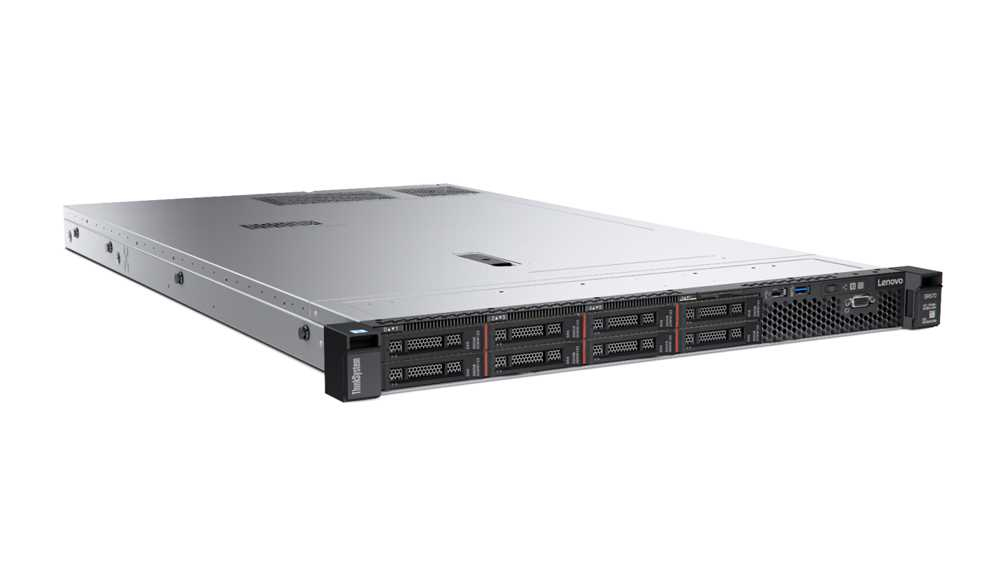

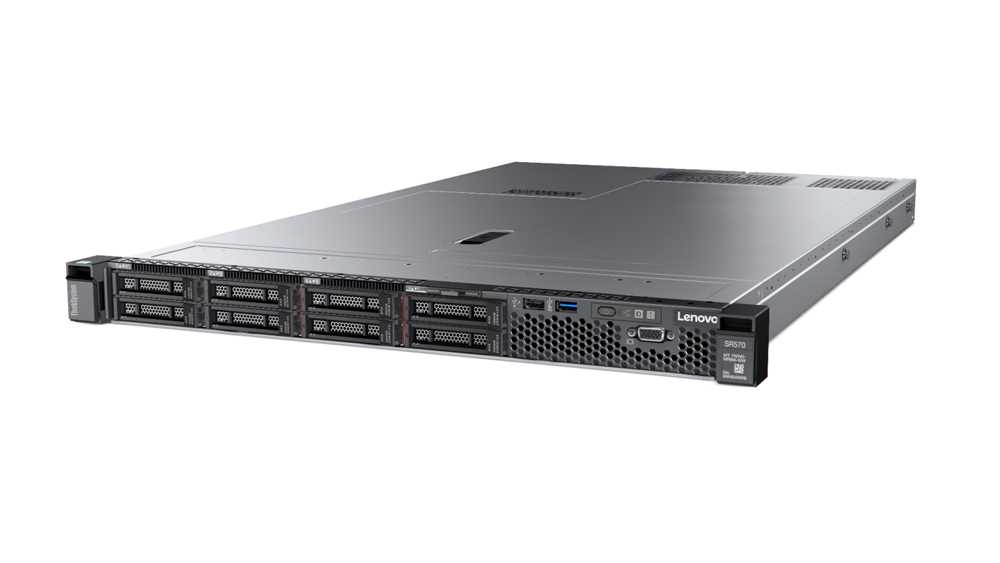

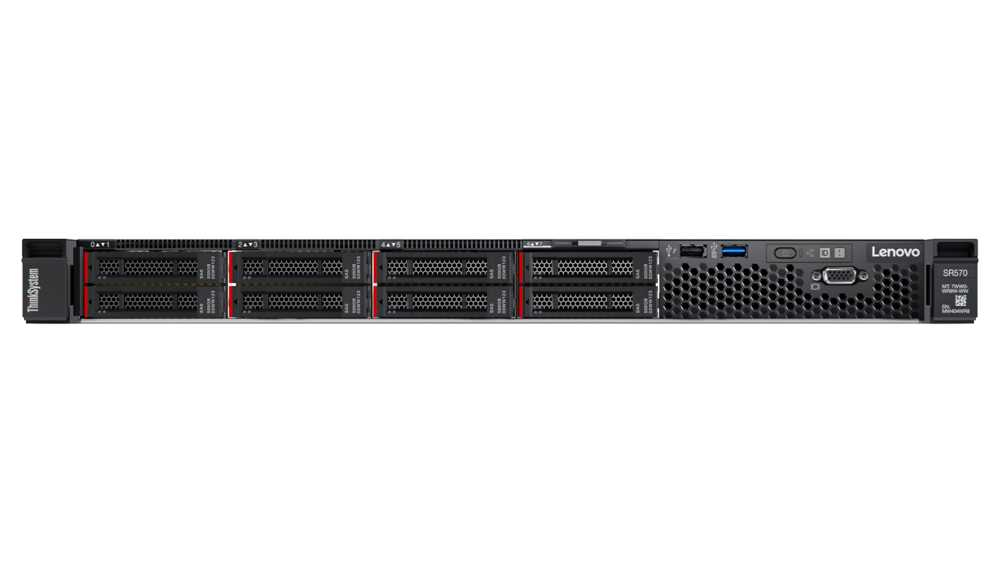

Lenovo ThinkSystem SR570 server Rack (1U) Intel® Xeon® 4114

2.2 GHz 32 GB DDR4-SDRAM 750 W

Model SR570Part no. 7Y03A00GNAEAN 889488488780

89 specifications

ProcessorIntel® Xeon®
Memory32 GB
Processor manufacturerIntel
Maximum storage capacity76.8 TB
On-board graphics cardYes
Wi-FiNo

See all specifications

Overview

Processor: Intel® Xeon®
Memory: 32 GB
Processor manufacturer: Intel
Maximum storage capacity: 76.8 TB
On-board graphics card: Yes
Wi-Fi: No

Brand: Lenovo
Category: Server
Model: SR570
Part numbers: 7Y03A00GNA, 7Y03A00HNA, 7Y03A00NNA, 7Y03A00QNA, 7Y03A00SNA, 7Y03A00TNA +34 more
EAN / UPC: 889488488780, 889488488674, 889488488728, 889488488766 +20 more
Also known as: Lenovo ThinkSystem SR570 server Rack (1U) Intel® Xeon® 4114 2.2 GHz 32 GB DDR4-SDRAM 750 W

Specifications

89 specifications in 16 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon®
Processor generation	1st Generation Intel® Xeon® Scalable
Processor model	4114
Processor frequency	2.2 GHz
Processor boost frequency	3 GHz
Processor cores	10
Processor cache	13.75 MB
Memory channels supported by processor	Hexa
Number of processors installed	1
Thermal Design Power (TDP)	85 W
Processor cache type	L3
Bus type	UPI
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
Maximum internal memory supported by processor	768 GB
Maximum number of PCI Express lanes	48
Memory clock speeds supported by processor	2400 MHz
Memory types supported by processor	DDR4-SDRAM
Processor code	SR3GK
Processor codename	Skylake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	76.0 x 56.5 mm
Processor socket	LGA 3647 (Socket P)
Processor threads	20
Scalability	2S
Stepping	U0
Supported instruction sets	AVX, AVX 2.0, AVX-512, SSE4.2
Tcase	78 °C
Conflict-Free processor	Yes

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR4-SDRAM
ECC	Yes
Memory clock speed	2666 MHz
Memory layout (slots x size)	1 x 32 GB
Memory slots	16
Maximum internal memory	1 TB

Storage

Specification	Value
Maximum storage capacity	76.8 TB
Supported HDD sizes	2.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60
Supported RAID controllers	930-8i 2GB Flash
Hot-swap	Yes
Optical drive type	No
Supported storage drive interfaces	SAS, Serial ATA III
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card model	Matrox G200

Network

Specification	Value
Wi-Fi	No
Bluetooth	No
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Serial ports quantity	0
VGA (D-Sub) ports quantity	1

Expansion slots

Specification	Value
PCI Express x8 slots	1
PCI Express x16 slots	1
PCI Express slots version	3.0

Design

Specification	Value
Chassis type	Rack (1U)
Rack mounting	Yes

Performance

Specification	Value
Performance management	XClarity Advanced
Trusted Platform Module (TPM)	Yes

Software

Specification	Value
Compatible operating systems	Microsoft Windows Server 2016/2012 R2. Red Hat Enterprise Linux 7.3/6.9. SUSE Linux Enterprise Server 12 SP2/11 SP4. VMware ESXi 6.5/6.0 U3

Processor special features

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	123550

Power

Specification	Value
Redundant power supply (RPS) support	Yes
Power supply	750 W
Number of redundant power supplies supported	2
Number of redundant power supplies installed	2

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Logistics data

Specification	Value
Harmonized System (HS) code	84714100

Weight & dimensions

Specification	Value
Width	482 mm
Depth	778.3 mm
Height	43 mm

Other features

Specification	Value
Built-in display	No
