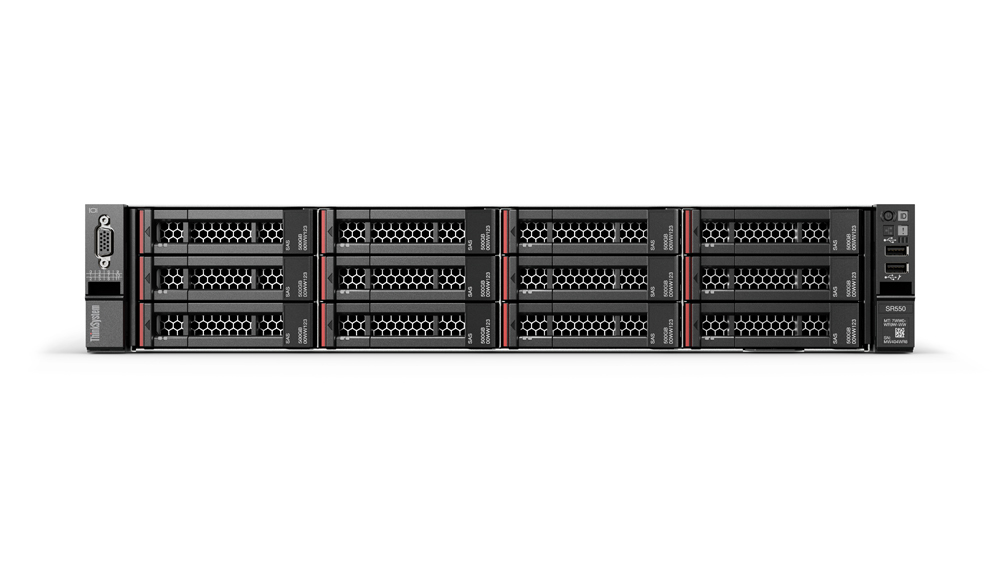

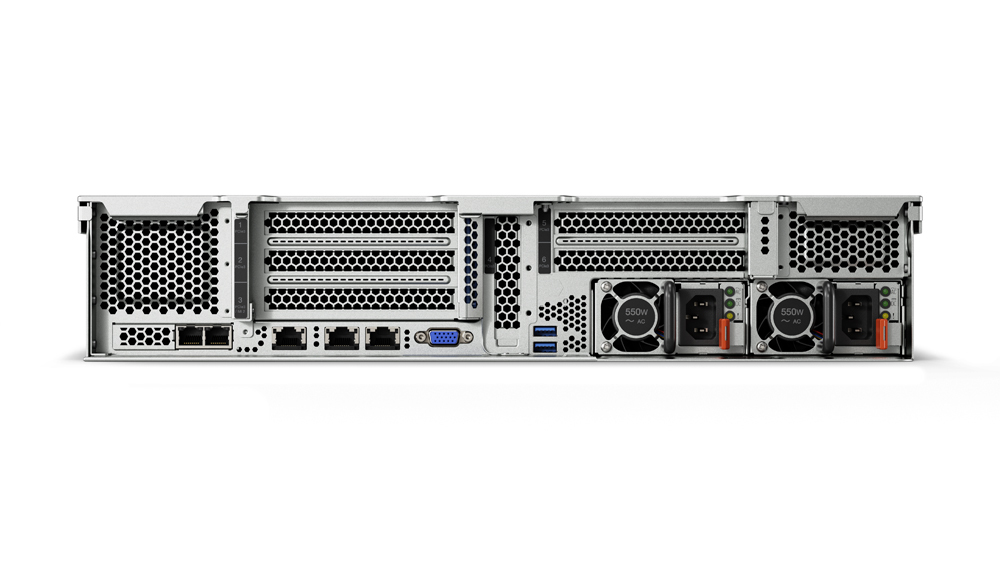

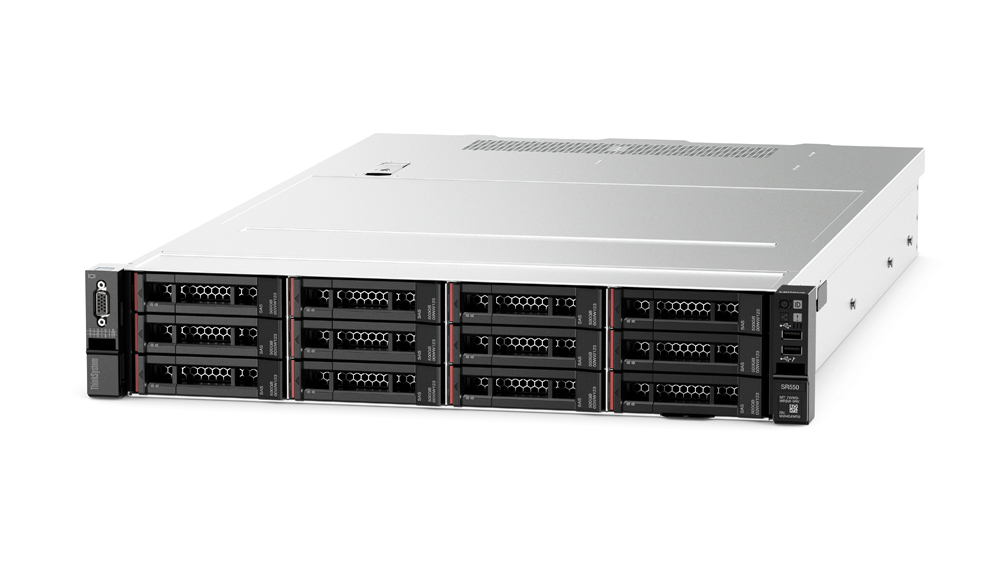

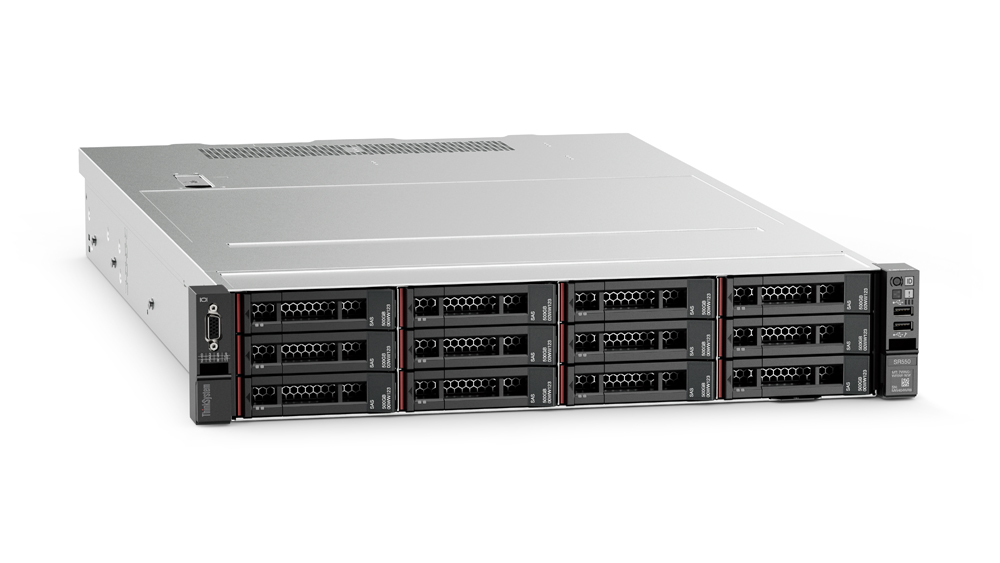

Lenovo ThinkSystem SR550 server

0 GB Rack (2U) Intel® Xeon® 4108 1.8 GHz 16 GB DDR4-SDRAM 750 W

Model SR550Part no. 7X04A045AUEAN 889488452378

85 specifications

Overview

Brand: Lenovo
Category: Server
Model: SR550
Part numbers: 7X04A045AU, 7X04A04ZNA, 7X04A001EA, 7X04A002EA, 7X04A003EA, 7X04A004EA +34 more
EAN / UPC: 889488452378, 889488452507, 889488450985, 889488450992 +36 more
Also known as: Lenovo ThinkSystem SR550 server 0 GB Rack (2U) Intel® Xeon® 4108 1.8 GHz 16 GB DDR4-SDRAM 750 W

85 specifications in 12 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon®
Processor generation	1st Generation Intel® Xeon® Scalable
Processor model	4108
Processor frequency	1.8 GHz
Processor boost frequency	3 GHz
Processor cores	8
Processor cache	11 MB
Memory channels supported by processor	Hepta
Number of processors installed	1
Thermal Design Power (TDP)	85 W
Processor cache type	L3
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
Maximum internal memory supported by processor	768 GB
Maximum number of PCI Express lanes	48
Memory clock speeds supported by processor	2400 MHz
Memory types supported by processor	DDR4-SDRAM
Number of QPI links	2
Processor code	SR3GJ
Processor codename	Skylake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	76.0 x 56.5 mm
Processor socket	LGA 3647 (Socket P)
Processor threads	16
Scalability	2S
Stepping	U0
Supported instruction sets	AVX, AVX 2.0, AVX-512, SSE4.2
Tcase	77 °C
Conflict-Free processor	Yes

Specification	Value
Maximum storage capacity	61.4 TB
Total storage capacity	0 GB
Supported HDD sizes	2.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60, JBOD
Supported RAID controllers	530-8i
Hot-swap	Yes
Optical drive type	No
Supported storage drive interfaces	SAS, Serial ATA III

Specification	Value
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes

Specification	Value
Performance management	XClarity Standard
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	1.2

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	123544

Specification	Value
Redundant power supply (RPS) support	Yes
Power supply	750 W
Number of redundant power supplies installed	1
Power supply input frequency	50 - 60 Hz

Specification	Value
Operating temperature (T-T)	5 - 45 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	8 - 90%
Storage relative humidity (H-H)	8 - 90%
Operating altitude	0 - 3048 m

Specification	Value
Sustainability certificates	ENERGY STAR
