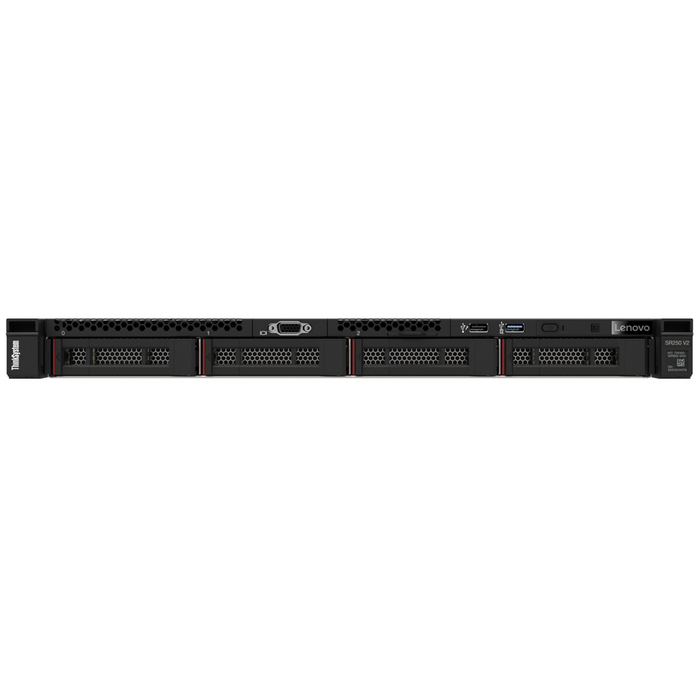

SR250 V2
Model SR250 V2Part no. 7D7QA02XEAEAN 5415247312369
61 specifications
- ProcessorIntel Xeon E
- Memory16 GB
- Storage0 GB
- Noise52.6 dB
- OSNo
- Weight12.3 kg
Overview
- Processor
- Intel Xeon E
- Memory
- 16 GB
- Storage
- 0 GB
- Noise
- 52.6 dB
- OS
- No
- Weight
- 12.3 kg
- Brand
- Lenovo
- Category
- Server
- Model
- SR250 V2
- Part numbers
- 7D7QA02XEA, 7D7QA02YEA, 7D7QA02ZEA, 7D7QA030EA, 7D7QA031EA, 7D7QA02QEA +34 more
- EAN / UPC
- 5415247312369, 8032976159682, 5415247313243, 889488705481 +10 more
- Also known as
- Lenovo ThinkSystem SR250 V2 server 0 GB Rack (1U) Intel Xeon E E-2336 2.9 GHz 16 GB DDR4-SDRAM 450 W
Specifications
61 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2336 |
| Processor frequency | 2.9 GHz |
| Processor boost frequency | 4.8 GHz |
| Processor cache | 12 MB |
| Motherboard chipset | Intel C256 |
| Number of processors installed | 1 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Idle States | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 4x DIMM |
| Maximum internal memory | 128 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 0 GB |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Hot-swap | Yes |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Broadcom BCM5720 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Metallic |
| Rack mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Performance management | XClarity Standard |
| Noise level | 52.6 dB |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 450 W |
| Number of redundant power supplies installed | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 8 - 90% |
| Operating altitude | 0 - 3050 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 545 mm |
| Height | 43 mm |
| Weight | 12.3 kg |
