Lenovo ThinkSystem SR250 server
2 TB Rack (1U) Intel® Xeon® E-2124 3.3 GHz 8 GB DDR4-SDRAM 300 W
Model SR250Part no. 7Y52A00TNAEAN 8894885798228
101 specifications
- ProcessorIntel® Xeon®
- Memory8 GB
- Storage2 TB
- ColourBlack
- Processor manufacturerIntel
- On-board graphics card modelNot available
Overview
- Processor
- Intel® Xeon®
- Memory
- 8 GB
- Storage
- 2 TB
- Colour
- Black
- Processor manufacturer
- Intel
- On-board graphics card model
- Not available
- Brand
- Lenovo
- Category
- Server
- Model
- SR250
- Part numbers
- 7Y52A00TNA, 7Y52A00QNA, 7Y52A00NNA, 7Y52A00PNA, 7Y52A00RNA, 7Y52A011NA +34 more
- EAN / UPC
- 8894885798228, 5054444368528, 5415247267966, 889488579839 +23 more
- Also known as
- Lenovo ThinkSystem SR250 server 2 TB Rack (1U) Intel® Xeon® E-2124 3.3 GHz 8 GB DDR4-SDRAM 300 W
Specifications
101 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | E-2124 |
| Processor frequency | 3.3 GHz |
| Processor boost frequency | 4.3 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 71 W |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Bus type | DMI3 |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Maximum internal memory supported by processor | 128 GB |
| Maximum number of PCI Express lanes | 16 |
| Memory bandwidth supported by processor (max) | 41.6 GB/s |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Processor codename | Coffee Lake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor socket | LGA 1151 (Socket H4) |
| Processor threads | 4 |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Tjunction | 100 °C |
| Intel® Optane™ Memory Ready | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Buffered memory type | Unregistered (unbuffered) |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 4x DIMM |
| Maximum internal memory | 64 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Number of HDDs installed | 2 |
| HDD interface | Serial ATA III |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Number of HDDs supported | 4 |
| Supported HDD sizes | 2.5,3.5" |
| RAID support | Yes |
| Hot-swap | No |
| Optical drive type | No |
| Supported storage drive interfaces | Serial ATA III |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Not available |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 3 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black |
| Rack mounting | Yes |
| Rack rails | Yes |
Performance
| Specification | Value |
|---|---|
| Management platform | XClarity Standard |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft, Red Hat, SUSE, and VMware ESXi |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 134856 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply | 300 W |
| Number of main power supplies | 1 |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434.6 mm |
| Depth | 497.8 mm |
| Height | 43 mm |
Other features
| Specification | Value |
|---|---|
| Built-in display | No |
| I/O ports | 1x Mgmt |
What people say
Reviews & ratings
Lenovo ThinkSystem SR250 server
No reviews yet
Be the first to tell others how Lenovo ThinkSystem SR250 server works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Lenovo ThinkSystem SR250 server
All server comparisons- Lenovo ThinkSystem SR250 server vsLenovo ThinkSystem ST50 serverCompare specs
- Lenovo ThinkSystem SR250 server vsLenovo ThinkSystem ST250 serverCompare specs

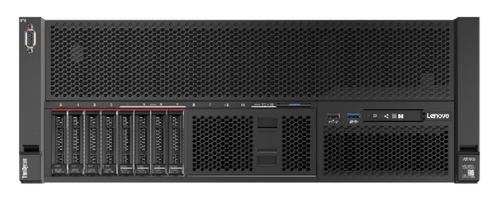

- Lenovo ThinkSystem SR250 server vsLenovo ThinkSystem SR860 server Rack (4U) Intel® Xeon® Gold 5118Compare specs

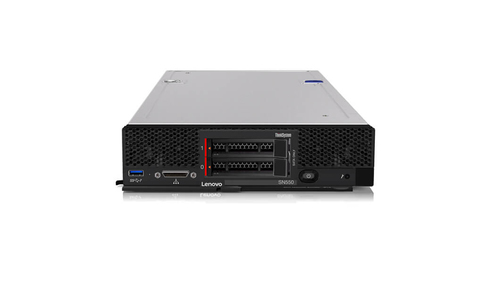

- Lenovo ThinkSystem SR250 server vsLenovo ThinkSystem SN550 server Intel® Xeon® 5000 Sequence 5120Compare specs

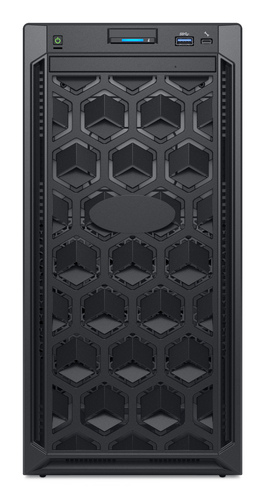

- Lenovo ThinkSystem SR250 server vsDell PowerEdge T140 serverCompare specs
- Lenovo ThinkSystem SR250 server vsDell PowerEdge R240 serverCompare specs
- Lenovo ThinkSystem SR250 server vsBarco XMS-110 serverCompare specs

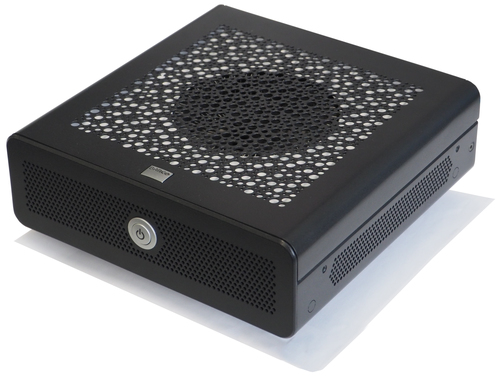

- Lenovo ThinkSystem SR250 server vsErnitec BUILD-EASY-VIEW-5 serverCompare specs
