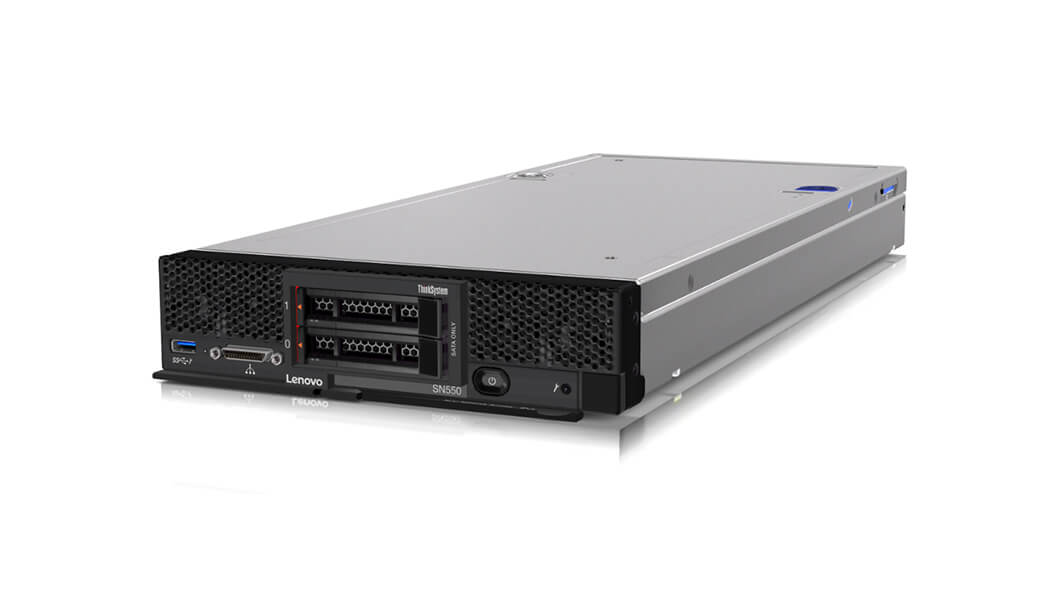

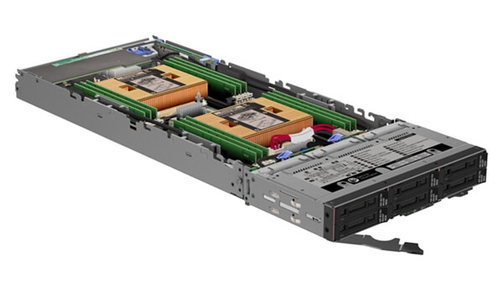

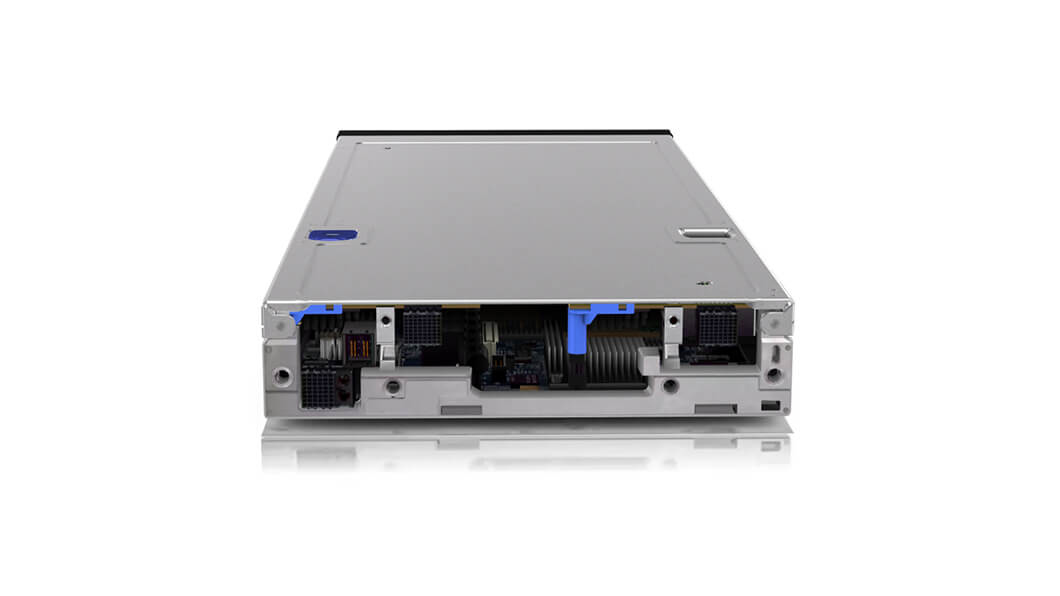

Lenovo ThinkSystem SN550 server Intel® Xeon® 5000 Sequence 5120
1.86 GHz 16 GB DDR4-SDRAM
Model SN550Part no. 7X16A075EAEAN 5054444515489
62 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory16 GB
- Processor manufacturerIntel
- Maximum storage capacity30.72 TB
- Ethernet LANYes
- USB 2.0 ports quantity0
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 16 GB
- Processor manufacturer
- Intel
- Maximum storage capacity
- 30.72 TB
- Ethernet LAN
- Yes
- USB 2.0 ports quantity
- 0
- Brand
- Lenovo
- Category
- Server
- Model
- SN550
- Part numbers
- 7X16A075EA, 7X16A06YEA, 7X16A06HEA, 7X16A06GEA, 7X16A06ZEA, 7X16A0B9EA +13 more
- EAN / UPC
- 5054444515489, 5415247290759, 5054444352282, 5054444514703 +5 more
- Also known as
- Lenovo ThinkSystem SN550 server Intel® Xeon® 5000 Sequence 5120 1.86 GHz 16 GB DDR4-SDRAM
Specifications
62 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | 5120 |
| Processor frequency | 1.86 GHz |
| Processor boost frequency | 3.2 GHz |
| Processor cores | 2 |
| Processor cache | 4 MB |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 65 W |
| Processor cache type | L2 |
| Bus type | FSB |
| CPU multiplier (bus/core ratio) | 7 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | Yes |
| Idle States | Yes |
| Number of Processing Die Transistors | 291 M |
| Processing Die size | 143 mm² |
| Processor front side bus | 1066 MHz |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor socket | LGA 771 (Socket J) |
| Processor threads | 2 |
| Tcase | 65 °C |
| Thermal Monitoring Technologies | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 2666 MHz |
| Memory slots | 24 |
| Maximum internal memory | 3 TB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 30.72 TB |
| HDD size | 5.25/3.5" |
| Number of HDDs supported | 2 |
| Number of SSDs supported | 2 |
| RAID support | Yes |
| RAID levels | 0, 1 |
| Hot-swap | Yes |
| Supported storage drive interfaces | SAS-3, Serial ATA III |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 2 |
Performance
| Specification | Value |
|---|---|
| Performance management | XClarity Controller, XClarity Administrator, XClarity Integrator, XClarity Energy Manager |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | No |
| Intel Enhanced Halt State | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 27215 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 215 mm |
| Depth | 493 mm |
| Height | 51 mm |
What people say
Reviews & ratings
Lenovo ThinkSystem SN550 server Intel® Xeon® 5000 Sequence 5120
No reviews yet
Be the first to tell others how Lenovo ThinkSystem SN550 server Intel® Xeon® 5000 Sequence 5120 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Lenovo ThinkSystem SN550 server Intel® Xeon® 5000 Sequence 5120
All server comparisons- Lenovo ThinkSystem SN550 server Intel® Xeon® 5000 Sequence 5120 vsLenovo ThinkSystem SR860 server Rack (4U) Intel® Xeon® Gold 5118Compare specs
- Lenovo ThinkSystem SN550 server Intel® Xeon® 5000 Sequence 5120 vsLenovo ThinkSystem SR250 serverCompare specs
- Lenovo ThinkSystem SN550 server Intel® Xeon® 5000 Sequence 5120 vsLenovo ThinkSystem SD530 serverCompare specs

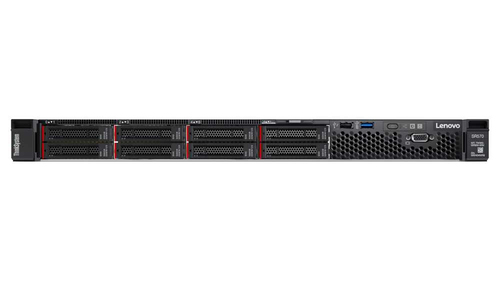

- Lenovo ThinkSystem SN550 server Intel® Xeon® 5000 Sequence 5120 vsLenovo ThinkSystem SR570 server Rack (1U) Intel® Xeon® 4114Compare specs

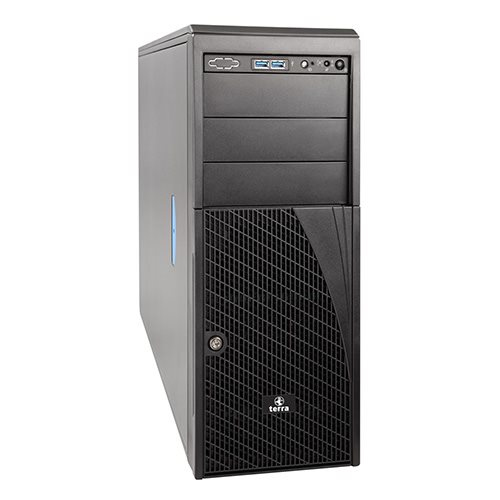

- Lenovo ThinkSystem SN550 server Intel® Xeon® 5000 Sequence 5120 vsTERRA SERVER 7420 G3 SSDCompare specs

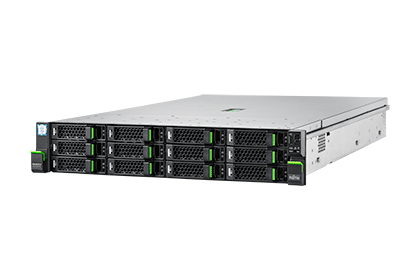

- Lenovo ThinkSystem SN550 server Intel® Xeon® 5000 Sequence 5120 vsFujitsu RX2520 M4Compare specs

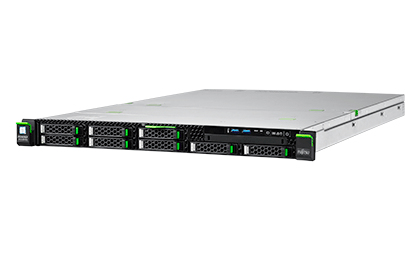

- Lenovo ThinkSystem SN550 server Intel® Xeon® 5000 Sequence 5120 vsFujitsu PRIMERGY RX2530M4 server Rack (1U) Intel® Xeon® 4110Compare specs
