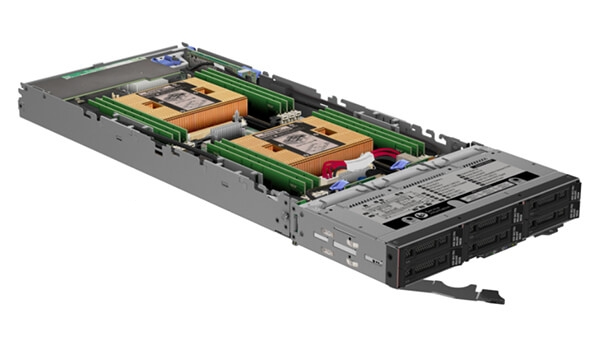

Lenovo ThinkSystem SD530 server
0 GB Rack (1U) Intel® Xeon® 6142 2.6 GHz 16 GB DDR4-SDRAM
Model SD530Part no. 7X21A03EEAEAN 889488488360
80 specifications
- ProcessorIntel® Xeon®
- Memory16 GB
- Storage0 GB
- Processor manufacturerIntel
- Maximum storage capacity92.16 TB
- Wi-FiNo
Overview
- Processor
- Intel® Xeon®
- Memory
- 16 GB
- Storage
- 0 GB
- Processor manufacturer
- Intel
- Maximum storage capacity
- 92.16 TB
- Wi-Fi
- No
- Brand
- Lenovo
- Category
- Server
- Model
- SD530
- Part numbers
- 7X21A03EEA, 7X21A03VEA, 7X21A03SEA, 7X21A03NEA, 7X21A03DEA, 7X21A03BEA +2 more
- EAN / UPC
- 889488488360
- Also known as
- Lenovo ThinkSystem SD530 server 0 GB Rack (1U) Intel® Xeon® 6142 2.6 GHz 16 GB DDR4-SDRAM
Specifications
80 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor model | 6142 |
| Processor frequency | 2.6 GHz |
| Processor boost frequency | 3.7 GHz |
| Processor cores | 16 |
| Processor cache | 22 MB |
| Motherboard chipset | Intel® C624 |
| Memory channels supported by processor | Hexa |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 150 W |
| Processor cache type | L3 |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Maximum number of PCI Express lanes | 48 |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Processor code | SR3AY |
| Processor codename | Skylake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 76.0 x 56.5 mm |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 32 |
| Scalability | S4S |
| Stepping | H0 |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Tcase | 85 °C |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 16 |
| Maximum internal memory | 1 TB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 92.16 TB |
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| Number of HDDs supported | 4 |
| Supported HDD sizes | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10, 50, JBOD |
| Supported RAID controllers | 530-8i |
| Hot-swap | Yes |
| Optical drive type | No |
| Supported storage drive interfaces | SAS-3, Serial ATA III |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet LAN | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Rack mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Performance management | XClarity Enterprise |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows Server 2016, 2012 R2, Red Hat Enterprise Linux 6/7 x64, SUSE Linux Enterprise Server 11/12 x64, VMware ESXi 6.0/6.5 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 120487 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating altitude | 0 - 3048 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 222 mm |
| Depth | 562 mm |
| Height | 41 mm |
