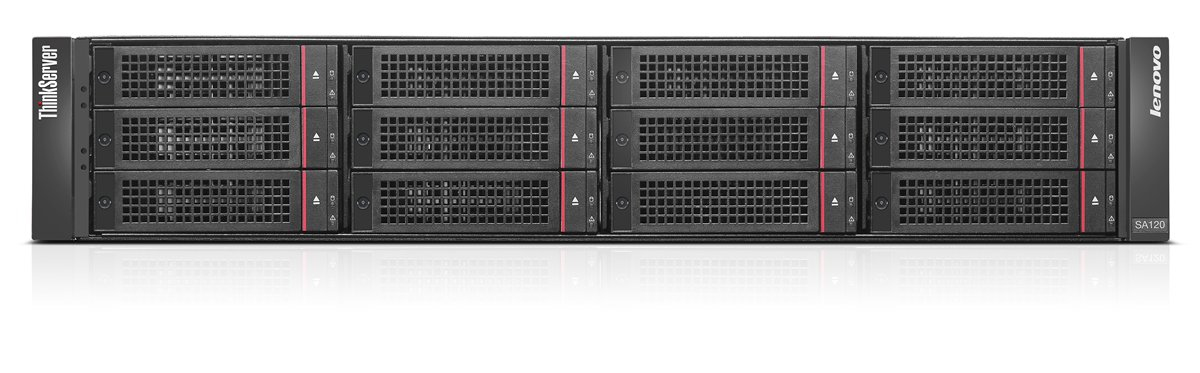

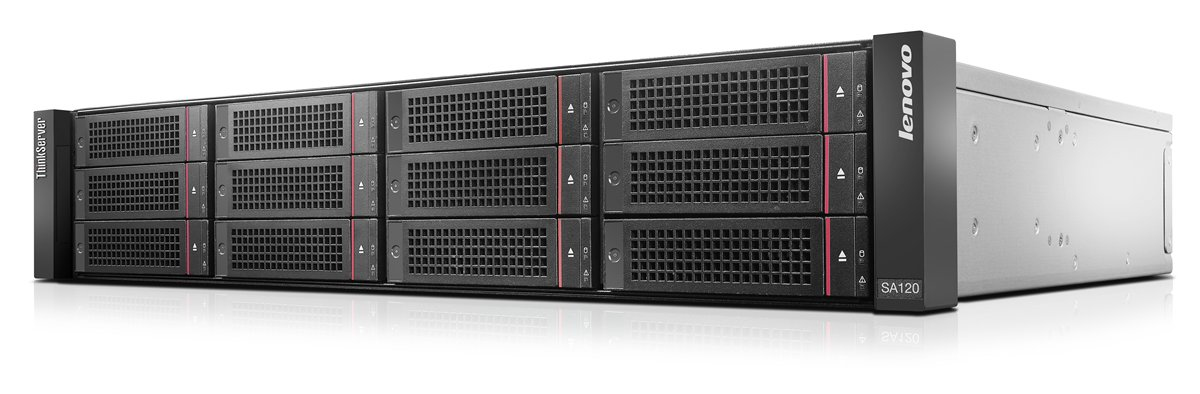

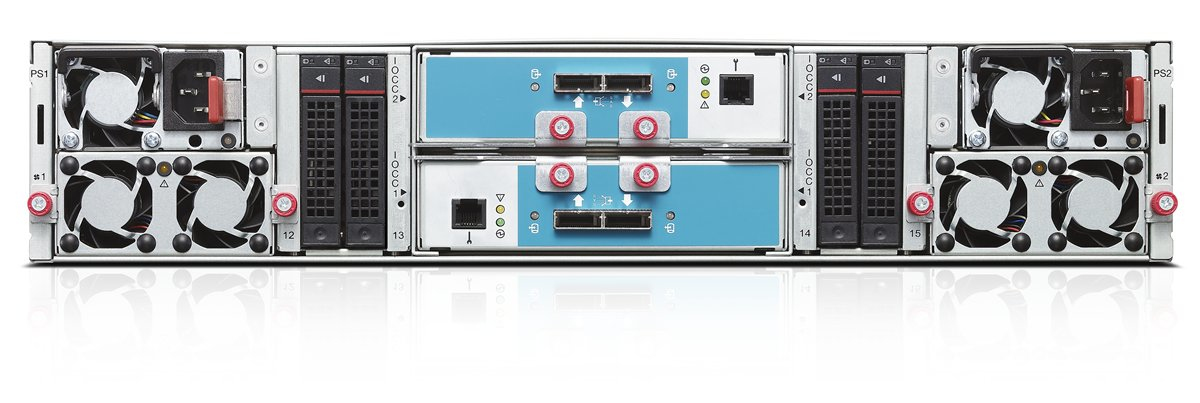

Lenovo ThinkServer SA120 server
48 TB Rack 550 W
Model SA120Part no. 70F00003UXEAN 888440550107
27 specifications
- Storage48 TB
- OSNo
- Weight22 kg
- Number of processors installed0
- Chassis typeRack
- Redundant power supply (RPS) supportYes
Overview
- Storage
- 48 TB
- OS
- No
- Weight
- 22 kg
- Number of processors installed
- 0
- Chassis type
- Rack
- Redundant power supply (RPS) support
- Yes
- Brand
- Lenovo
- Category
- Server
- Model
- SA120
- Part number
- 70F00003UX
- EAN / UPC
- 888440550107, 8884405501070
- Also known as
- Lenovo ThinkServer SA120 server 48 TB Rack 550 W
Specifications
27 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Number of processors installed | 0 |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 48 TB |
| Number of HDDs installed | 12 |
| HDD capacity | 4 TB |
| HDD interface | Serial Attached SCSI (SAS) |
| HDD size | 3.5" |
| Hot-swap | Yes |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack |
| Rack rails | Yes |
| Redundant fans support | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 550 W |
| Number of redundant power supplies supported | 1 |
| Number of main power supplies | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 8 - 80% |
| Operating altitude | 0 - 3048 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482.6 mm |
| Depth | 394.1 mm |
| Height | 86.6 mm |
| Weight | 22 kg |
