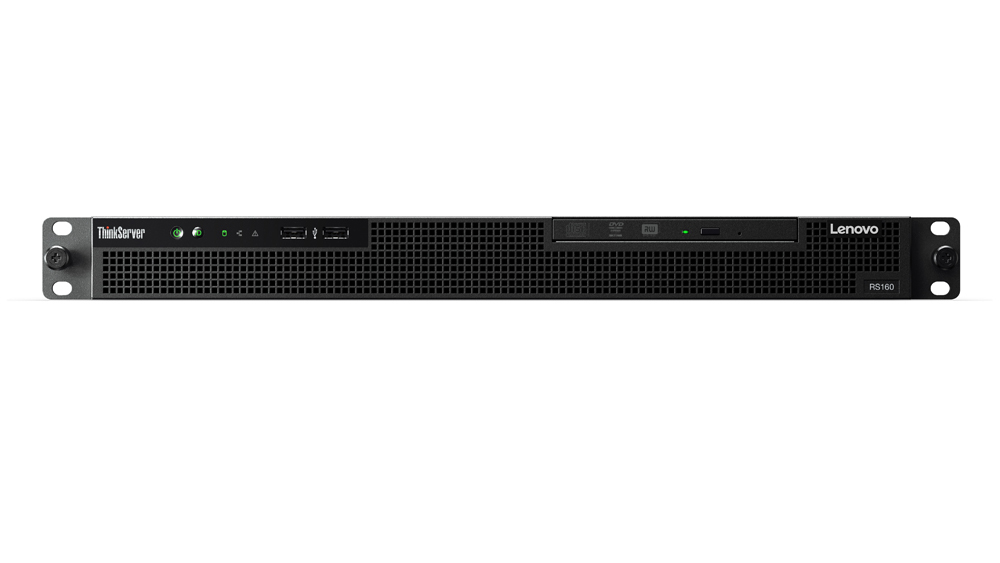

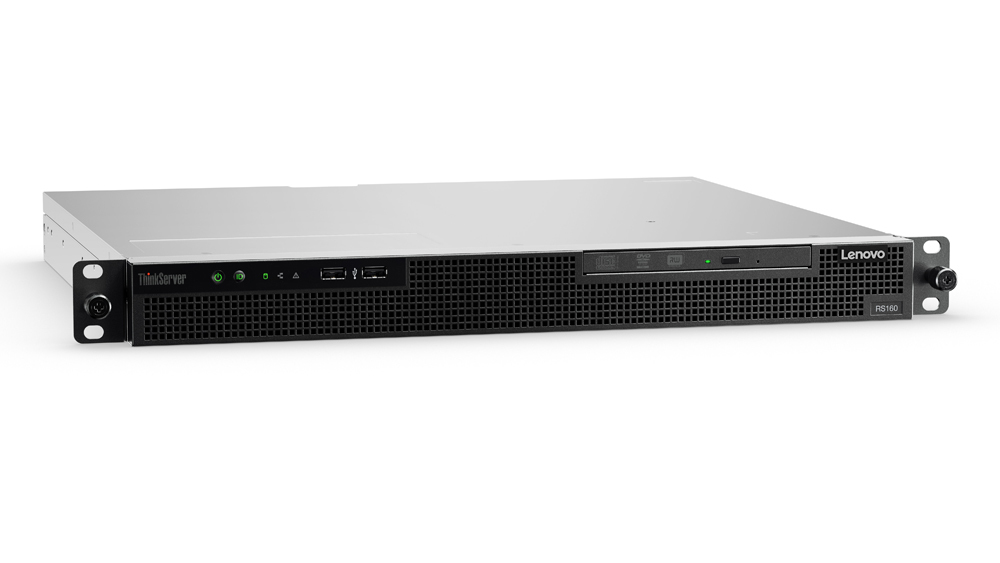

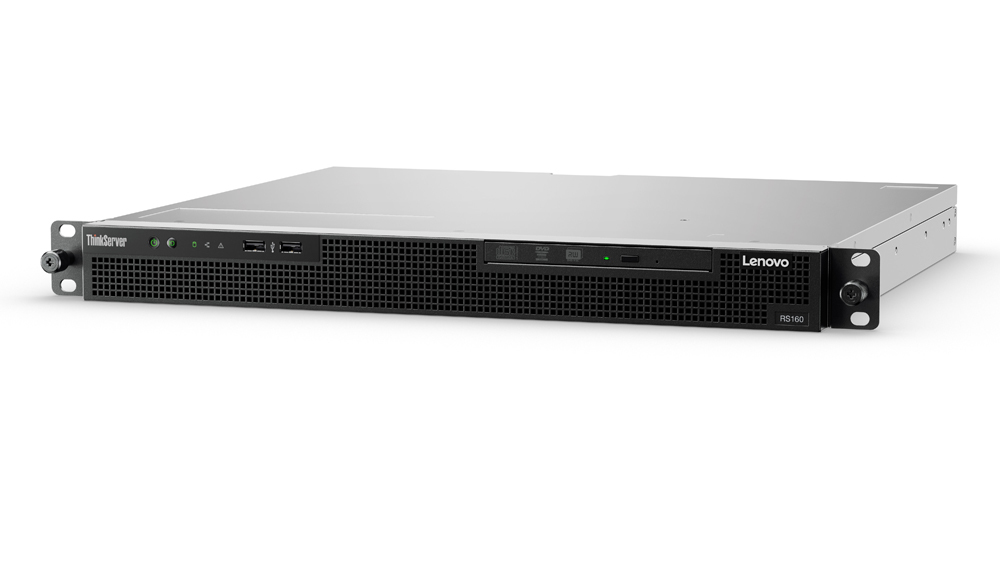

Lenovo ThinkServer RS160 server

0 GB Rack (1U) Intel® Xeon® E3 v5 E3-1220V5 3.4 GHz 8 GB DDR4-SDRAM 300 W

Model RS160Part no. 70TG002SEAEAN 191200556760

107 specifications

ProcessorIntel® Xeon® E3 v5
Memory8 GB
Storage0 GB
OSNo
Processor manufacturerIntel
On-board graphics cardYes

See all specifications

Overview

Processor: Intel® Xeon® E3 v5
Memory: 8 GB
Storage: 0 GB
OS: No
Processor manufacturer: Intel
On-board graphics card: Yes

Brand: Lenovo
Category: Server
Model: RS160
Part numbers: 70TG002SEA, 70TER001EA, 70TER002EA, 70TER003EA, 70TGR002EA, 70TGR003EA +34 more
EAN / UPC: 191200556760, 889488194711, 889488194698, 889488194575 +41 more
Also known as: Lenovo ThinkServer RS160 server 0 GB Rack (1U) Intel® Xeon® E3 v5 E3-1220V5 3.4 GHz 8 GB DDR4-SDRAM 300 W

Specifications

107 specifications in 16 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 v5
Processor model	E3-1220V5
Processor frequency	3.4 GHz
Processor boost frequency	3.8 GHz
Processor cores	4
Processor cache	8 MB
Motherboard chipset	Intel® C232
Memory channels supported by processor	Dual
Number of processors installed	1
Thermal Design Power (TDP)	80 W
Processor cache type	Smart Cache
System bus rate	8 GT/s
Bus type	QPI
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Maximum internal memory supported by processor	64 GB
Maximum number of PCI Express lanes	16
Memory bandwidth supported by processor (max)	34.1 GB/s
Memory clock speeds supported by processor	1333,1600,1866,2133 MHz
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory voltage supported by processor	1.35 V
PCI Express configurations	1x16, 1x8+2x4, 2x8
Processor code	SR2LE
Processor codename	Skylake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon E3-1200 v5
Processor socket	LGA 1151 (Socket H4)
Processor threads	8
Scalability	1S
Stepping	R0
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
ECC	Yes
Memory clock speed	2133 MHz
Memory layout (slots x size)	1 x 8 GB
Memory slots	4x DIMM
Maximum internal memory	64 GB

Storage

Specification	Value
Total storage capacity	0 GB
Number of HDDs installed	0
Number of HDDs supported	4
Supported HDD sizes	2.5"
RAID support	Yes
RAID levels	0, 1, 5, 10
Supported RAID controllers	121i
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card model	Aspeed AST2400
Number of displays supported (on-board graphics)	0
Maximum graphics card memory	16 MB

Network

Specification	Value
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Serial ports quantity	1
VGA (D-Sub) ports quantity	1

Expansion slots

Specification	Value
PCI Express slots version	3.0

Design

Specification	Value
Chassis type	Rack (1U)

Performance

Specification	Value
BIOS type	UEFI

Software

Specification	Value
Operating system installed	No
Compatible operating systems	Windows Server 2016 Windows Server 2012 R2 Windows Server 2012 Windows 10 Pro Red Hat Enterprise Linux 6.7/6.8/7.2 SUSE Linux Enterprise Server 11/12 VMware vSphere (ESXi) 6.0Ub/U2

Processor special features

Specification	Value
CPU configuration (max)	1
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Enhanced Halt State	Yes
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	No
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	88182

Power

Specification	Value
Redundant power supply (RPS) support	No
Power supply	300 W
Number of main power supplies	1

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	8 - 80%
Operating altitude	0 - 3048 m

Weight & dimensions

Specification	Value
Width	438.5 mm
Depth	393.7 mm
Height	43.2 mm

Technical details

Specification	Value
Number of 2.5" bays	4

Other features

Specification	Value
Security features	Power-on password, administrator password
